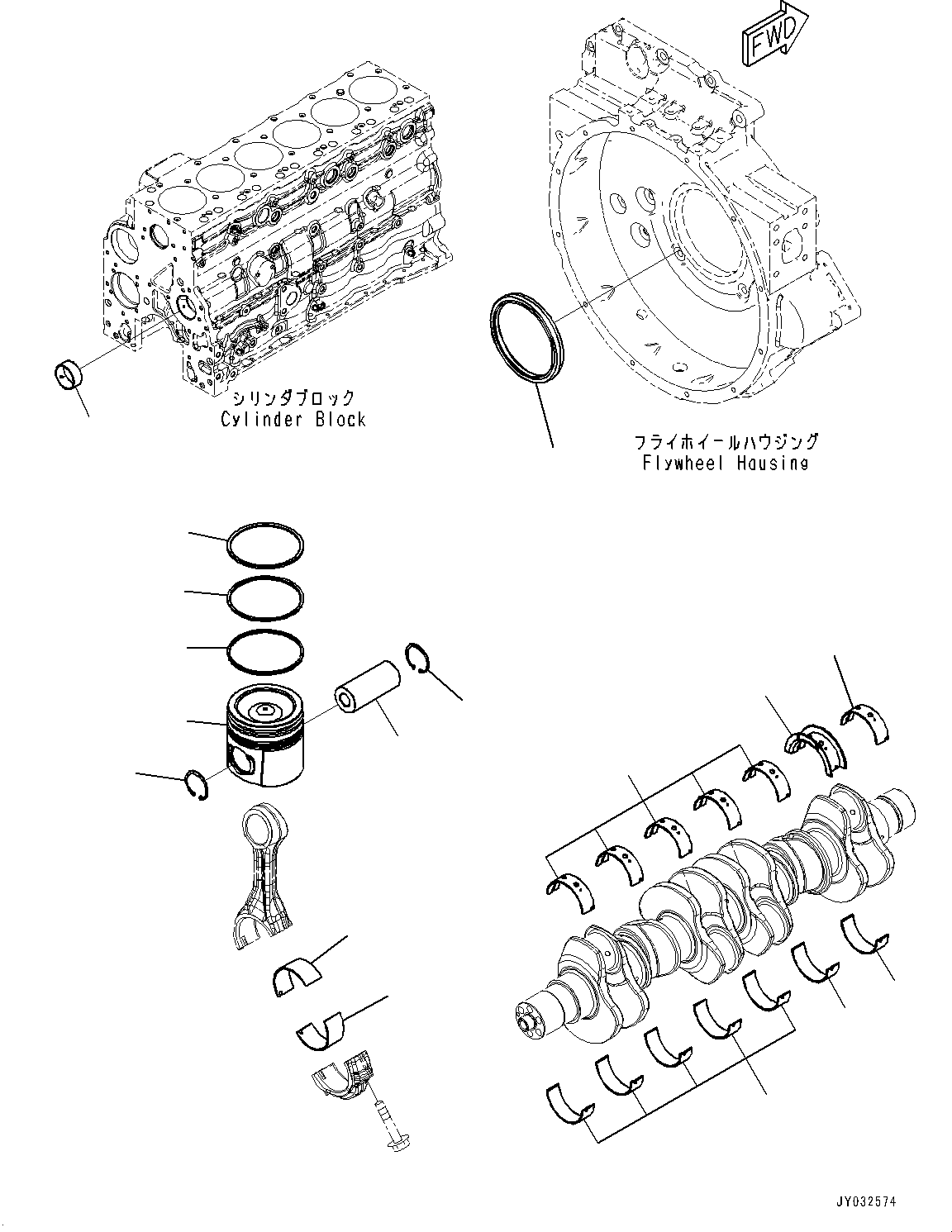

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 6736-29-1410 | Bushing, Camshaft, No.1 | 1 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | 6736-39-1140 | Sleeve, Rear | 1 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | 6754-29-8320 | Bearing Assembly, Main, Undersized 0.25mm | 6 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | • Bearing, Upper | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | • Bearing, Lower | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | 6754-29-8310 | Bearing Assembly, Thrust, Undersized 0.25mm | 1 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | • Bearing, Thrust, Upper | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | • Bearing, Lower | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | 6754-28-8320 | Bearing Assembly, Main, Undersized 0.50mm | 6 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | • Bearing, Upper | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | • Bearing, Lower | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | 6754-28-8310 | Bearing Assembly, Thrust, Undersized 0.50mm | 1 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | • Bearing, Thrust, Upper | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | • Bearing, Lower | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | 6754-27-8320 | Bearing Assembly, Main, Undersized 0.75mm | 6 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | • Bearing, Upper | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | • Bearing, Lower | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | 6754-27-8310 | Bearing Assembly, Thrust, Undersized 0.75mm | 1 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | • Bearing, Thrust, Upper | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | • Bearing, Lower | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | 6754-26-8320 | Bearing Assembly, Main, Undersized 1.00mm | 6 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | • Bearing, Upper | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | • Bearing, Lower | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | 6754-26-8310 | Bearing Assembly, Thrust, Undersized 1.00mm | 1 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | • Bearing, Thrust, Upper | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | • Bearing, Lower | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | 6754-28-8410 | Bearing Assembly, Thrust, T=0.5mm | 1 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | • Bearing, Thrust, Upper | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | • Bearing, Lower | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | 6754-26-8410 | Bearing Assembly, Thrust, T=1.0mm | 1 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | • Bearing, Thrust, Upper | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | • Bearing, Lower | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | 6738-39-3400 | Bearing, Lower, Undersized 0.25mm | 6 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | 6738-38-3400 | Bearing, Lower, Undersized 0.50mm | 6 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | 6738-37-3400 | Bearing, Lower, Undersized 0.75mm | 6 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | 6738-36-3400 | Bearing, Lower, Undersized 1.00mm | 6 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | 6755-39-2091 | Piston Kit, Oversize 0.50mm | 6 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | • Ring | 2 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | • Pin | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | • Ring Assembly, Piston | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | • • Ring, Top | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | • • Ring, Second | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | • • Ring, Oil | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | • Piston | 1 | SN: 26601326- KIT-FLAG: _- SCC: C1 SERIALNO: 26601326- |
||||
| ? | 6754-32-3420 | Bearing, Upper, Undersized 0.25mm | 6 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | 6754-32-3430 | Bearing, Upper, Undersized 0.50mm | 6 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | 6754-32-3440 | Bearing, Upper, Undersized 0.75mm | 6 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
|||
| ? | 6754-32-3450 | Bearing, Upper, Undersized 1.00mm | 6 | SN: 26601326- KIT-FLAG: _- SCC: SERIALNO: 26601326- |
