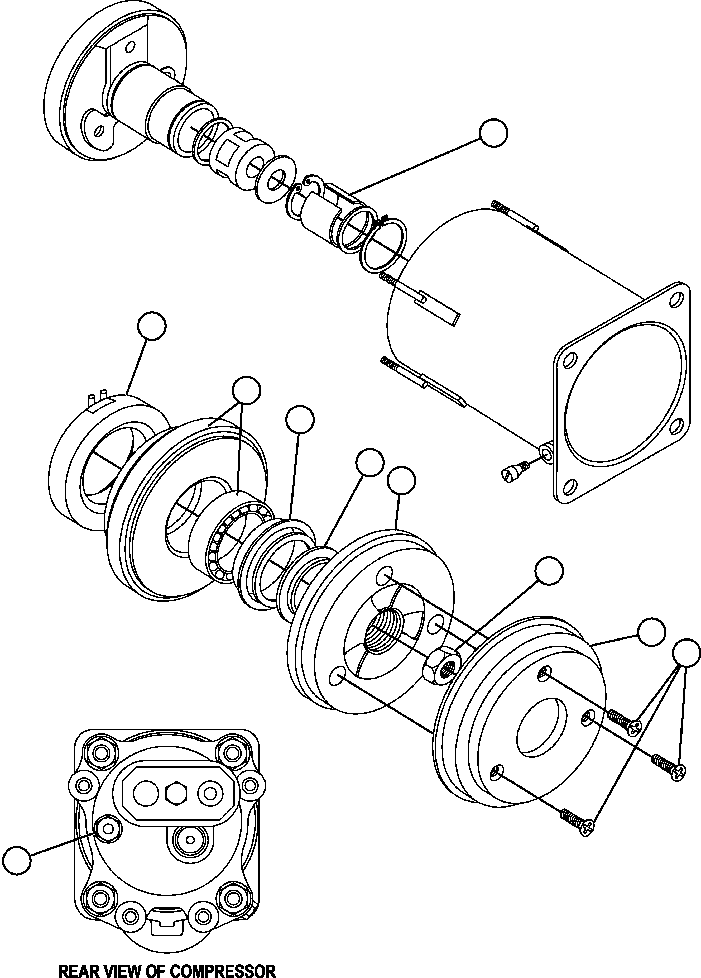

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | SLEEVE, SEAL (1)/(2) | 1 | |||||
| ? | CLUTCH COIL (1) | 1 | |||||
| ? | PULLEY & BERING (1)/(3)/(6)/(8) | 1 | |||||
| ? | SEAL, RETAINER (1)/(2) | 1 | |||||
| ? | SEAL, BEARING (1)/(2) | 1 | |||||
| ? | CLUTCH DRIVE W/ KEY (1)/(3)/(5) | 1 | |||||
| ? | SHAFT LOCK NUT (1)/(3)/(5)/(6) | 1 | |||||
| ? | DUST COVER (1)/(7) | 1 | |||||
| ? | MACHINE SCREW (1)/(7) | 3 | |||||
| ? | HIGH PRESSURE RELIEF VALVE & O-RING (1)/(4) | 1 | |||||
| ? | NOTE:(NS=NOT SHOWN) | ||||||
| ? | SEAL, BEARING (1)/(2) | 1 | |||||
| ? | O-RING (1)/(2) | 1 | |||||
| ? | RETAINING RING - COIL (1)/(3) | 1 | |||||
| ? | EL5550 | OIL, REFRIGERANT - 8 OZ. | 2 | ||||
| ? | NOTE: (1) NOT SERVICED SEPARATELY. | ||||||
| ? | (2) INCLUDED IN XA3357 SEAL KIT. | ||||||
| ? | (3) INCLUDED IN XA3365 CLUTCH & PULLEY KIT. | ||||||
| ? | (4) INCLUDED IN XA3351 HIGH PRESSURE RELIEF VALVE | ||||||
| ? | & O-RING KIT. | ||||||
| ? | (5) INCLUDED IN XA3354 CLUTCH DRIVER KIT. | ||||||
| ? | (6) INCLUDED IN XA3366 PULLEY & BEARING KIT. | ||||||
| ? | (7) INCLUDED IN XA3364 DUST COVER KIT. | ||||||
| ? | (8) REPLACEMENT OF THIS COMPONENT REQUIRES | ||||||
| ? | PURCHASE OF XA3357 SEAL KIT. |
