Содержание Dump Trucks Komatsu AFE47-DL 730E S/N A30385 LOMAS BAYAS(AFE47-DL)

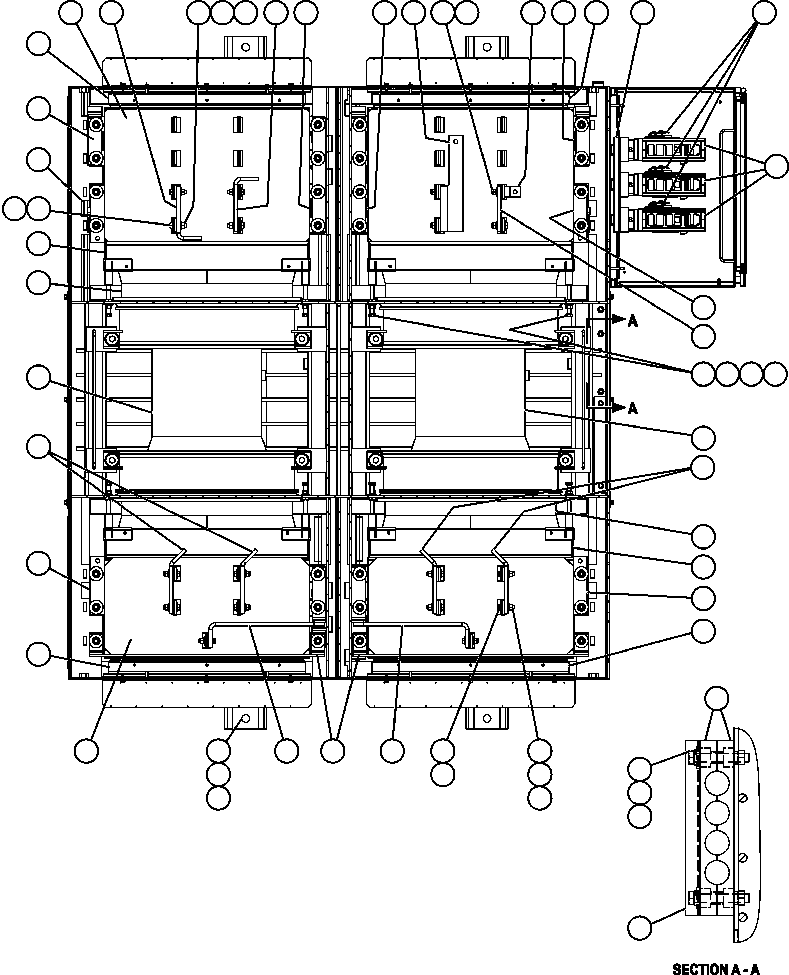

RETARDING GRID ASSEMBLY - 7 STEP (PC1546)(558 : 64247)
Наименование Страница Код страницы
BLOWER MOTOR (COMMUTATOR END) (GE0017) 566 64000
POSITION SENSOR INTERLOCK (VE3530) 492 64035
CONTACTOR - GF & MF (VE1317) 496 64069

Номер на схеме Каталожный номер Название Количество Детали
? GE0671 FRAME ASSEMBLY 4
? XA2758 SHIELD 2
? XA2749 BUS BAR - 1/2" THICK 2
? GE0041 WASHER
? VE4699 LOCKWASHER - 1/2"
? VE4698 NUT
? XA2751 BUS BAR - 3/8" THICK 2
? XA2744 BUS BAR - 1/2" THICK 1
? VE5061 CAPSCREW 1
? XA2750 BUS BAR - 1/2" THICK 1
? XA2752 BUS BAR - 3/8" THICK 2
? XA2760 SHIELD, INSULATION 4
? BF4452 MODULE 3
? PB6137 CONTACTOR ASSEMBLY 3
? VE1317 • CONTACTOR - GF & GFR (SEE INDEX) 3 64069
? VE3530 • INTERLOCK (SEE INDEX) 3 64035
? XA2747 BUS BAR - 1/2" THICK 4
? XA2756 BUS BAR - 1/2" THICK 1
? PB8167 CAPSCREW - 1/2" - 13NC X 6-1/2"
? VE4519 FLAT WASHER - 1/2"
? GE0017 MOTOR, BLOWER (SEE INDEX) 1 64000
? XA2748 BUS BAR - 1/2" THICK 4
? GE0018 DIFFUSER ASSEMBLY 4
? GE0019 • GASKET 8
? GE0020 • GASKET 8
? VJ2672 • CEMENT
? GE0021 COLLAR ASSEMBLY 4
? VE4599 CAPSCREW - 1/2" - 13NC X 2"
? XA2753 BUS BAR - INSULATED 1
? XA2755 BUS BAR - INSULATED 2
? XA2754 BUS BAR - INSULATED 1
? XA2757 SHIELD 2
? XA2742 CLEAT, SUPPORT 1
? VC1390 LOCKWASHER - 5/8" 1
? GE0042 WASHER
? XA2743 CLEAT - 4 SLOT 1
? MM0164 CAPSCREW - M20 X 2.50 X 160 8
? 01643-32060 FLAT WASHER 16
? MM0697 LOCKNUT - M20 X 2.50 8
