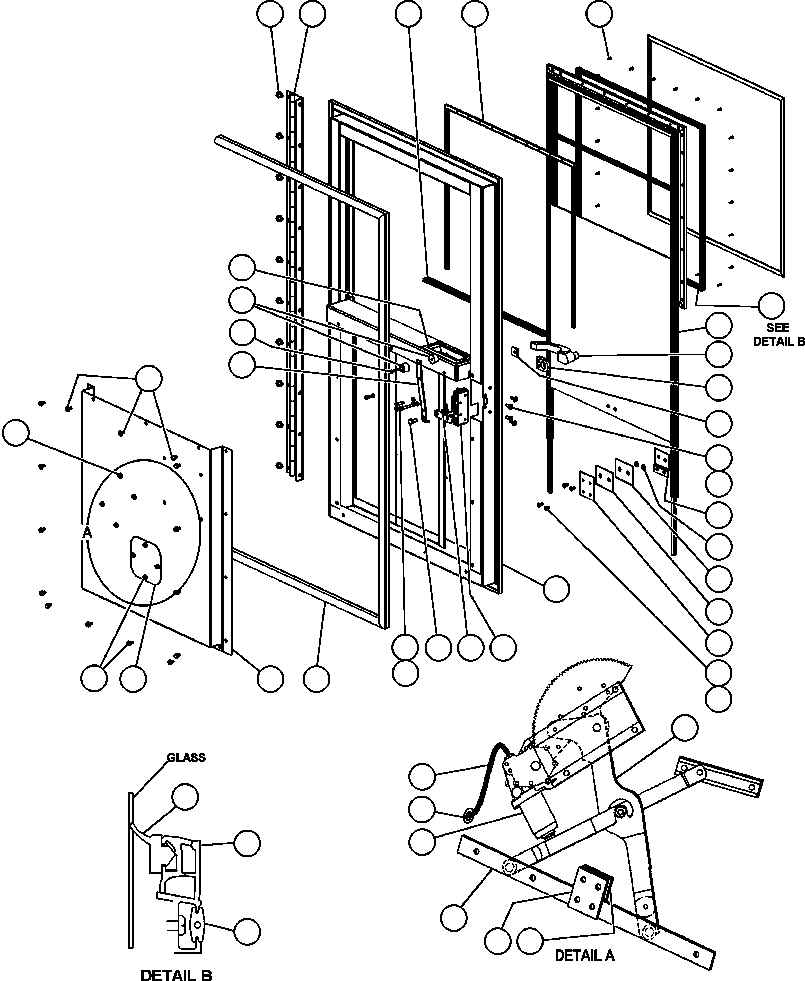

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 31127R1 | CAPSCREW - M6 X 12 | 22 | ||||
| ? | SM0926 | SCREW, PANEL | 3 | ||||
| ? | SM2294 | COVER, INNER ACCESS (1) | 1 | ||||
| ? | SM2405 | SEAL, WINDOW (INSIDE) | 1 | ||||
| ? | SM2548 | SEAL, DOOR | 1 | ||||
| ? | SM2271 | FRAME, DOOR - L.H. | 1 | ||||
| ? | TV6025 | CAPSCREW - 1/4" - 20NC X 1 1/2" | 1 | ||||
| ? | VN2882 | JAM NUT | 1 | ||||
| ? | KD0252 | MACHINE SCREW | 4 | ||||
| ? | SD4235 | LOCKWASHER - 1/4" (EXTERNAL TOOTH) | 4 | ||||
| ? | SM2300 | BUSHING, NYLON | 2 | ||||
| ? | SM2261 | GASKET | 1 | ||||
| ? | SM2260 | GASKET | 1 | ||||
| ? | PC0841 | WINDOW ASSEMBLY | 1 | ||||
| ? | SM2265 | • GLASS | 1 | ||||
| ? | BF5190 | • RUN, GLASS - TOP | 1 | ||||
| ? | BF5191 | • RUN, GLASS - SIDE | 2 | ||||
| ? | BF5189 | • BOTTOM FRAME ASSEMBLY | 1 | ||||
| ? | BF5194 | • • SEAL, OUTSIDE - RUBBER FLOCK | 1 | ||||
| ? | BF2744 | • COVER, SCREW | 1 | ||||
| ? | SM2406 | SCREW, SELF-TAPING - #6 X 32NC | 22 | ||||
| ? | 2048889R1 | TRIM | |||||
| ? | SM2255 | HANDLE, PUSH BUTTON | 1 | ||||
| ? | SM2258 | SPACER, DOOR HANDLE | 1 | ||||
| ? | SM2257 | SPACER, DOOR HANDLE | 1 | ||||
| ? | SM2544 | HINGE, DOOR | 1 | ||||
| ? | 31154R1 | CAPSCREW - M8 X 12 | 10 | ||||
| ? | SM2297 | LATCH DOOR ASSEMBLY - L.H. | 1 | ||||
| ? | SM2263 | LEVER, DOOR LATCH | 1 | ||||
| ? | SM2264 | KNOB, DOOR LATCH LEVER | 2 | ||||
| ? | SM2354 | SCREW - #10 - 24NC | 1 | ||||
| ? | SM2355 | NUT, LOCKING - #10 - 24NC | 1 | ||||
| ? | TC1234 | CAPSCREW - 3/8" - 16NC X 3/4" | 1 | ||||
| ? | TG9225 | NUT, LOCKING - 3/8" | 1 | ||||
| ? | SM2744 | INNER PANEL ASSEMBLY - L.H. | 1 | ||||
| ? | SM2738 | • PANEL, INNER - L.H. | 1 | ||||
| ? | SM5390 | • INSULATION, PANEL - L.H. | 1 | ||||
| ? | SM2740 | • WINDOW REGULATOR ASSEMBLY - L.H. | 1 | ||||
| ? | • • MOTOR - L.H. (NOT SERVICED SEPARATELY) | 1 | |||||
| ? | XA2020 | • ADAPTER, HARNESS | 1 | ||||
| ? | SM2832 | • BRACKET, WINDOW LIFT (INNER) | 1 | ||||
| ? | SM2833 | • BRACKET, WINDOW LIFT (OUTER) | 1 | ||||
| ? | SL9490 | • GROMMET | 1 | ||||
| ? | SM3010 | • HARNESS, POWER WINDOW | 1 | ||||
| ? | SM5832 | • GUIDE, WINDOW | 1 | ||||
| ? | MM0357 | • SCREW, MACHINE - M6 X 1.00 X 12 | 4 | ||||
| ? | MM0207 | • LOCKWASHER - M6 | 4 | ||||
| ? | NOTE: NS = NOT SHOWN | ||||||
| ? | SM2256 | KEY, DOOR | 1 | ||||
| ? | NOTE: (1) INCLUDED IN SM2744 INNER PANEL ASSEMBLY. | ||||||
| ? | SEE ITEM 32. |
