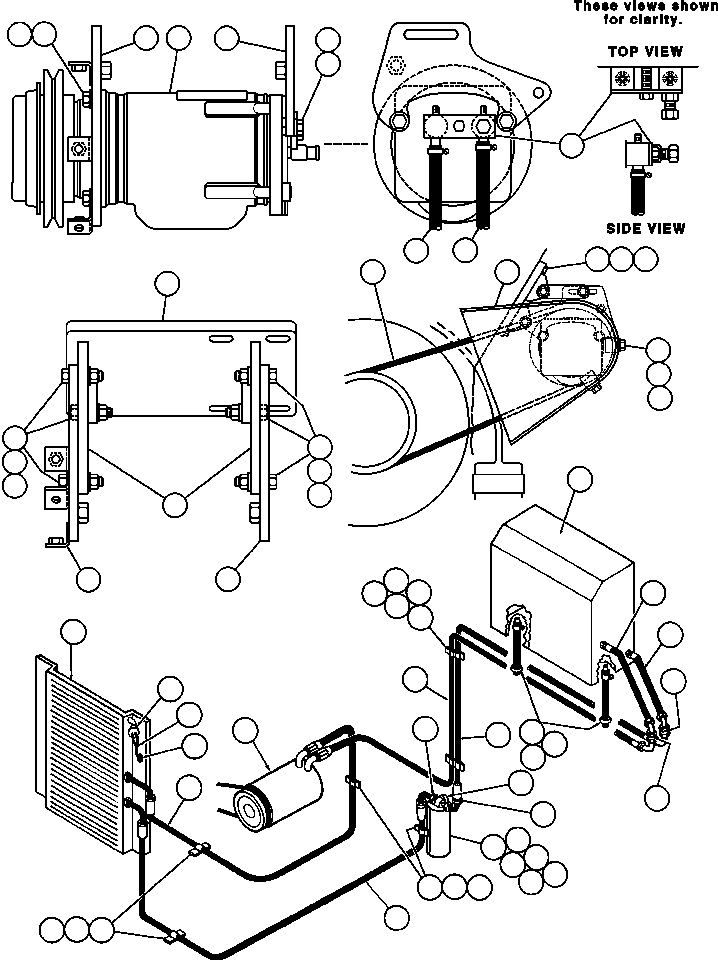

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
TY9665 |
CONDENSER MOUNTING ASSM (SEE FIG 14507) |
1 |
|
14507 |
|
|
? |
VY8908 |
SWITCH, HIGH PRESSURE (SUPPLIED W/CONDENSER) |
1 |
|
|
|
|
? |
TZ8522 |
HARNESS |
1 |
|
|
|
|
? |
VN7967 |
GROMMET |
1 |
|
|
|
|
? |
HA6930 |
HOSE |
1 |
|
|
|
|
? |
HA6214 |
HOSE |
1 |
|
|
|
|
? |
PB7618 |
RECEIVER DRIER |
1 |
|
|
|
|
? |
PB2216 |
BRACKET |
1 |
|
|
|
|
? |
WA0192 |
WELD STUD - 1/4" - 20NC X 3/4" |
2 |
|
|
|
|
? |
C5774 |
LOCKWASHER - 1/4" |
2 |
|
|
|
|
? |
C5780 |
NUT - 1/4" - 20NC |
2 |
|
|
|
|
? |
PB7620 |
SWITCH, LOW PRESSURE |
1 |
|
|
|
|
? |
WA1731 |
O-RING |
2 |
|
|
|
|
? |
PB8711 |
AIR COMPRESSOR |
1 |
|
|
|
|
? |
PB7619 |
ADAPTOR |
1 |
|
|
|
|
? |
TN9748 |
HOSE, DRAIN |
1 |
|
|
|
|
? |
CD9705 |
CLAMP |
2 |
|
|
|
|
? |
VP4693 |
GROMMET |
2 |
|
|
|
|
? |
HA6888 |
HOSE |
1 |
|
|
|
|
? |
HA6931 |
HOSE |
1 |
|
|
|
|
? |
VP3642 |
FITTING, BULKHEAD |
1 |
|
|
|
|
? |
WA2563 |
FITTING, BULKHEAD |
1 |
|
|
|
|
? |
HA7181 |
HOSE |
1 |
|
|
|
|
? |
HA7182 |
HOSE |
1 |
|
|
|
|
? |
TF6925 |
CLAMP |
1 |
|
|
|
|
? |
VN9907 |
CLAMP |
11 |
|
|
|
|
? |
TG2568 |
CLAMP |
10 |
|
|
|
|
? |
VH9969 |
WELD STUD - 3/8" - 16NC X 3/4" |
13 |
|
|
|
|
? |
C0312 |
LOCKWASHER - 3/8" |
18 |
|
|
|
|
? |
C1521 |
NUT - 3/8" - 16NC |
14 |
|
|
|
|
? |
PB8388 |
AIR CONDITIONER GROUP (SEE INDEX) |
1 |
|
30644 |
|
|
? |
R2173 |
V-BELT |
1 |
|
|
|
|
? |
TR4090 |
CAPSCREW - 7/16" - 14NC X 1 1/2" |
4 |
|
|
|
|
? |
PB1255 |
FLAT WASHER - 7/16" |
4 |
|
|
|
|
? |
C5775 |
LOCKWASHER - 7/16" |
4 |
|
|
|
|
? |
C1601 |
CAPSCREW - 3/8" - 16NC X 3/4" |
3 |
|
|
|
|
? |
WA0720 |
FLAT WASHER - 3/8" (HARDENED) |
9 |
|
|
|
|
? |
ED1157 |
GUARD, BELT |
1 |
|
|
|
|
? |
ED1026 |
PLATE, MOUNTING |
1 |
|
|
|
|
? |
VN9046 |
CAPSCREW - 3/8" - 16NC X 1 1/2" |
6 |
|
|
|
|
? |
WA0386 |
NUT - 3/8" - 16NC |
6 |
|
|
|
|
? |
ED1154 |
LINK |
2 |
|
|
|
|
? |
ED1162 |
BRACKET, REAR MOUNTING |
1 |
|
|
|
|
? |
ED1161 |
BRACKET, FRONT MOUNTING |
1 |
|
|
|
|
? |
MM0026 |
CAPSCREW - M8 X 1.25 X 25 |
3 |
|
|
|
|
? |
MM0703 |
FLAT WASHER - M8 |
3 |
|
|
|
|
? |
MM0042 |
CAPSCREW - M10 X 1.50 X 25 |
2 |
|
|
|
|
? |
MM0704 |
FLAT WASHER - M10 |
2 |
|
|
|
|
? |
PB7830 |
HOLDDOWN, ADJUSTABLE |
1 |
|
|
|
|
? |
|
NOTE: NS = NOT SHOWN |
|
|
|
|
|
? |
EC2983 |
HOUSING (1) |
1 |
|
|
|
|
? |
VZ3250 |
DIODE (1) |
1 |
|
|
|
|
? |
HC9043 |
DISCONNECT, KNIFE (1) |
1 |
|
|
|
|
? |
ED1164 |
WIRE, CLUTCH - NEGATIVE |
1 |
|
|
|
|
? |
ED1163 |
WIRE, CLUTCH - POSITIVE |
1 |
|
|
|
|
? |
TR1374 |
LOCKWASHER - 1/2" - EXTERNAL TOOTH (USE W/ED1164) |
1 |
|
|
|
|
? |
|
NOTE: (1) CONNECTS TO AIR COMPRESSOR CLUTCH WIRE. |
|
|
|
|
