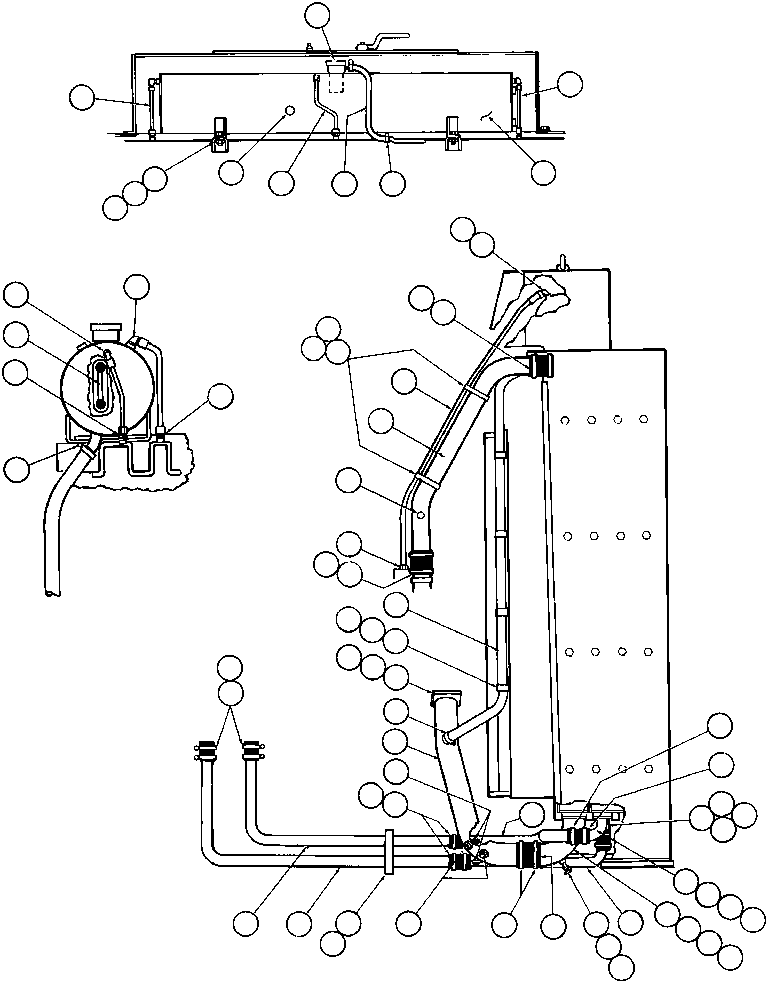

RADIATOR & SURGE TANK PIPING(032 : 40447)
Номер на схеме Каталожный номер Название Количество Детали
? TD5557 • FITTING, TUBE 1
? EC0743 • • HOSE 4
? VN0823 • • CLAMP, T-BOLT 8
? VW7927 • • CLAMP, T-BOLT 12
? EC0744 • • HOSE 6
? TX5451 • • FLANGE 1
? TX5457 • • GASKET, FLANGE 2
? C1614 • • CAPSCREW - 1/2" - 13NC X 1 1/2" 8
? C1540 • • LOCKWASHER - 1/2" 12
? TY3833 • • TUBE 1
? TZ3542 • • ELBOW 1
? TZ4987 • • GASKET 1
? C1603 • • CAPSCREW - 3/8" - 16NC X 1 1/4" 8
? C0312 • • LOCKWASHER - 3/8" 8
? TY3829 • • TUBE 1
? SP3571 • • COCK, DRAIN 2
? WB0468 • • FITTING, STRAIGHT 1
? DA5236 • • HOSE, RADIATOR 1
? VP5644 • • CLAMP, T-BOLT 2
? R2028 • • PLUG, PIPE 2
? ED7590 • • TUBE 1
? WA3560 • • CHANNEL 3
? WA2760 • • CLAMP, TUBE 5
? TZ8581 • • TUBE 1
? TZ8580 • • TUBE 1
? EC5269 • • TUBE 1
? CD9707 • • CLAMP 2
? TY7549 • • HOSE 1
? KC5053 • • FITTING, TUBE 1
? VL9602 • • CLAMP 4
? C1547 • • FLAT WASHER - 3/8" 4
? C1521 • • NUT - 3/8" - 16NC 4
? WB0461 • • FITTING, ADAPTOR 2
? C5771 • • PLUG, PIPE 2
? TA4493 • • HOSE 2
? TY3838 • • TUBE 2
? TF4633 • • FITTING, TUBE 1
? SV7011 • • ADAPTOR 1
? PB7130 • • SIGHT GAGE ASSM 1
? PB5889 • • CAP, RADIATOR 1
? EC1164 • • TUBE 2
? HC0908 • • CLAMP 2
? EC0362 • • HOSE 1
? EC0351 • • TUBE 1
? PB6912 • • SENSOR, COOLANT LEVEL 1
? WA3038 • • ADAPTOR, STRAIGHT 1
? YA2493 • • TANK, SURGE 1
? C1613 • • CAPSCREW - 1/2" - 13NC X 1 1/4" 4
? WA0360 • • FLAT WASHER - 1/2" 4
? VN9907 • • CLAMP 4
? VD6174 • • CLAMP 4
? TF7161 • • FLAT WASHER - 5/16" 4
? VW5680 • • ADAPTOR, TEE 1
? TZ3546 • • GASKET 1
? SF9435 • • PLUG, MAGNETIC 1
? TF6957 • • COCK, DRAIN 1
