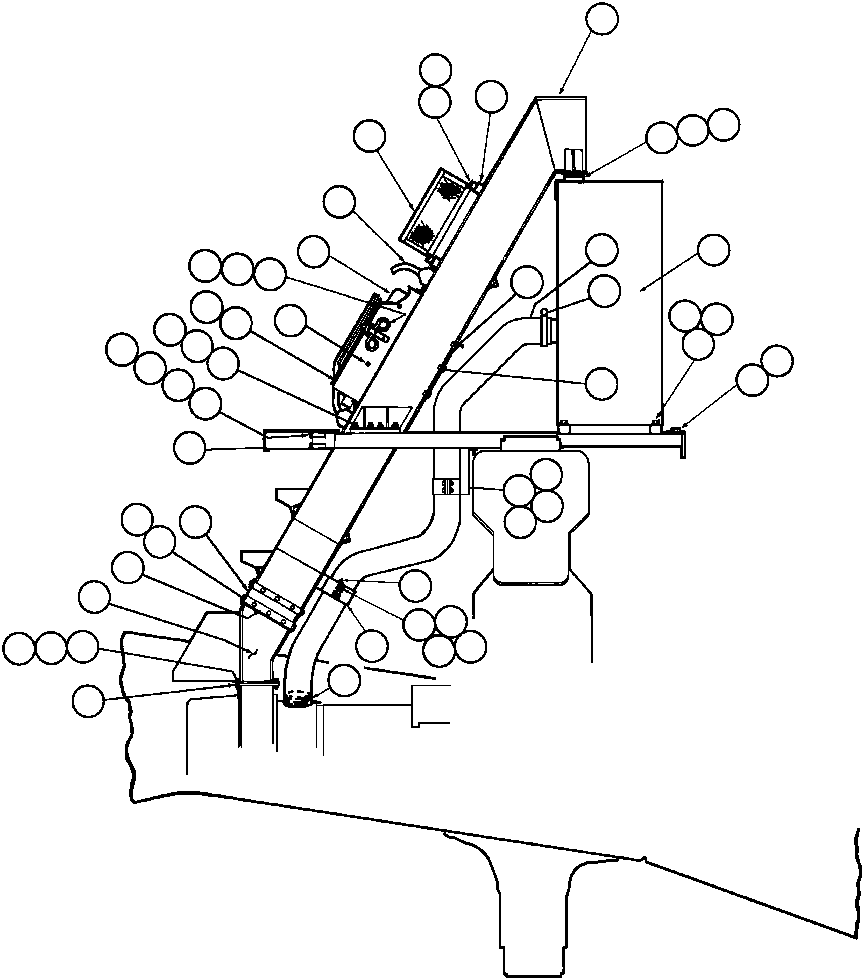

BLOWER INLET & COOLING AIR INSTL(190 : 40652)
Номер на схеме Каталожный номер Название Количество Детали
? EC6159 • DUCT, INLET 1
? TR1376 • • CAPSCREW - 1/2" - 13NC X 1 1/4" 4
? TR6643 • • NUT - 1/2" 5
? EB9014 • • CABINET, CONTROL (SEE FIG. 40564) 1
? WA4689 • • CAPSCREW - 5/8" - 11NC X 3 1/2" 4
? TR9082 • • FLAT WASHER - 5/8" 4
? VC1390 • • LOCKWASHER - 5/8" 4
? C1646 • • CAPSCREW - 3/4" - 10NC X 2 1/2" 2
? WA0362 • • FLAT WASHER - 3/4" 2
? TY0553 • • SEAL, STRIP - TOP & BOTTOM 2
? TY0554 • • SEAL, STRIP - SIDE 2
? TY3398 • • COVER 1
? WA1738 • • LOCKSCREW 6
? TG5720 • • CAPSCREW - 3/8" - 16NC X 1" 8
? WA0720 • • FLAT WASHER - 3/8" 8
? TC1231 • • LOCKWASHER - 3/8" 24
? TD0791 • • CAPSCREW - 3/8" - 16NC X 1 1/4" 10
? TC1233 • • NUT - 3/8" 10
? TK1427 • • GASKET 1
? TY3653 • • TRANSITION 1
? TY3656 • • BAR 4
? TY3655 • • BOOT 1
? JG9620 • • BAR 4
? WA4497 • • CAPSCREW, SELF-TAPPING 32
? WA4728 • • FLAT WASHER - 1/2" - (HARDENED) 8
? C1651 • • CAPSCREW - 3/4" - 10NC X 3 3/4" 4
? C1542 • • LOCKWASHER - 3/4" 4
? TZ7603 • • DECK - REAR CENTER 1
? TC1234 • • CAPSCREW - 3/8" - 16NC X 3/4" 2
? PB6489 • • RECTIFIER 1
? VS7026 • • COVER, LATCH 1
? VF2231 • • MACHINE SCREW - #10 2
? DC3101 • • LOCKWASHER - #10 2
? C1527 • • NUT - 3/4" 4
? TY8668 • • HANDRAIL - R.H. 1
? TY8667 • • HANDRAIL - L.H. 1
? PB5066 • • PANEL, FILTER (SEE FOLLOWING PG) 1
? TX2730 • • BRACKET 4
? WA1060 • • CLAMP, T-BOLT 2
? TY8672 • • HOSE, AIR 1
? TZ1189 • • U-CLAMP 1
? EC9207 • • U-CLAMP 1
? VC4898 • • CAPSCREW - 1/2" - 13NC X 2 1/2" 1
? TR5445 • • LOCKWASHER - 1/2" 1
