Содержание Dump Trucks Komatsu AFE62-S 930E-4SE S/N A31016, A31018 & A31020 COLLAHUASI(AFE62-S)

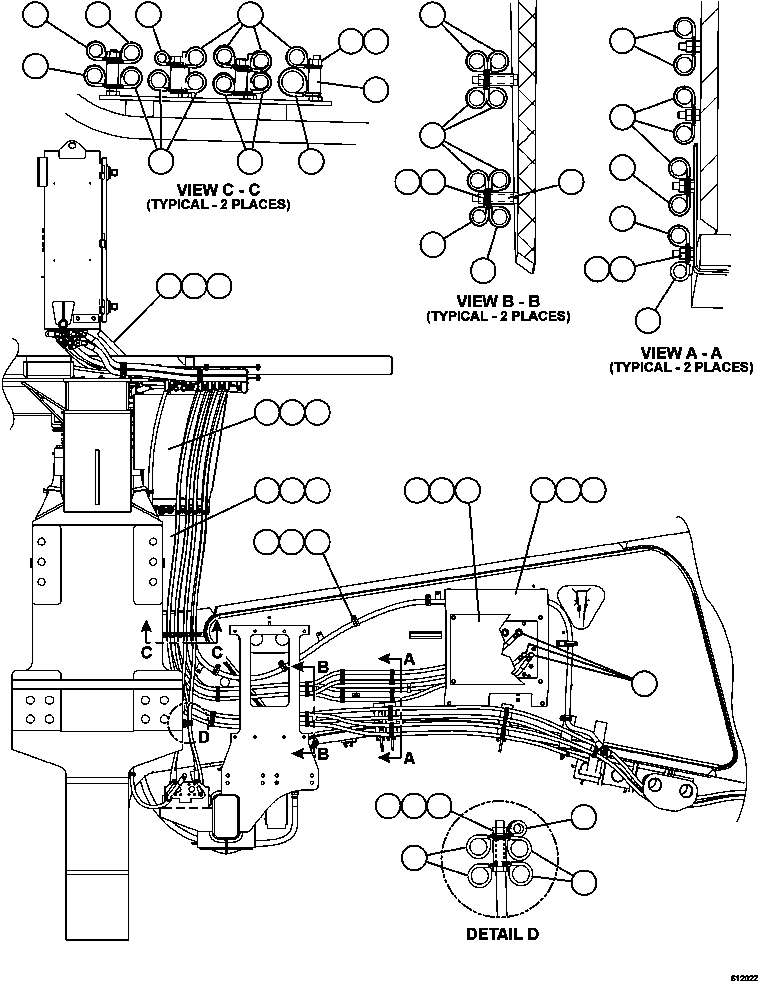

HYDRAULIC BRAKE CABINET HOSE ROUTING 3/3(500 : 61202)
Номер на схеме Каталожный номер Название Количество Детали
? EM4417 SHIELD 1
? EM4401 SHIELD 1
? EM4404 SHIELD 1
? EJ3626 SHIELD 1
? EM4419 COVER 1
? MM0605 CAPSCREW - M10 X 1.50 X 25 20
? MM0461 FLAT WASHER - M10
? MM0178 NUT - M10 X 1.50
? WB3096 CLAMP, CUSHIONED - 1 1/4"
? WB3092 CLAMP, CUSHIONED - 7/8"
? WB1300 CLAMP, CUSHIONED - 5/8"
? WB1303 CLAMP, CUSHIONED - 3/4"
? TY8375 SPACER
? WB3097 CLAMP, CUSHIONED - 1/2"
? WB0375 FITTING, ELBOW - 90 DEG 3

Dump Trucks Komatsu / AFE62-S 930E-4SE S/N A31016, A31018 & A31020 COLLAHUASI(AFE62-S) / HYDRAULIC BRAKE CABINET HOSE ROUTING 3/3(500 : 61202)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
