Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |

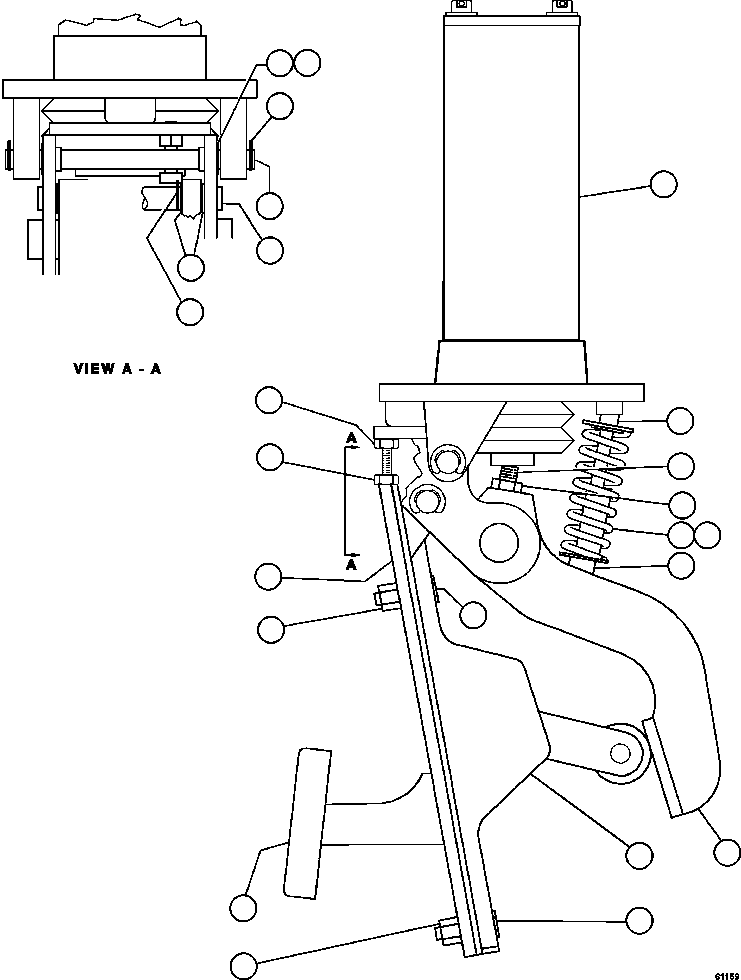

XA2704 |
VALVE SUB-ASSEMBLY (SEE INDEX) |
1 |
|
55112 |
|
|
? |
BF2584 |
CAPSCREW |
3 |
|
|
|
|
? |
BF2588 |
NUT |
2 |
|
|
|
|
? |
BF2582 |
FOOT PAD, RUBBER |
1 |
|
|
|
|
? |
BF2587 |
PEDAL ASSEMBLY (ACTUATOR) |
1 |
|
|
|
|
? |
BF2585 |
NUT |
1 |
|
|
|
|
? |
XA3393 |
PIN, PEDAL |
1 |
|
|
|
|
? |
BF1858 |
BEARING, FLANGED (NYLON) |
6 |
|
|
|
|
? |
VE8835 |
RING, RETAINING |
2 |
|
|
|
|
? |
XA3392 |
PEDAL ASSEMBLY |
1 |
|
|
|
|
? |
XA3394 |
PEDAL ASSEMBLY (ELECTRONIC) |
1 |
|
|
|
|
? |
|
STOP, BOTTOM PIVOT (1) |
1 |
|
|
|
|
? |
VE8538 |
NUT |
1 |
|
|
|
|
? |
BF1854 |
BOLT |
1 |
|
|
|
|
? |
|
STOP, TOP PIVOT (1) |
1 |
|
|
|
|
? |
BF1857 |
SHIM |
|
|
|
|
|
? |
|
SPRING, INNER (1) |
1 |
|
|
|
|
? |
|
SPRING, OUTER (1) |
1 |
|
|
|
|
? |
XA3389 |
PIN, ACTUATOR |
1 |
|
|
|
|
? |
XA3395 |
RING, RETAINING |
2 |
|
|
|
|
? |
XA3458 |
NOTE: (1) INCLUDED IN XA3458 DUAL SPRING KIT. |
|
|
|
|
