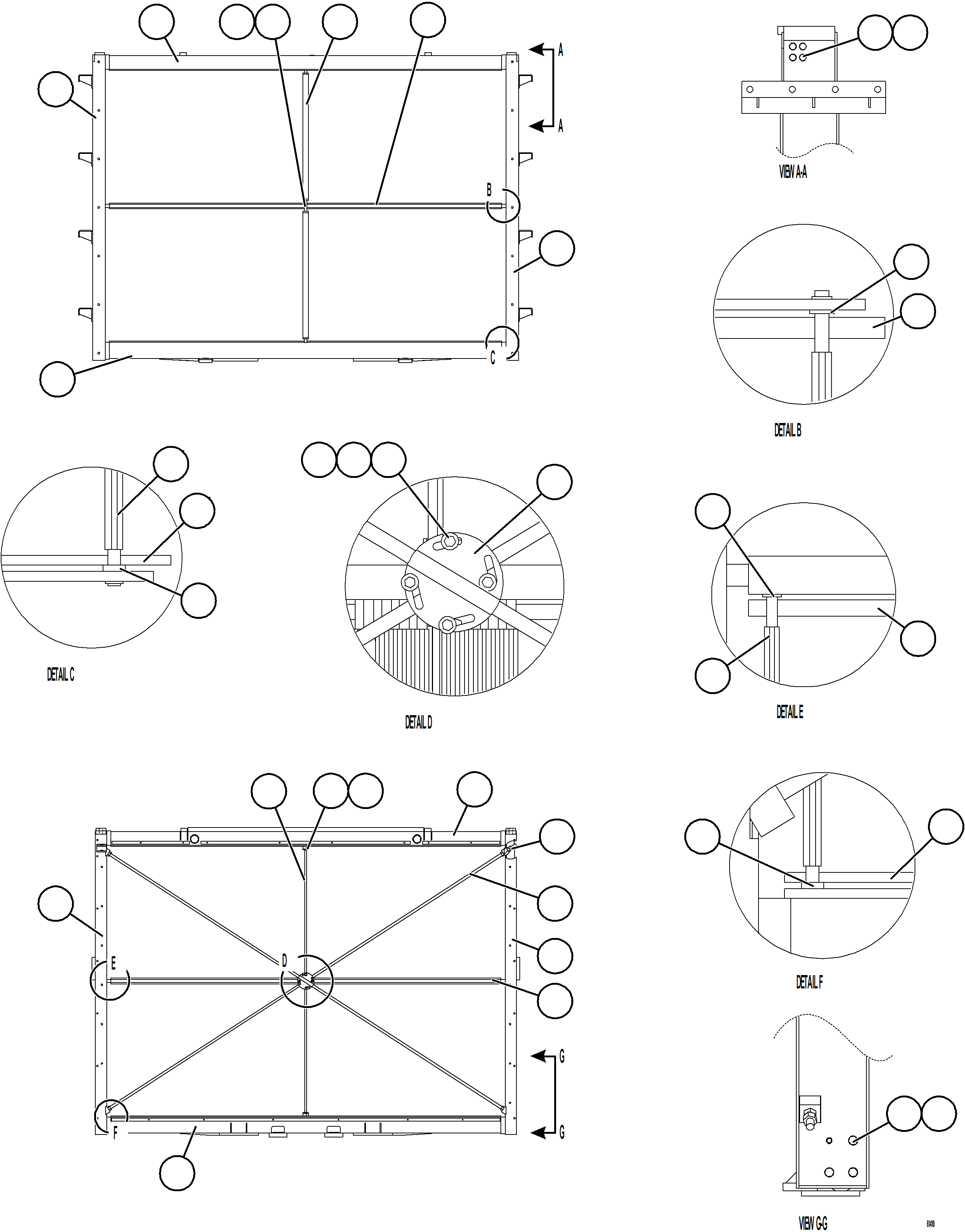

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 58C-03-10120 | RADIATOR, JACKET WATER (HTC) | 1 | ||||
| ? | 58C-03-10340 | • TANK | 1 | ||||
| ? | 58C-03-10350 | • TANK, CENTER | 1 | ||||
| ? | 58C-03-10360 | • TANK | 1 | ||||
| ? | 58C-03-10380 | • MEMBER, SIDE | 1 | ||||
| ? | 58C-03-10370 | • MEMBER, SIDE | 1 | ||||
| ? | 58C-03-10410 | • SUPPORT, CENTER | 2 | ||||
| ? | C1540 | • LOCKWASHER - 1/2" | 20 | ||||
| ? | VE3460 | • CAPSCREW - 1/2" - 13NC X 1" | 20 | ||||
| ? | VE8559 | • LOCKWASHER - 3/8" | 8 | ||||
| ? | C1602 | • CAPSCREW - 3/8" - 16NC X 1" | 8 | ||||
| ? | VE1285 | • CLAMP, X-BRACE | 2 | ||||
| ? | 58C-03-10390 | • ROD, X-BRACE | 2 | ||||
| ? | C1528 | • NUT - 3/4" - 16NC | 12 | ||||
| ? | XA2806 | • FLAT WASHER | 6 | ||||
| ? | VE6312 | • NUT - 5/16" - 18NC | 2 | ||||
| ? | C5747 | • CAPSCREW - 5/16" - 18NC X 3/4" | 4 | ||||
| ? | 58C-03-10320 | • AIR BAFFLE, TOP | 4 | ||||
| ? | 58C-03-10330 | • AIR BAFFLE, BOTTOM | 4 | ||||
| ? | 58C-03-10250 | • SEAL, RUBBER - LOCKING | 752 | ||||
| ? | 58C-03-10260 | • SEAL, RUBBER | 752 | ||||
| ? | 58C-03-10240 | • TUBES | 752 | ||||
| ? | 58C-03-10130 | RADIATOR, AFTERCOOLER (LTC) | 1 | ||||
| ? | 58C-03-10300 | • MEMBER, SIDE | 1 | ||||
| ? | 58C-03-10310 | • MEMBER, SIDE | 1 | ||||
| ? | 58C-03-10280 | • TANK, CENTER | 1 | ||||
| ? | 58C-03-10290 | • TANK | 1 | ||||
| ? | 58C-03-10270 | • TANK | 1 | ||||
| ? | 58C-03-10400 | • SUPPORT, CENTER | 2 | ||||
| ? | VE8559 | • LOCKWASHER - 3/8" | 8 | ||||
| ? | C1602 | • CAPSCREW - 3/8" - 16NC X 1" | 8 | ||||
| ? | C1540 | • LOCKWASHER - 1/2" | 28 | ||||
| ? | VE3460 | • CAPSCREW - 1/2" - 13NC X 1" | 28 | ||||
| ? | 58C-03-10250 | • SEAL, RUBBER - LOCKING | 496 | ||||
| ? | 58C-03-10260 | • SEAL, RUBBER | 496 | ||||
| ? | 58C-03-10230 | • TUBES | 496 | ||||
| ? | 58C-03-10330 | • AIR BAFFLE, BOTTOM | 4 | ||||
| ? | 58C-03-10320 | • AIR BAFFLE, TOP | 4 |
