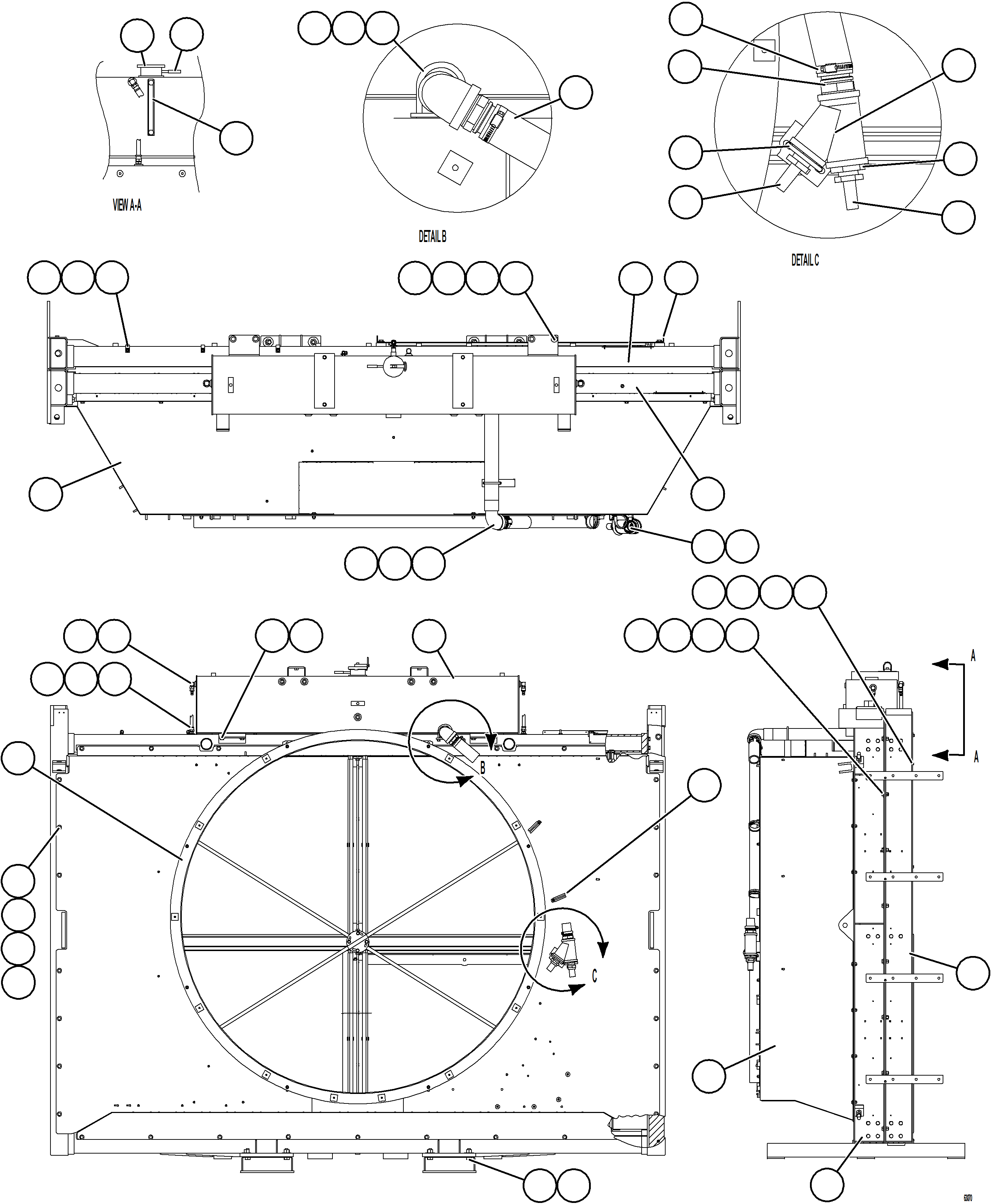

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 58C-03-10120 | RADIATOR, JACKET WATER (HTC) | 1 | ||||
| ? | 58C-03-10130 | RADIATOR, AFTERCOOLER (LTC) | 1 | ||||
| ? | 58C-03-10020 | TANK, SURGE | 1 | ||||
| ? | XA3516 | RING, FAN | 1 | ||||
| ? | 58C-03-10010 | SHROUD, FAN | 1 | ||||
| ? | VE1474 | CAP - 14 PSI | 1 | ||||
| ? | XA2800 | HOSE, OVERFLOW | 1 | ||||
| ? | 58C-03-10070 | SIGHT GLASS ASSEMBLY | 1 | ||||
| ? | BF4201 | U-BOLT ASSEMBLY | 1 | ||||
| ? | TR4436 | FLAT WASHER - 3/8" | 42 | ||||
| ? | TC1233 | NUT - 3/8" - 16NC | 31 | ||||
| ? | 58C-03-10050 | HOSE | 1 | ||||
| ? | BF4464 | NIPPLE | 2 | ||||
| ? | XA3791 | U-BOLT ASSEMBLY | 1 | ||||
| ? | XA3766 | NIPPLE | 2 | ||||
| ? | 58C-03-10060 | CLAMP, HOSE | 2 | ||||
| ? | XA3793 | FITTING | 1 | ||||
| ? | VE8236 | REDUCER | 2 | ||||
| ? | TC1231 | LOCKWASHER - 3/8" | 29 | ||||
| ? | 58C-03-10040 | CLIP, HOSE | 7 | ||||
| ? | TR1376 | CAPSCREW - 1/2" - 13NC X 1 1/4" | 20 | ||||
| ? | TR6008 | FLAT WASHER - 1/2" | 28 | ||||
| ? | TR5445 | LOCKWASHER - 1/2" | 20 | ||||
| ? | TR6443 | NUT - 1/2" - 13NC | 21 | ||||
| ? | 58C-03-10030 | BRACKET, A/C CONDENSER | 1 | ||||
| ? | TV0177 | FLAT WASHER - 5/16" | 2 | ||||
| ? | TD1684 | NUT - 5/16" | 2 | ||||
| ? | VE4441 | ELBOW | 1 | ||||
| ? | BF4462 | SWIVEL | 6 | ||||
| ? | BF4461 | ELBOW | 4 | ||||
| ? | BF4463 | ADAPTER | 2 | ||||
| ? | BF4460 | HOSE | 3 | ||||
| ? | TG5720 | CAPSCREW - 3/8" - 16NC X 1" | 43 | ||||
| ? | TF2449 | FLAT WASHER - 3/4" | 8 | ||||
| ? | TR8960 | NUT - 3/4" - 10NC | 8 | ||||
| ? | VG7146 | CAPSCREW - 1/2" - 13NC X 3/4" | 4 | ||||
| ? | XA3794 | CLAMP, HOSE | 2 |
