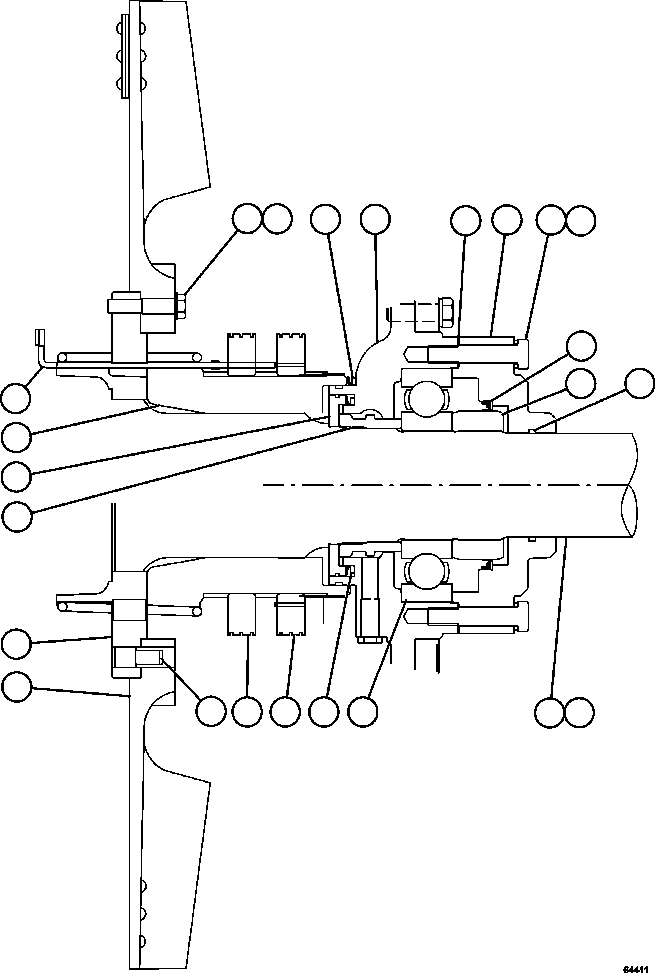

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | VE5061 | CAPSCREW - 1/2" - 13NC X 2 1/2" | 15 | ||||
| ? | VE5185 | FLAT WASHER - 1/2" | 17 | ||||
| ? | XA4331 | FLINGER | 1 | ||||
| ? | GE1103 | HUB | 1 | ||||
| ? | XA4329 | HOUSING, BEARING | 1 | ||||
| ? | VE4248 | GASKET | 1 | ||||
| ? | XA4330 | CAP, BEARING | 1 | ||||
| ? | GE1171 | CAPSCREW - 5/8" - 11NC X 3 1/4" | 6 | ||||
| ? | VE5184 | FLAT WASHER | 6 | ||||
| ? | XA5881 | SEAL | 1 | ||||
| ? | XA4332 | SLEEVE | 1 | ||||
| ? | XA4097 | SHAFT ASSEMBLY (1) | 1 | ||||
| ? | XA4098 | • SHAFT | 1 | ||||
| ? | GE1116 | • INSULATION | 2 | ||||
| ? | GE1117 | • HUB ASSEMBLY | 1 | ||||
| ? | GE1118 | • • RING, COLLECTOR (2) | 1 | ||||
| ? | GE1119 | • • RING, COLLECTOR (2) | 1 | ||||
| ? | GE1115 | • SUPPORT, IMPELLER | 1 | ||||
| ? | VE3620 | PIN, DOWEL | 1 | ||||
| ? | GE1096 | IMPELLER | 1 | ||||
| ? | GE1823 | BEARING, BALL | 1 | ||||
| ? | VE7209 | SEAL, V-RING | 1 | ||||
| ? | XA4511 | SEAL, V-RING | 1 | ||||
| ? | 58E-06-03080 | PACKING | 1 | ||||
| ? | NOTE: (1) INCLUDED IN XA4413 ROTOR ASSEMBLY. | ||||||
| ? | XA6102 | (2) NOT SERVICED SEPARATELY. | |||||
| ? | ORDER XA6102 ALTERNATOR COLLECTOR RING SERVICE KIT. |
