Содержание Dump Trucks Komatsu AFE69-K 730E-8 S/N A40051 - A40057 BARALABA(AFE69-K)

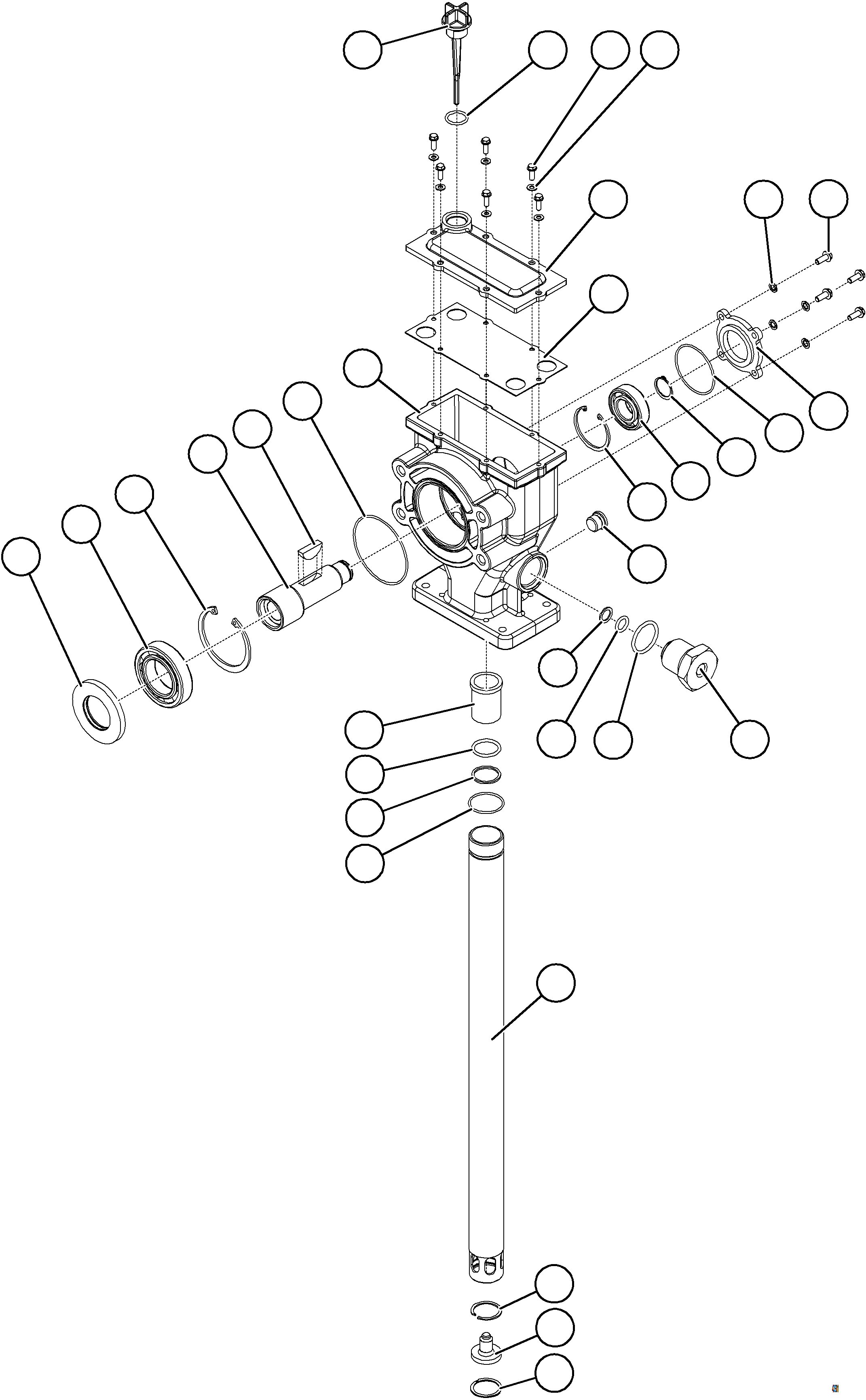

LUBE PUMP ASSEMBLY 1/3 58F-98-40240(596 : 43901)
Номер на схеме Каталожный номер Название Количество Детали
? PC3290 DIPSTICK 1
? O-RING (1) 1
? BF5489 SCREW, SELF-TAPPING 6
? CRANKROD (1) 6
? PC3292 COVER, HOUSING 1
? CRANK, ECCENTRIC (1) 1
? 58F-98-40710 HOUSING, PUMP 1
? PIN, OUTLET (1) 1
? 58F-98-40430 BEARING, BALL 1
? 58F-98-40470 RING, RETAINING 1
? 58F-98-40640 SHAFT, PUMP 1
? 58F-98-40460 KEY, WOODRUFF 1
? O-RING (1) 1
? 58F-98-40480 RING, RETAINING 1
? 58F-98-40420 BEARING, BALL 1
? 58F-98-40490 RING, RETAINING 1
? O-RING (1) 1
? 58F-98-40390 COVER, BEARING 1
? 58F-98-40280 LOCKWASHER 4
? 58F-98-40440 SCREW 4
? 58F-98-40300 PLUG, DRAIN 1
? WASHER, BACKUP (1) 2
? O-RING (1) 2
? O-RING (1) 2
? BF5502 NUT 2
? BF5503 BEARING BRONZE 1
? O-RING (1) 1
? WASHER, BACKUP (1) 6
? O-RING (1) 1
? 58F-98-40690 TUBE, HOUSING 1
? 58F-98-40650 RING, RETAINING 1
? BF5505 PLUG, SHOVEL 1
? BF5506 RING, RETAINING 1
? 58F-98-40740 NOTE: (1) INCLUDED IN 58F-98-40740 SEAL KIT.
