Содержание Dump Trucks Komatsu AFE73-G 980E-4 S/N A40078 - A40079 ESCONDIDA(AFE73-G)

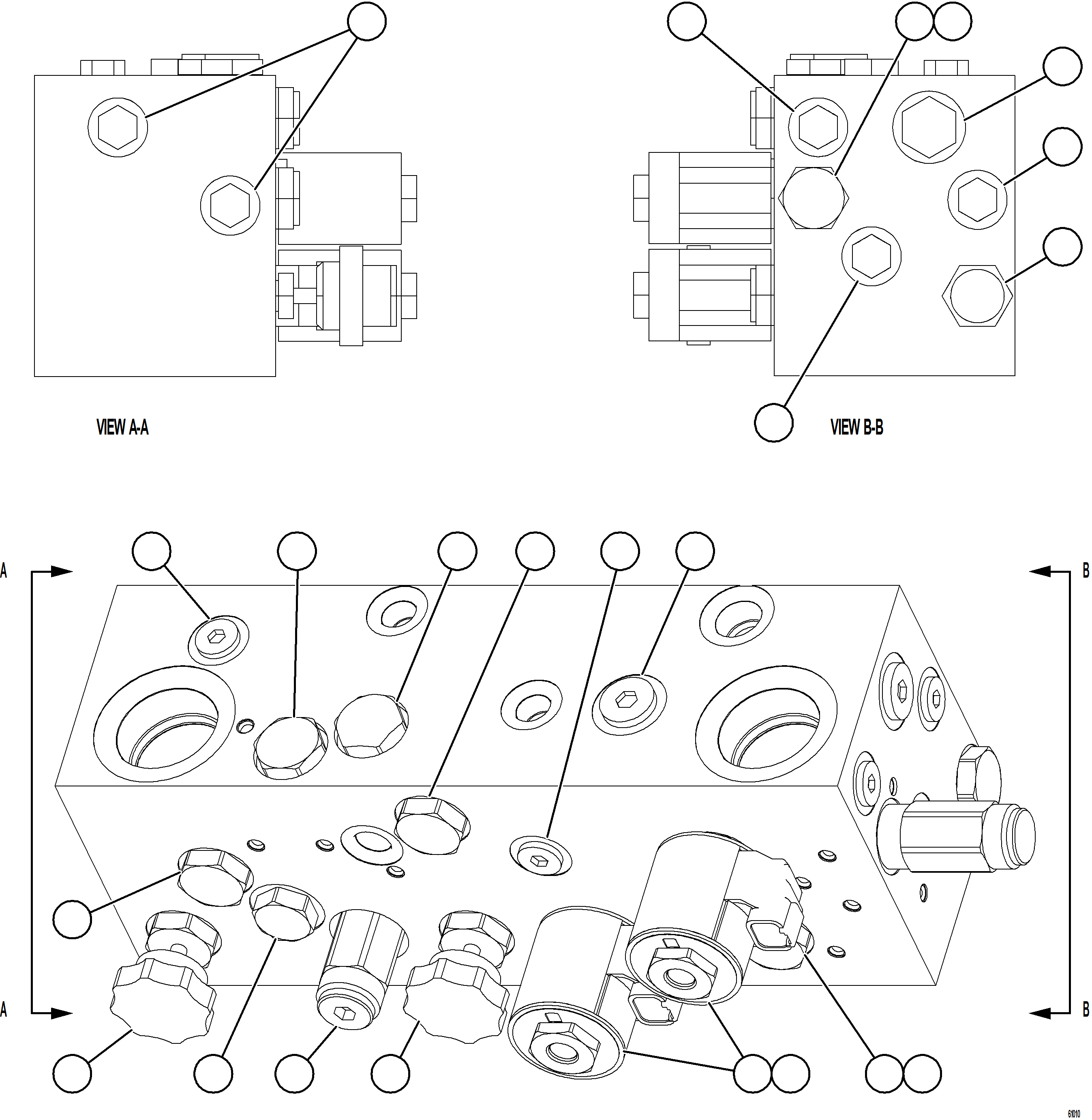

BRAKE MANIFOLD 58C-98-00200(552 : 61010)
Номер на схеме Каталожный номер Название Количество Детали
? BF2839 VALVE, NEEDLE 2
? BF2864 • O-RING (1) 2
? BF2860 • O-RING (1) 2
? BF2863 • RING, BACKUP (1) 4
? BF2840 VALVE, CHECK 3
? BF2860 • O-RING (2) 3
? BF2864 • O-RING (2) 3
? BF2865 • RING, BACKUP (2) 3
? BF2842 VALVE, SOLENOID 2
? BF2838 PLUG, CAVITY 1
? BF3523 VALVE, PRESSURE REDUCTION 1
? BF2860 • O-RING (4) 1
? BF2866 • O-RING (4) 1
? BF2864 • O-RING (4) 1
? BF2872 • RING, BACKUP (4) 1
? BF2863 • RING, BACKUP (4) 2
? BF2851 DISC, ORIFICE 1
? BF2845 PLUG, CAVITY 1
? • O-RING (3) 1
? BF2850 DISC, ORIFICE 1
? BF2841 VALVE, PILOT (AUTOMATIC APPLY) (5) 1
? BF2860 • O-RING (5) 1
? BF2866 • O-RING (5) 1
? BF2867 • O-RING (5) 1
? BF2864 • O-RING (5) 1
? BF2863 • RING, BACKUP (5) 1
? BF2868 • RING, BACKUP (5) 2
? XA6420 • RING, BACKUP (5) 2
? WA4779 PLUG, O-RING 7
? TL3995 • O-RING 7
? BF2846 CARTRIDGE, LOAD SHUTTLE 1
? BF2860 • O-RING (3) 1
? BF2866 • O-RING (3) 1
? BF2864 • O-RING (3) 1
? BF2863 • RING, BACKUP (3) 1
? BF2868 • RING, BACKUP (3) 2
? BF2847 CARTRIDGE, HOT OIL 1
? BF2860 • O-RING (6) 1
? BF2864 • O-RING (6) 1
? BF2865 • RING, BACKUP (6) 2
? WA4780 PLUG, O-RING 2
? SV9812 • O-RING 2
? XA3396 COIL 2
? BF2853 NOTE: (1) INCLUDED IN BF2853 SEAL KIT.
? BF2854 (2) INCLUDED IN BF2854 SEAL KIT.
? BF2856 (3) INCLUDED IN BF2856 SEAL KIT.
? BF2857 (4) INCLUDED IN BF2857 SEAL KIT.
? BF2855 (5) INCLUDED IN BF2855 SEAL KIT.
? BF2858 (6) INCLUDED IN BF2858 SEAL KIT.

Dump Trucks Komatsu / AFE73-G 980E-4 S/N A40078 - A40079 ESCONDIDA(AFE73-G) / BRAKE MANIFOLD 58C-98-00200(552 : 61010)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
