Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
58B-50-01000 |

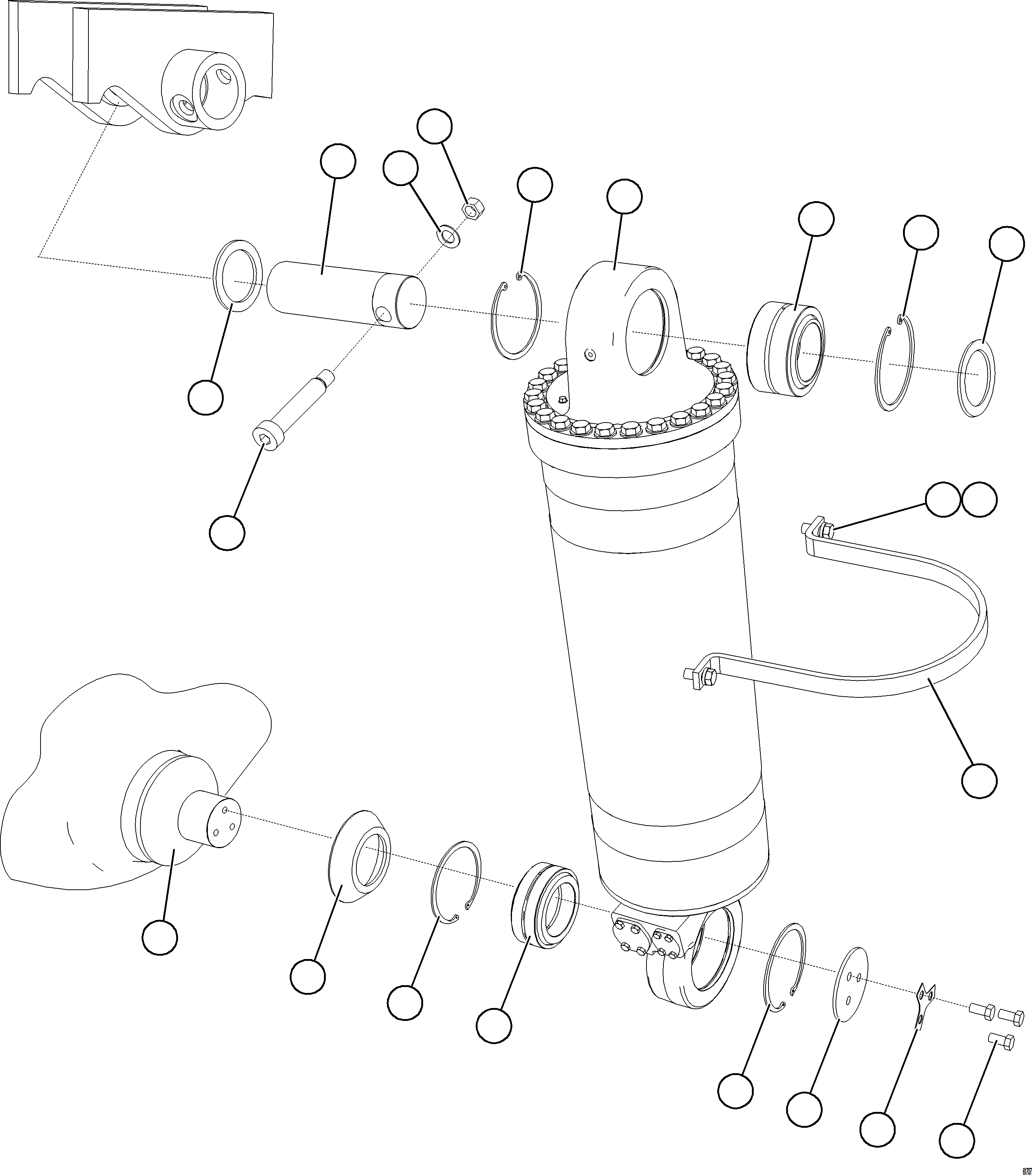

HOIST CYLINDER ASSEMBLY W/BEARINGS |
1 |
|
|
|
|
? |
VN9350 |
• RING, RETAINING |
2 |
|
|
|
|
? |
VL4293 |
• BUSHING, BALL |
1 |
|
|
|
|
? |
SV5921 |
• RING, RETAINING |
2 |
|
|
|
|
? |
PC1291 |
• BEARING, SPHERICAL |
1 |
|
|
|
|
? |
PC3201 |
LOCKNUT - 1 1/8" - 7NC (1) |
1 |
|
|
|
|
? |
WA0365 |
FLAT WASHER - 1 1/8" (HARDENED) (1) |
1 |
|
|
|
|
? |
EH7921 |
PIN, UPPER HOIST (1) |
1 |
|
|
|
|
? |
EH7816 |
SPACER, UPPER HOIST PIN (1) |
2 |
|
|
|
|
? |
EM8111 |
SHOULDER BOLT - 1 1/8" - 7NC X 6.34" (1) |
1 |
|
|
|
|
? |
58B-80-00060 |
SPACER, BEARING |
1 |
|
|
|
|
? |
58B-80-00040 |
PLATE, RETAINER |
1 |
|
|
|
|
? |
EF4837 |
PLATE, LOCKING |
1 |
|
|
|
|
? |
MM0021 |
CAPSCREW - M20 X 2.50 X 40 |
3 |
|
|
|
|
? |
58B-80-00050 |
CLAMP |
1 |
|
|
|
|
? |
C1643 |
CAPSCREW - 3/4" - 10NC X 1 3/4" |
2 |
|
|
|
|
? |
C1542 |
LOCKWASHER - 3/4" |
2 |
|
|
|
|
? |
58B-46-10110 |
SHAFT, HOIST BEARING |
1 |
|
|
|
|
? |
58C-MP-AK050 |
NOTE: (1) INCLUDED IN 58C-MP-AK050 UPPER HOIST CYLINDER |
|
|
|
|
|
? |
|
PIN KIT. |
|
|
|
|
|
? |
|
(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
|
|
|
|
