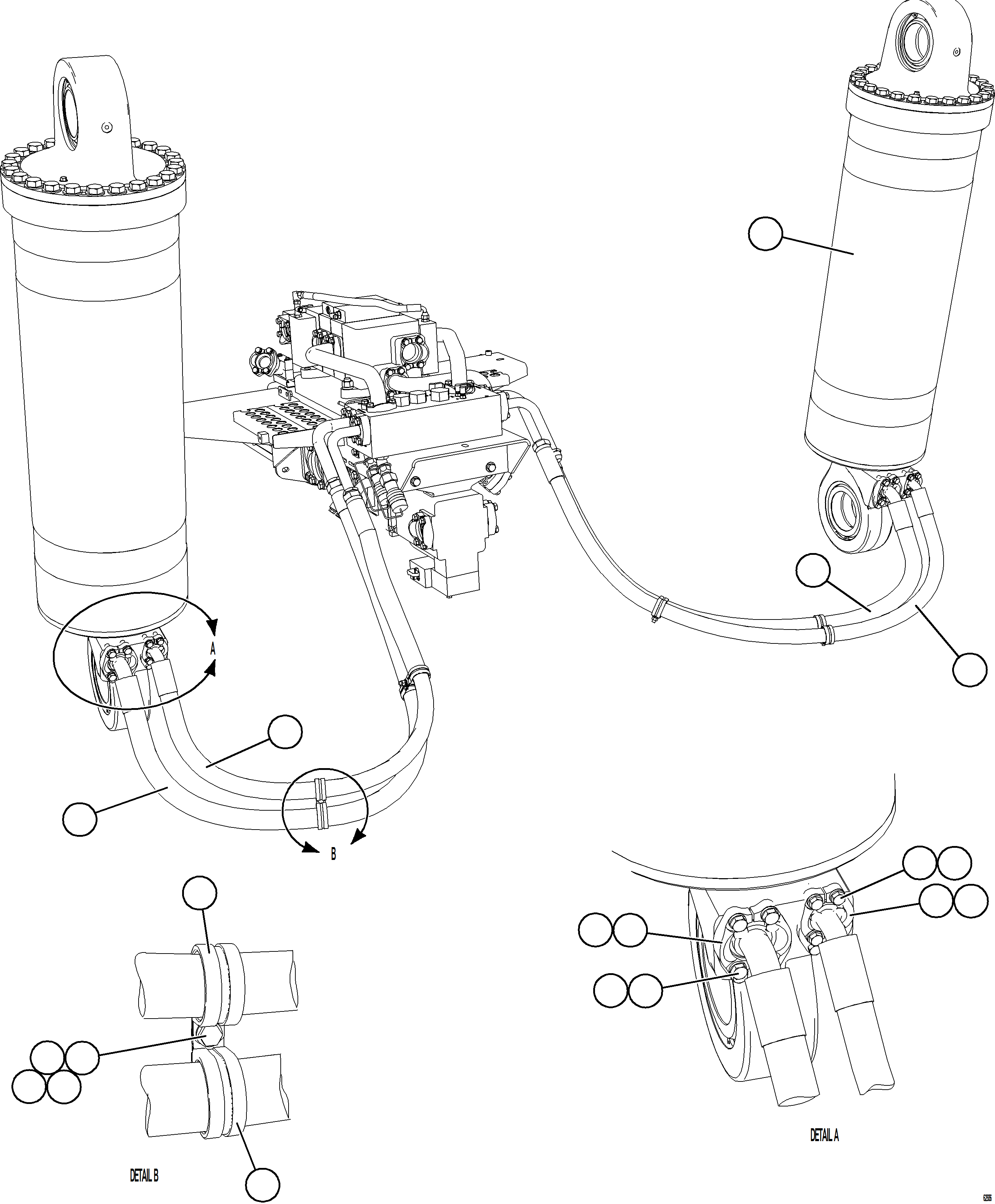

| Наименование | Страница | Код страницы |
|---|---|---|
| HOIST CYLINDER INSTALLATION | 514 | 61707 |
| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 58B-50-01000 | HOIST CYLINDER ASSEMBLY W/BEARINGS (SEE FIG 61707) | 1 | 61707 | |||
| ? | 58B-60-00290 | HOSE | 1 | ||||
| ? | HA7731 | HOSE | 2 | ||||
| ? | TR4090 | CAPSCREW - 7/16" - 14NC X 1 1/2" | 4 | ||||
| ? | TD0795 | LOCKWASHER - 7/16" | 4 | ||||
| ? | TF3237 | CLAMP, SPLIT FLANGE - 1 1/4" | 2 | ||||
| ? | VG9096 | O-RING | 1 | ||||
| ? | VC6561 | CAPSCREW - 1/2" - 13NC X 1 1/2" | 4 | ||||
| ? | TR5445 | LOCKWASHER - 1/2" | 4 | ||||
| ? | TF3231 | CLAMP, SPLIT FLANGE - 2" | 2 | ||||
| ? | WA0187 | O-RING | 1 | ||||
| ? | WB1307 | CLAMP, CUSHIONED - 2 3/16" | 2 | ||||
| ? | WB1306 | CLAMP, CUSHIONED - 2" | 2 | ||||
| ? | VC8762 | CAPSCREW - 3/8" - 16NC X 1 1/2" | 2 | ||||
| ? | TR4436 | FLAT WASHER - 3/8" | 4 | ||||
| ? | TC1231 | LOCKWASHER - 3/8" | 2 | ||||
| ? | TC1233 | NUT - 3/8" - 16NC | 2 | ||||
| ? | (QUANTITIES SHOWN ARE FOR ONE CYLINDER ONLY.) |
