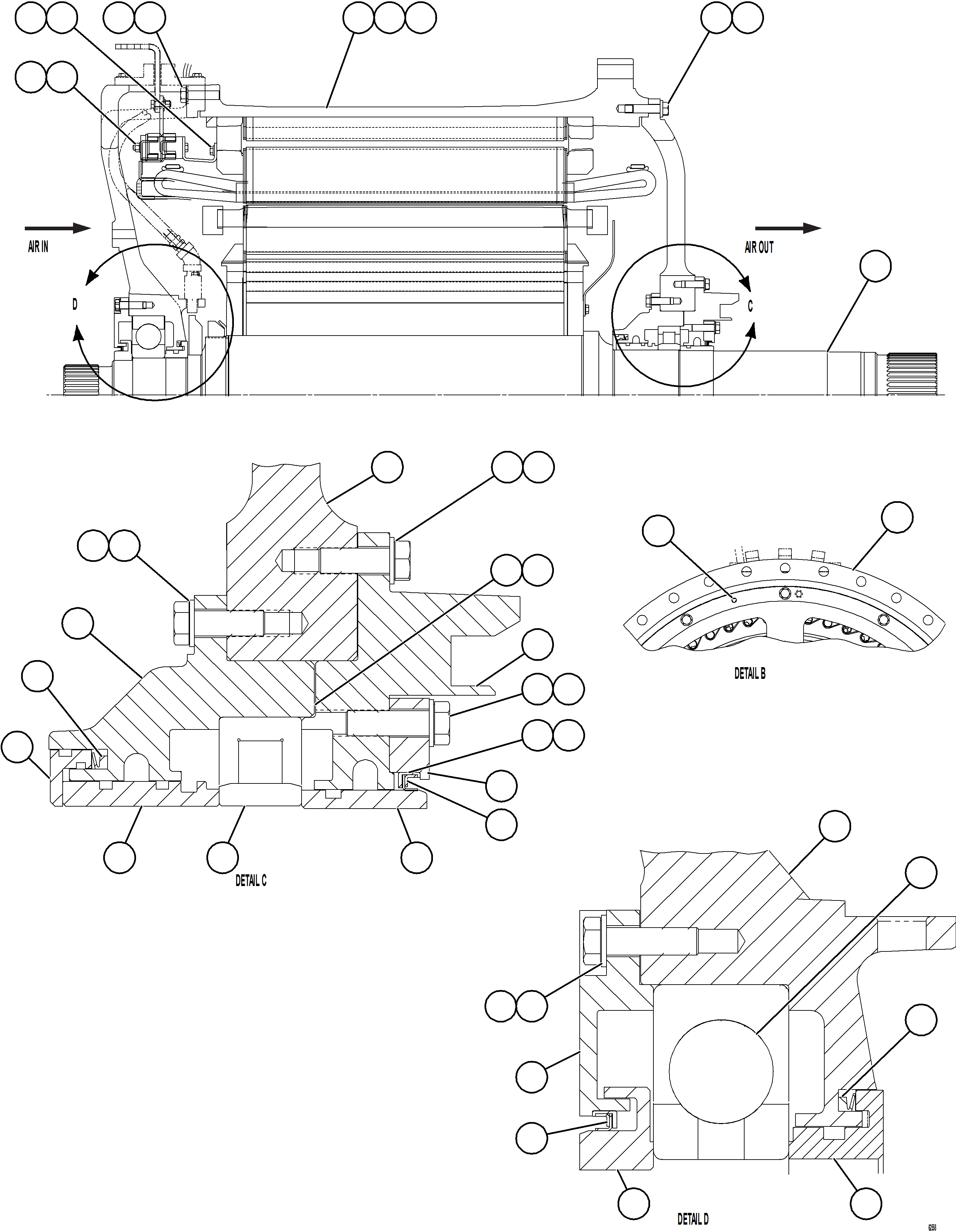

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | VE3027 | FLAT WASHER - 3/8" | 27 | ||||
| ? | TC1233 | NUT - 3/8" - 16NC | 9 | ||||
| ? | VE4526 | CAPSCREW - 3/8" - 16NC X 1" | 18 | ||||
| ? | VS6852 | CAPSCREW - 5/8" - 11NC X 2 1/2" | 15 | ||||
| ? | XA4136 | FLAT WASHER - 5/8" (HARDENED) | 15 | ||||
| ? | XA4498 | STATOR ASSEMBLY | 1 | ||||
| ? | GE1447 | STATOR REWIND KIT | 1 | ||||
| ? | 58B-06-02150 | KIT, STATOR BUS RING | 1 | ||||
| ? | GE1474 | CAPSCREW - 5/8" - 11NC X 2 1/4" | 12 | ||||
| ? | GE1453 | ROTOR ASSEMBLY | 1 | ||||
| ? | XA4513 | FLINGER | 1 | ||||
| ? | XA4514 | SEAL (1) | 1 | ||||
| ? | XA4512 | HOUSING, BEARING | 1 | ||||
| ? | VE4518 | CAPSCREW - 1/2" - 13NC X 1 1/2" | 12 | ||||
| ? | VE5185 | FLAT WASHER - 1/2" | 16 | ||||
| ? | GE1465 | FRAME HEAD | 1 | ||||
| ? | VJ9656 | ADHESIVE, RTV | |||||
| ? | GE1473 | SEAL, LIP (1) | 1 | ||||
| ? | GE1467 | CAP, BEARING SEAL | 1 | ||||
| ? | TV1918 | CAPSCREW - 1/2" - 13NC X 1 3/4" (1) | 8 | ||||
| ? | GE1468 | CAP, BEARING SEAL | 1 | ||||
| ? | GE1471 | COLLAR | 1 | ||||
| ? | GE1472 | BEARING, ROLLER (TA) (2) | 1 | ||||
| ? | GE1470 | COLLAR (N) | 1 | ||||
| ? | 58B-06-02080 | DOWEL, PIN (TC) | 1 | ||||
| ? | BF1660 | SEAL, LIP (1) | 1 | ||||
| ? | GE1460 | CAP, BEARING | 1 | ||||
| ? | XA4500 | FRAME HEAD | 1 | ||||
| ? | GE1462 | BEARING (2) | 1 | ||||
| ? | XA4511 | SEAL, V-RING (1) | 1 | ||||
| ? | 58B-06-02090 | FLINGER, COLLAR ASSEMBLY (INNER) | 1 | ||||
| ? | GE1461 | COLLAR (OUTER) | 1 | ||||
| ? | NOTE: NS = NOT SHOWN | ||||||
| ? | VE4783 | PUTTY | |||||
| ? | VE4334 | TAPE | |||||
| ? | VE4335 | TAPE, FIBERGLASS | |||||
| ? | 58B-WM-AK100 | NOTE: (1) INCLUDED IN 58B-WM-AK100 TRACTION MOTOR KIT. | |||||
| ? | 58B-WM-AK040 | (2) INCLUDED IN 58B-WM-AK040 TRANSMISSION MOTOR BEARING KIT. |
