Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
58B-30-00320 |

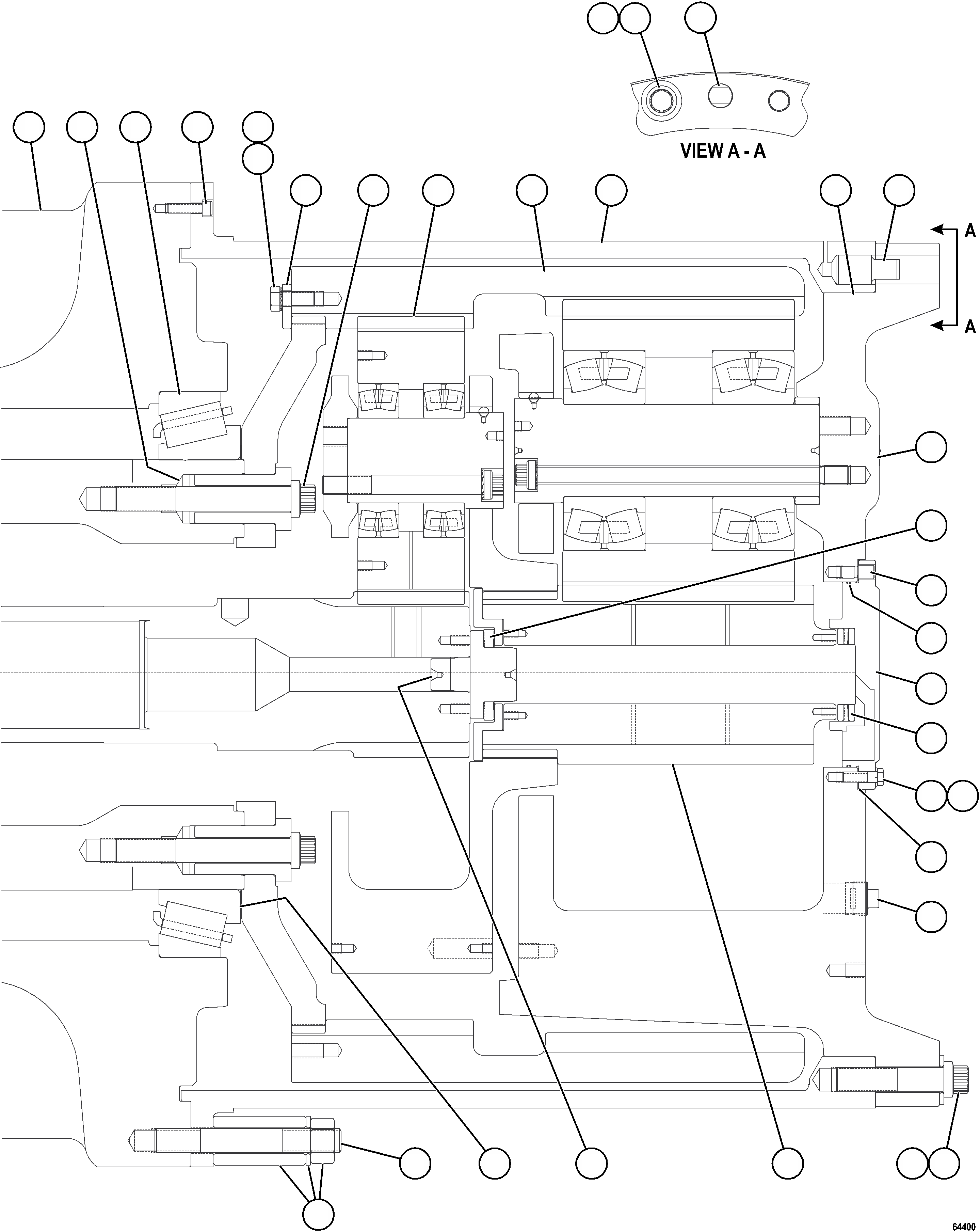

ELECTRIC WHEEL TRANSMISSION |
1 |
|
|
|
|
? |
58F-14-00260 |
• HUB, WHEEL |
1 |
|
|
|
|
? |
GE0896 |
• BUSHING |
19 |
|
|
|
|
? |
GE0448 |
• LUBRICANT, BONDED |
|
|
|
|
|
? |
GE1429 |
• BEARING, ROLLER (3) |
1 |
|
|
|
|
? |
GE0069 |
• CAPSCREW, SOCKET HEAD - 1/2" - 13NC X 1 3/4" |
29 |
|
|
|
|
? |
TD7882 |
• CAPSCREW - 3/4" - 10NC X 1 3/4" |
16 |
|
|
|
|
? |
BF4617 |
• FLAT WASHER - 3/4" |
16 |
|
|
|
|
? |
GE0895 |
• PLATE, CLAMP |
8 |
|
|
|
|
? |
58B-98-10700 |
• CAPSCREW - 1 1/4" - 12NF X 9" (12 PT) (2) |
19 |
|
|
|
|
? |
58F-14-00180 |
• CARRIER ASSEMBLY - HIGH SPEED (SEE FIG 64160) |
1 |
|
64160 |
|
|
? |
58F-14-00300 |
• GEAR, RING |
1 |
|
|
|
|
? |
58F-14-00270 |
• TUBE, TORQUE |
1 |
|
|
|
|
? |
VJ9656 |
• ADHESIVE, RTV |
|
|
|
|
|
? |
GE0067 |
• PIN, LOCATING |
1 |
|
|
|
|
? |
58F-14-00240 |
• CARRIER ASSEMBLY - LOW SPEED (SEE FIG 64161) |
1 |
|
64161 |
|
|
? |
GE1764 |
• WASHER, THRUST (2) |
1 |
|
|
|
|
? |
GE1353 |
• PIN, ALIGNMENT |
1 |
|
|
|
|
? |
58F-14-00110 |
• O-RING (2) |
1 |
|
|
|
|
? |
58F-14-00310 |
• COVER, LOW SPEED CARRIER |
1 |
|
|
|
|
? |
GE1489 |
• WASHER, THRUST (2) |
2 |
|
|
|
|
? |
58F-14-00120 |
• SHIM SET (2) |
1 |
|
|
|
|
? |
GE0898 |
• • SHIM - .015 |
12 |
|
|
|
|
? |
GE0899 |
• • SHIM - .030 |
6 |
|
|
|
|
? |
VE5185 |
• FLAT WASHER - 1/2" |
11 |
|
|
|
|
? |
TV1918 |
• CAPSCREW - 1/2" - 13NC X 1 3/4" |
11 |
|
|
|
|
? |
GE0086 |
• PLUG, PIPE |
8 |
|
|
|
|
? |
GE0089 |
• FLAT WASHER - 1 1/4" |
35 |
|
|
|
|
? |
GE0068 |
• CAPSCREW - 1 1/4" - 12NF X 5 1/2" (12 PT) |
35 |
|
|
|
|
? |
58F-14-00160 |
• PINION SUN - LOW SPEED |
1 |
|
|
|
|
? |
GE1436 |
• SHIM SET (2) |
1 |
|
|
|
|
? |
GE1437 |
• • SHIM - .005 |
5 |
|
|
|
|
? |
GE1438 |
• • SHIM - .007 |
4 |
|
|
|
|
? |
GE1439 |
• • SHIM - .229 |
4 |
|
|
|
|
? |
EM5451 |
• STUD - 1 1/4" - 7NC |
58 |
|
|
|
|
? |
GE0089 |
• FLAT WASHER - 1 1/4" (1) |
9 |
|
|
|
|
? |
GE0536 |
• NUT - 1 1/4" - 7NC (1) |
9 |
|
|
|
|
? |
GE0535 |
• BLOCK (1) |
9 |
|
|
|
|
? |
58F-14-00230 |
• PLUG, LONG |
1 |
|
|
|
|
? |
|
NOTE: (1) USED FOR SHIPPING ASSEMBLY ONLY OR DURING |
|
|
|
|
|
? |
|
OVERHAUL AND STORAGE OF WHEEL MOTOR. |
|
|
|
|
|
? |
58B-WM-AK010 |
(2) INCLUDED IN 58B-WM-AK010 TRANSMISSION KIT. |
|
|
|
|
|
? |
58B-WM-AK020 |
(3) INCLUDED IN 58B-WM-AK020 TRANSMISSION BEARING KIT. |
|
|
|
|
