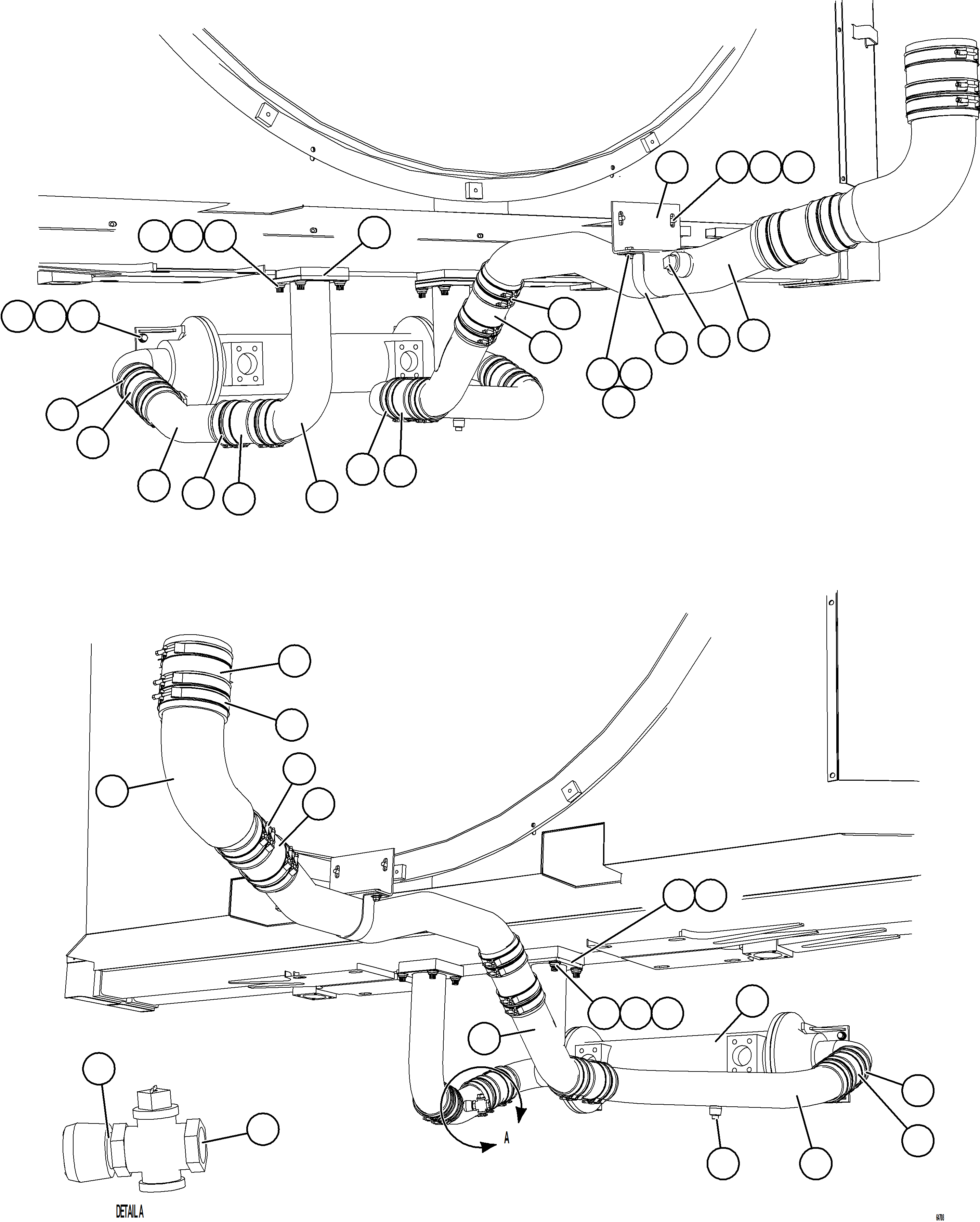

| Наименование | Страница | Код страницы |
|---|---|---|
| HEAT EXCHANGER PC2843 | 076 | 61656 |
| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | MM0620 | CAPSCREW - M12 X 1.75 X 40 | 4 | ||||
| ? | MM0714 | FLAT WASHER, HARDENED - M12 | 4 | ||||
| ? | MM0472 | LOCKWASHER - M12 | 4 | ||||
| ? | WA0839 | CAPSCREW, 12 PT - 5/8" - 11NC X 1 1/2" | 4 | ||||
| ? | VC1390 | LOCKWASHER - 5/8" | 8 | ||||
| ? | TR9082 | FLAT WASHER - 5/8" | 12 | ||||
| ? | WB1049 | CLAMP, T-BOLT | 24 | ||||
| ? | EH0431 | HOSE | 6 | ||||
| ? | XB3523 | TUBE | 1 | ||||
| ? | XB3459 | TUBE | 1 | ||||
| ? | EH3380 | BRACKET | 1 | ||||
| ? | TC1234 | CAPSCREW - 3/8" - 16NC X 3/4" | 4 | ||||
| ? | TC1231 | LOCKWASHER - 3/8" | 4 | ||||
| ? | TR4436 | FLAT WASHER, HARDENED - 3/8" | 4 | ||||
| ? | EF6665 | CLAMP | 1 | ||||
| ? | EF2781 | GASKET | 3 | ||||
| ? | 58B-03-00810 | TUBE | 1 | ||||
| ? | XB3581 | PLATE, ORIFICE | 1 | ||||
| ? | PC2843 | HEAT EXCHANGER (SEE INDEX) | 1 | 61656 | |||
| ? | XB3521 | TUBE | 1 | ||||
| ? | C5771 | PLUG, PIPE - 1/2" | 1 | ||||
| ? | XB3559 | TUBE | 1 | ||||
| ? | TF6957 | DRAIN COCK | 1 | ||||
| ? | E2579 | NIPPLE | 1 | ||||
| ? | XB3460 | TUBE | 1 | ||||
| ? | WB1051 | CLAMP, T-BOLT | 3 | ||||
| ? | ED0020 | HOSE | 1 | ||||
| ? | C5772 | PLUG, PIPE - 1" | 2 | ||||
| ? | 58B-09-00240 | CAPSCREW - 5/8" - 11NC X 1 3/4" | 4 |
