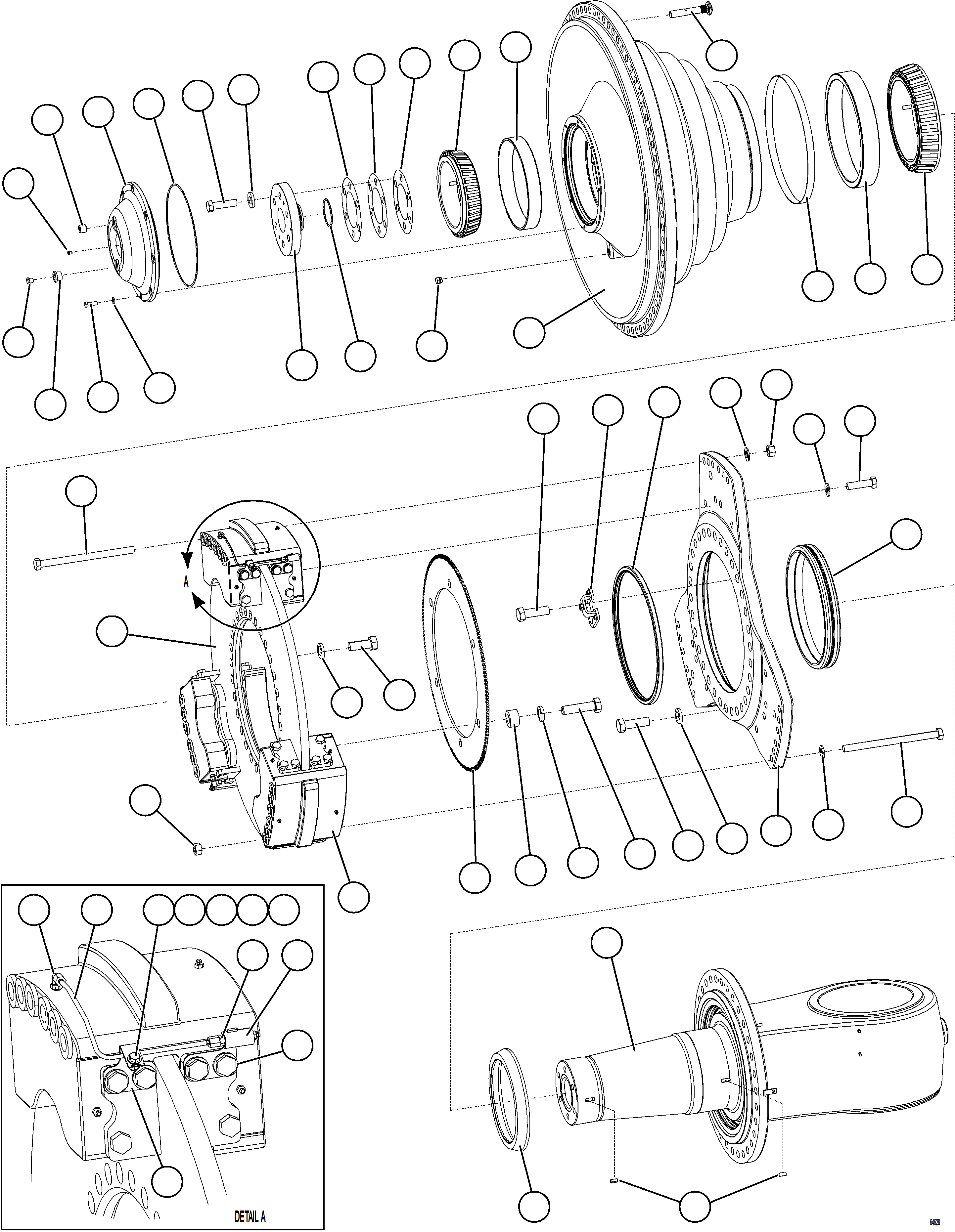

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
TH6916 |
VALVE, CHECK |
1 |
|
|
|
|
? |
R2491 |
PLUG, DRAIN - MAGNETIC |
1 |
|
|
|
|
? |
EC3702 |
COVER |
1 |
|
|
|
|
? |
WA4795 |
O-RING (1) |
1 |
|
|
|
|
? |
PB7454 |
GAUGE, SIGHT |
1 |
|
|
|
|
? |
SD5211 |
BUSHING, PIPE |
1 |
|
|
|
|
? |
VC6500 |
CAPSCREW - 1/2" - 13NC X 2" |
8 |
|
|
|
|
? |
TR5445 |
LOCKWASHER - 1/2" |
8 |
|
|
|
|
? |
VM8258 |
CAPSCREW - 1" - 8NC X 3 3/4" |
18 |
|
|
|
|
? |
TY2148 |
FLAT WASHER, HARDENED - 1" |
6 |
|
|
|
|
? |
EL9506 |
RETAINER, BEARING |
1 |
|
|
|
|
? |
SL5023 |
O-RING (1) |
1 |
|
|
|
|
? |
EL9513 |
SHIM - .005" (1) |
3 |
|
|
|
|
? |
EL9514 |
SHIM - .007" (1) |
4 |
|
|
|
|
? |
EL9515 |
SHIM - .020" (1) |
5 |
|
|
|
|
? |
PC1697 |
CONE, BEARING (1) |
1 |
|
|
|
|
? |
PC0006 |
CUP, BEARING (1) |
1 |
|
|
|
|
? |
VM0315 |
PLUG |
1 |
|
|
|
|
? |
58E-32-10292 |
WHEEL HUB ASSEMBLY |
1 |
|
|
|
|
? |
58E-32-10273 |
• HUB, WHEEL |
1 |
|
|
|
|
? |
XB4708 |
• STUD W/ HEAD |
71 |
|
|
|
|
? |
58E-32-50040 |
RING, WEAR |
1 |
|
|
|
|
? |
PC0003 |
CUP, BEARING (1) |
1 |
|
|
|
|
? |
PC1696 |
CONE, BEARING (1) |
1 |
|
|
|
|
? |
WA4682 |
CAPSCREW - 1" - 14NF X 14 1/2" |
18 |
|
|
|
|
? |
WA0364 |
FLAT WASHER, HARDENED - 1" |
30 |
|
|
|
|
? |
VN7703 |
NUT - 1" - 14NF |
18 |
|
|
|
|
? |
TX4848 |
DISC |
1 |
|
|
|
|
? |
TY2149 |
FLAT WASHER, HARDENED - 1 1/4" |
62 |
|
|
|
|
? |
VN9143 |
CAPSCREW - 1 1/4" - 7NC X 4" |
56 |
|
|
|
|
? |
PC2020 |
DISC BRAKE ASSEMBLY (SEE INDEX) |
3 |
|
42761 |
|
|
? |
EL0627 |
GEAR |
1 |
|
|
|
|
? |
VN3275 |
CAPSCREW - 1 1/4" - 7NC X 5 1/2" |
8 |
|
|
|
|
? |
EL0628 |
SPACER |
8 |
|
|
|
|
? |
58E-32-50160 |
ADAPTER, BRAKE |
1 |
|
|
|
|
? |
EM6445 |
BRACKET |
1 |
|
|
|
|
? |
58E-32-50030 |
SEAL (1) |
1 |
|
|
|
|
? |
58E-32-50000 |
SEAL RING ASSEMBLY (1) |
1 |
|
|
|
|
? |
EB1715 |
SPACER |
1 |
|
|
|
|
? |
58E-32-50051 |
SPINDLE |
1 |
|
|
|
|
? |
562-22-32290 |
PIN (1) |
2 |
|
|
|
|
? |
TH7593 |
FITTING, ELBOW - 90 DEG (2) |
1 |
|
|
|
|
? |
TX0805 |
TUBE (2) |
1 |
|
|
|
|
? |
VY8331 |
CLAMP, VINYL - 1/4" (2) |
1 |
|
|
|
|
? |
TL7218 |
CAPSCREW - 3/8" - 16NC X 7/8" (2) |
1 |
|
|
|
|
? |
TR4436 |
FLAT WASHER, HARDENED - 3/8" (2) |
1 |
|
|
|
|
? |
TC1231 |
LOCKWASHER - 3/8" (2) |
1 |
|
|
|
|
? |
TC1233 |
NUT - 3/8" - 16NC (2) |
1 |
|
|
|
|
? |
TF5190 |
FITTING, TUBE CONNECTOR (2) |
1 |
|
|
|
|
? |
TX0808 |
BOSS, BLEEDER REMOTE (2) |
1 |
|
|
|
|
? |
WA0362 |
FLAT WASHER - 3/4" (2) |
4 |
|
|
|
|
? |
TX0807 |
ANGLE (2) |
1 |
|
|
|
|
? |
58E-SM-AK040 |
NOTE: (1) INCLUDED IN 58E-SM-AK040 BEARING AND SEAL KIT. |
|
|
|
|
|
? |
|
(2) USED ON TOP BRAKE HEAD ONLY. |
|
|
|
|
|
? |
|
(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
|
|
|
|
