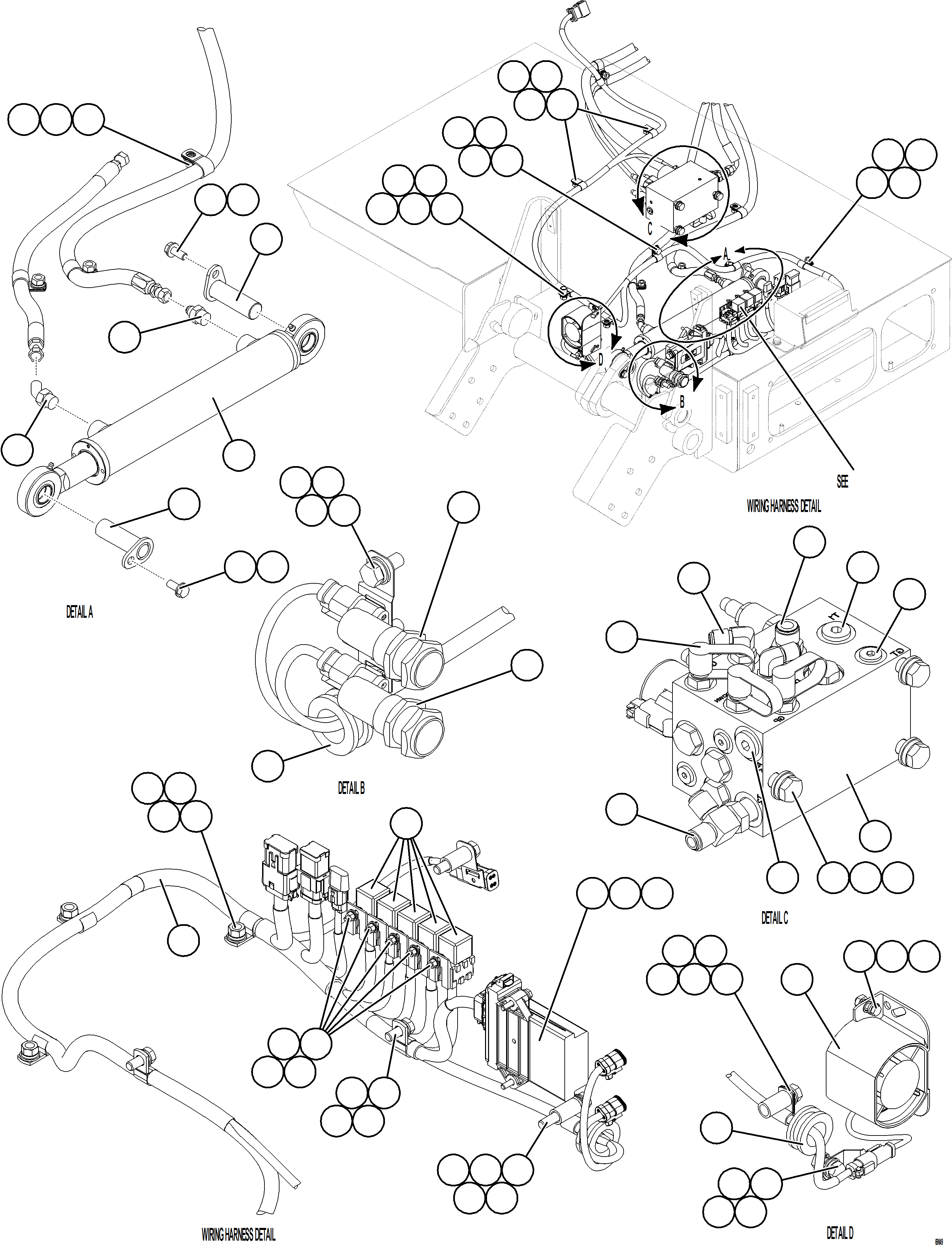

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
58E-06-08723 |
HARNESS, WIRING - HYDRAULIC LADDER |
1 |
|
|
|
|
? |
PC2834 |
• DIODE - 4 AMP (D7) |
1 |
|
|
|
|
? |
WA4779 |
PLUG, O-RING (GAS) |
1 |
|
|
|
|
? |
EL7273 |
SPACER |
1 |
|
|
|
|
? |
WB1304 |
CLAMP, CUSHIONED - 9/16" |
8 |
|
|
|
|
? |
MM0471 |
LOCKWASHER - M10 |
20 |
|
|
|
|
? |
MM0461 |
FLAT WASHER - M10 |
8 |
|
|
|
|
? |
MM0178 |
NUT - M10 X 1.50 |
9 |
|
|
|
|
? |
WB3098 |
CLAMP, CUSHIONED - 3/8" |
1 |
|
|
|
|
? |
MM0605 |
CAPSCREW - M10 X 1.50 X 25 |
7 |
|
|
|
|
? |
58E-60-12010 |
MANIFOLD ASSEMBLY (SEE INDEX) |
1 |
|
64461 |
|
|
? |
EM1398 |
SPACER |
4 |
|
|
|
|
? |
58B-06-20020 |
BRACKET |
3 |
|
|
|
|
? |
58D-06-11101 |
CONTROLLER, LADDER |
1 |
|
|
|
|
? |
MM0585 |
CAPSCREW - M6 X 1.00 X 35 |
2 |
|
|
|
|
? |
56B-06-15610 |
SWITCH, PROXIMITY |
2 |
|
|
|
|
? |
WB3097 |
CLAMP, CUSHIONED - 1/2" |
1 |
|
|
|
|
? |
VY0876 |
GROMMET |
2 |
|
|
|
|
? |
58E-06-08400 |
HORN |
1 |
|
|
|
|
? |
MM0583 |
CAPSCREW - M6 X 1.00 X 25 |
2 |
|
|
|
|
? |
MM0469 |
LOCKWASHER - M6 |
2 |
|
|
|
|
? |
MM0711 |
FLAT WASHER, HARDENED - M6 |
4 |
|
|
|
|
? |
08193-21012 |
CLIP |
1 |
|
|
|
|
? |
MM0611 |
CAPSCREW - M10 X 1.50 X 60 |
1 |
|
|
|
|
? |
WB1300 |
CLAMP, CUSHIONED - 5/8" |
2 |
|
|
|
|
? |
58E-06-10020 |
RELAY |
5 |
|
|
|
|
? |
MM0351 |
MACHINE SCREW - M5 X 0.8 X 20 |
5 |
|
|
|
|
? |
VC5344 |
FLAT WASHER - #10 |
10 |
|
|
|
|
? |
MM0379 |
LOCKWASHER, EXTERNAL TOOTH - M5 |
5 |
|
|
|
|
? |
MM0373 |
NUT - M5 X 0.8 |
5 |
|
|
|
|
? |
58F-54-40260 |
PIN |
2 |
|
|
|
|
? |
WB0505 |
FITTING, ELBOW - 90 DEG |
2 |
|
|
|
|
? |
WB0582 |
FITTING, STRAIGHT |
1 |
|
|
|
|
? |
WB0536 |
FITTING, ELBOW - 45 DEG |
1 |
|
|
|
|
? |
WB0557 |
FITTING, TEE |
1 |
|
|
|
|
? |
58F-60-00500 |
CYLINDER (1) |
1 |
|
|
|
|
? |
PB6769 |
COUPLING, MALE |
3 |
|
|
|
|
? |
162144 |
CAP, DUST |
3 |
|
|
|
|
? |
WA4780 |
PLUG, O-RING |
2 |
|
|
|
|
? |
WB0584 |
FITTING, STRAIGHT |
1 |
|
|
|
|
? |
MM0619 |
CAPSCREW - M12 X 1.75 X 35 |
3 |
|
|
|
|
? |
MM0472 |
LOCKWASHER - M12 |
3 |
|
|
|
|
? |
MM0462 |
FLAT WASHER - M12 |
3 |
|
|
|
|
? |
58F-60-41200 |
NOTE: (1) USE 58F-60-41200 SEAL KIT FOR SERVICE. |
|
|
|
|
