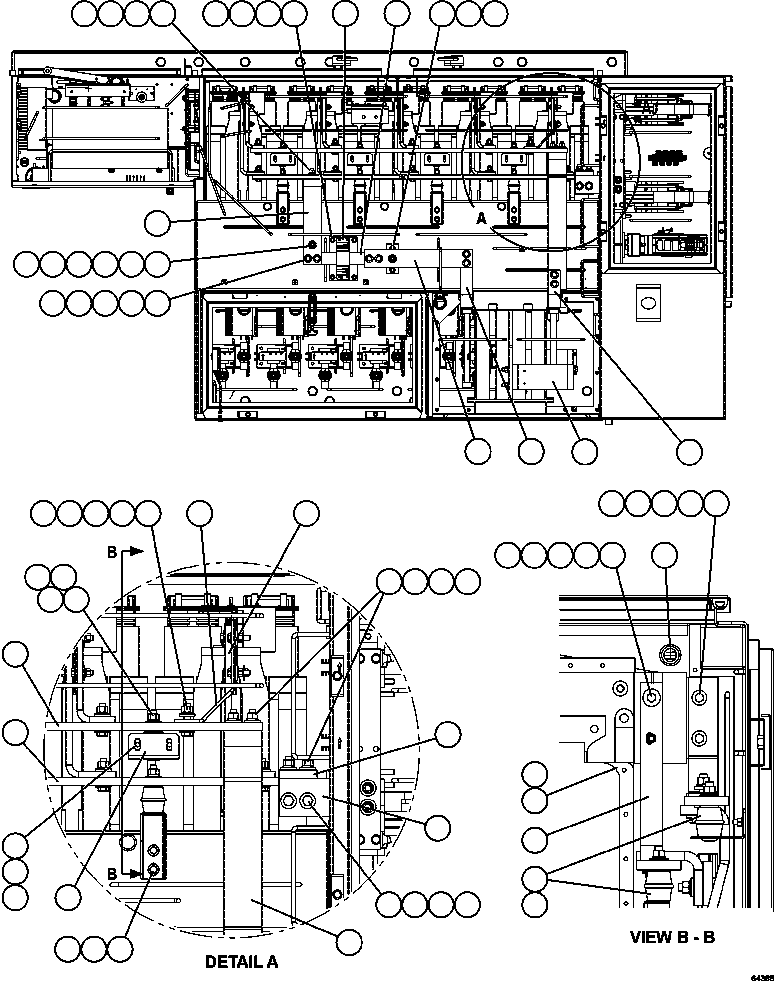

CONTROL CABINET - TOP VIEW 1/2 58F-43-00020(596 : 64388)
Номер на схеме Каталожный номер Название Количество Детали
? XA3594 BUS BAR 1
? GE1400 BUS BAR 1
? XA4250 BUS BAR 1
? XA4249 BUS BAR 1
? GE1401 BUS BAR 1
? GE1402 BUS BAR 1
? GE0756 LINK SENSOR 1
? GE1394 BUS BAR 1
? GE1396 BUS BAR 1
? VE4600 FLAT WASHER - #10
? XA4249 BUS BAR 1
? GE1404 BUS BAR 1
? GE1392 BUS BAR 2
? GE1403 BUS BAR 1
? XA3596 BUS BAR 1
? GE1402 BUS BAR 1
? 58B-43-00660 BUS BAR 5
? GE1412 BUS BAR, VERTICAL 1
? WA0471 CAPSCREW - 1/2" - 13NC X 2 1/4" 1
? VE4699 LOCKWASHER - 1/2"
? VE4698 NUT - 1/2" - 13NC
? VE4519 FLAT WASHER - 1/2"
? VE3030 FLAT WASHER - 1/2"
? VE5062 CAPSCREW - 1/2" - 13NC 4
? GE0581 STUD 2
? PB3348 INSULATOR 26
? GE1381 FLAT WASHER - 5/16"
? VE4696 LOCKWASHER - 5/16"
? TR4731 CAPSCREW - 5/16" - 18NC X 1" 2
? XA3599 BASE ASSEMBLY 1
? SP8417 FLAT WASHER - 1/4"
? DC3584 LOCKWASHER - 1/4"
? VE5882 CAPSCREW - 1/4" - 20NC X 7/8" 6
? VE5013 NUT - 5/16" - 18NC 2
? VE5061 CAPSCREW - 1/2" - 13NC X 2 1/2" 6
? VE4687 LOCKWASHER - 3/8"
? GE1415 BRACKET ASSEMBLY 4
? GE0579 STUD 12
? WA0720 FLAT WASHER - 3/8" (HARDENED)
? TR4434 CAPSCREW - 3/8" - 16NC X 2" 13
? VE4640 CAPSCREW - 3/8" - 16NC X 1 1/2"
? VE3918 WASHER
? TC1233 NUT - 3/8" - 16NC
