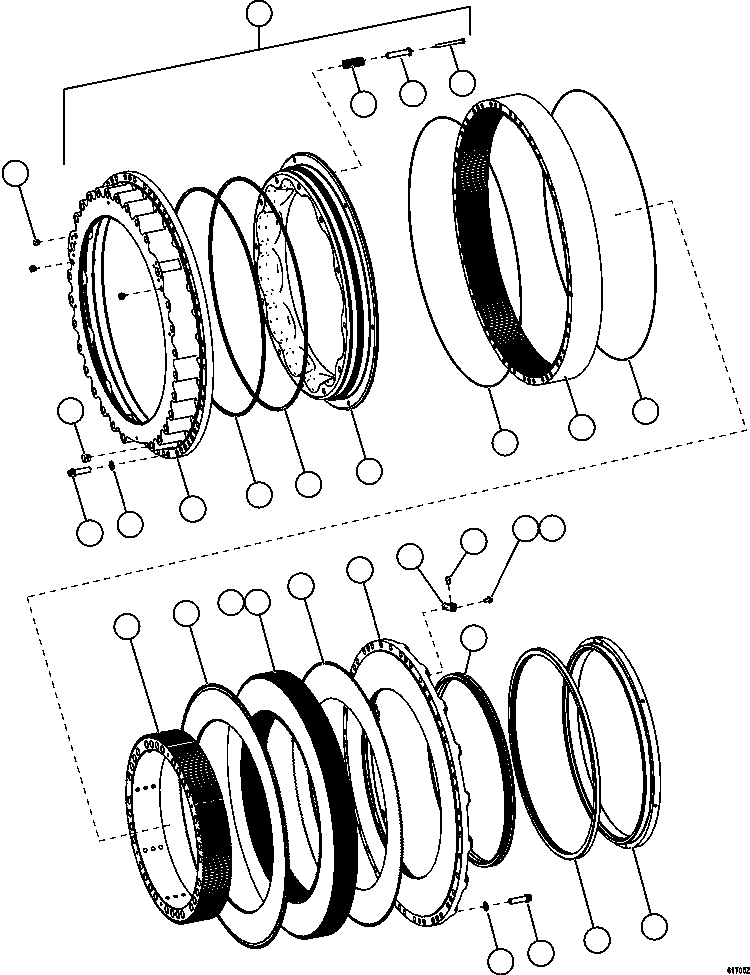

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | EJ6749 | PISTON AND HOUSING ASSEMBLY | 1 | ||||
| ? | EJ6748 | • HOUSING, PISTON | 1 | ||||
| ? | PC1143 | • SEAL | 1 | ||||
| ? | PC1144 | • SEAL | 1 | ||||
| ? | EG4953 | • PISTON | 1 | ||||
| ? | PB8864 | • SPRING | 12 | ||||
| ? | ED3327 | • GUIDE, SPRING | 12 | ||||
| ? | VL1222 | • CAPSCREW - 1/2" - 13NC X 5" | 12 | ||||
| ? | VM0315 | PLUG | 3 | ||||
| ? | WA1589 | CAPSCREW - 7/8" - 9NC X 3" (12 PT) | 102 | ||||
| ? | WA5659 | FLAT WASHER - SPECIAL (HARDENED) | 102 | ||||
| ? | VM0317 | PLUG | 1 | ||||
| ? | ED3339 | GEAR, RING | 1 | ||||
| ? | EH7197 | SEAL, O-RING | 2 | ||||
| ? | ED3343 | GEAR, INNER | 1 | ||||
| ? | EM8367 | DAMPER (1) | 2 | ||||
| ? | EM8365 | DISC, SEPARATOR (1) | 9 | ||||
| ? | EM8366 | DISC, FRICTION (1) | 10 | ||||
| ? | EL9170 | PLATE, BACK | 1 | ||||
| ? | PC0651 | SEAL ASSEMBLY | 1 | ||||
| ? | BF4837 | • SEAL, TORIC | 2 | ||||
| ? | BF4116 | • RING, SEAL | 2 | ||||
| ? | BF4117 | • TOOL, INSTALLATION (2) | 1 | ||||
| ? | PC1431 | SEAL, OIL | 1 | ||||
| ? | EK5888 | CARRIER, SEAL | 1 | ||||
| ? | EL9501 | BRACKET, MOUNTING | 6 | ||||
| ? | D2930 | CAPSCREW, SOCKET HEAD - 1/2" - 13NC X 3/4" (3) | 6 | ||||
| ? | C1612 | CAPSCREW - 1/2" - 13NC X 1" | 12 | ||||
| ? | WA0360 | FLAT WASHER - 1/2" (HARDENED) | 12 | ||||
| ? | XK1161 | NOTE: (1) INCLUDED IN XK1161 BRAKE DISC KIT. | |||||
| ? | (2) NOT INCLUDED IN SEAL ASSEMBLY. | ||||||
| ? | (3) USED FOR ASSEMBLY AND STORAGE ONLY. | ||||||
| ? | REMOVE WHEN INSTALLED ON THE TRUCK. |
