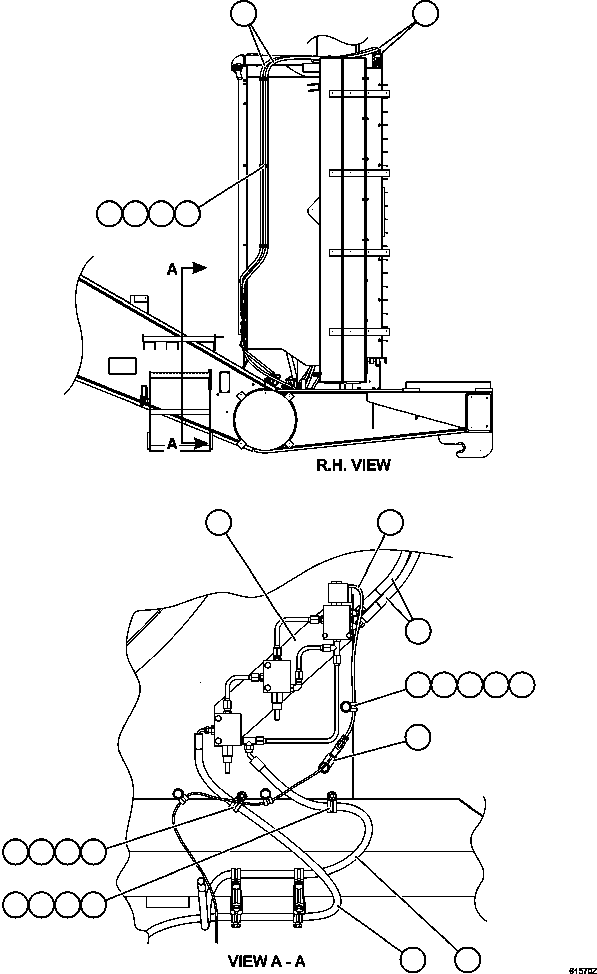

| SHUTTER CONTROL VALVE ASSEMBLY EH3414 | 634 | 41537 |
| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | WB0261 | FITTING, ELBOW - 90 DEG | 2 | ||||
| ? | HA7887 | HOSE | 2 | ||||
| ? | MM0647 | STUD, WELD - M10 X 20 | 6 | ||||
| ? | WB3092 | CLAMP, CUSHIONED - 7/8" | 11 | ||||
| ? | MM0461 | FLAT WASHER - M10 | 6 | ||||
| ? | MM0178 | NUT - M10 X 1.50 | 6 | ||||
| ? | EH3414 | SHUTTER CONTROL VALVE (SEE INDEX) | 1 | 41537 | |||
| ? | HA7837 | HOSE (SUPPLY) | 1 | ||||
| ? | HA7811 | HOSE (RETURN) | 1 | ||||
| ? | EM3430 | HARNESS, SHUTTER CONTROL JUMPER | 1 | ||||
| ? | DL4172 | SLEEVE, INSULATING | 1 | ||||
| ? | SF9896 | KNIFE, DISCONNECT | 1 | ||||
| ? | 08193-21012 | CLIP | 1 | ||||
| ? | WB1301 | CLAMP, CUSHIONED - 1/4" | 3 | ||||
| ? | MM0004 | CAPSCREW - M12 X 1.75 X 20 | 4 | ||||
| ? | MM0462 | FLAT WASHER - M12 | 4 | ||||
| ? | MM0472 | LOCKWASHER - M12 | 4 | ||||
| ? | 01571-01218 | SEAT | 4 | ||||
| ? | WB1303 | CLAMP, CUSHIONED - 3/4" | 1 |
