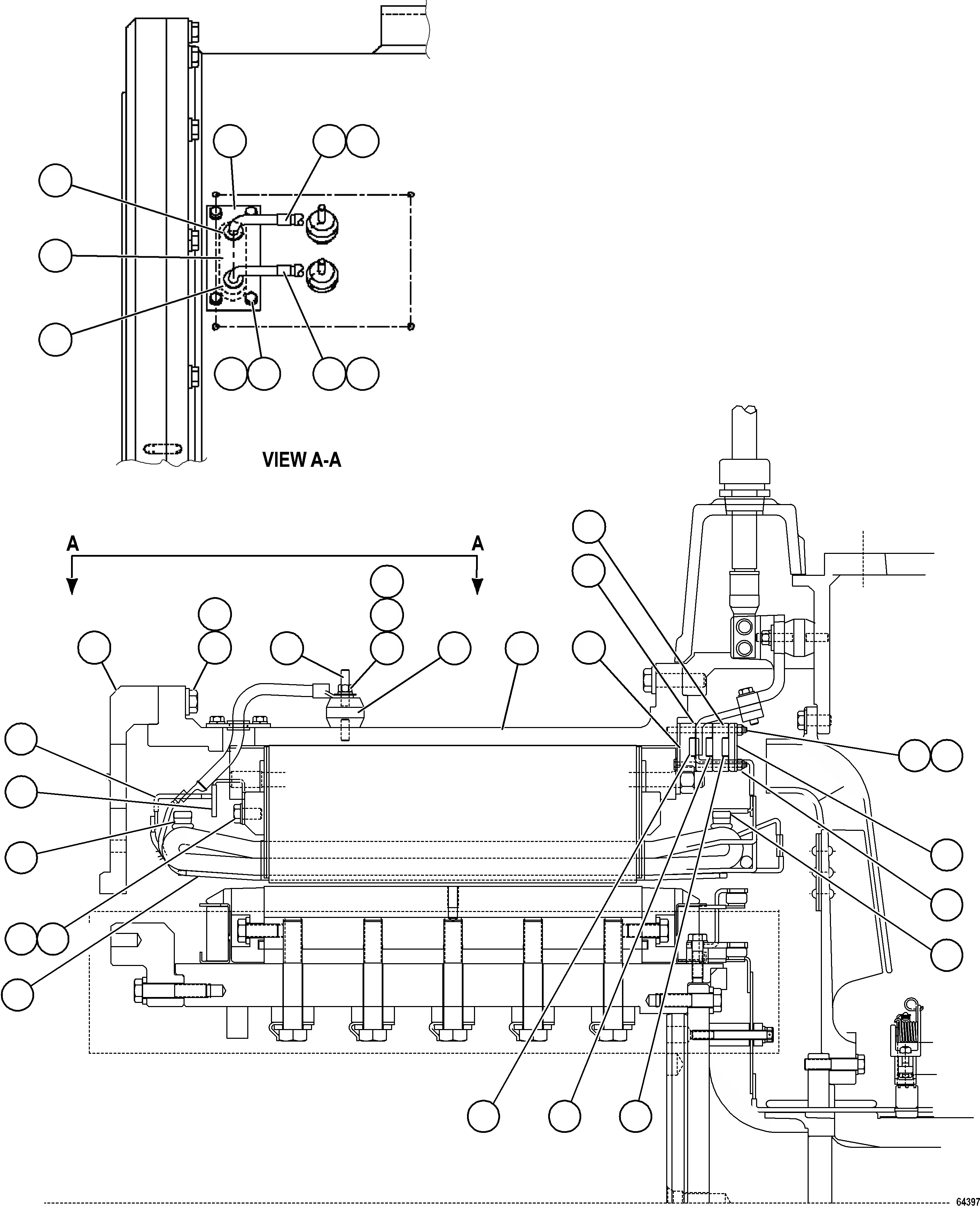

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | GE1132 | STATOR FRAME & CORE ASSEMBLY | 1 | ||||
| ? | 58F-06-04290 | BRACKET ASSEMBLY | 5 | ||||
| ? | 58F-06-04340 | CLAMP, FLAT GLASTIC | 15 | ||||
| ? | 58F-06-04320 | SLEEVE, INSULATED | 10 | ||||
| ? | 58F-06-04310 | STUD | 9 | ||||
| ? | 58F-06-04370 | NUT | 10 | ||||
| ? | 58F-06-04330 | BAR, CLAMP | 5 | ||||
| ? | 58F-06-04350 | CLAMP, NOTCHED GLASTIC | 5 | ||||
| ? | GE1134 | BUS RING, INSULATED | 1 | ||||
| ? | GE1142 | BUS RING, INSULATED (T3) | 1 | ||||
| ? | GE1141 | BUS RING, INSULATED (T2) | 1 | ||||
| ? | GE1140 | BUS RING, INSULATED (T1) | 1 | ||||
| ? | GE1131 | REWIND KIT, STATOR (2) | 1 | ||||
| ? | VE5185 | FLAT WASHER - 1/2" | 18 | ||||
| ? | VE4542 | CAPSCREW - 1/2" - 13NC X 1" | 1 | ||||
| ? | GE1133 | TIE RING, INSULATED | 1 | ||||
| ? | VE4342 | BRACKET | 9 | ||||
| ? | GE1143 | STRAP, NEUTRALIZING | 1 | ||||
| ? | GE1378 | ADAPTER, FRAME | 1 | ||||
| ? | VS6852 | CAPSCREW - 5/8" - 11NC X 2 1/2" | 18 | ||||
| ? | 58F-06-04360 | WASHER, BELLEVILLE | 18 | ||||
| ? | VS6813 | STUD, INSULATED | 2 | ||||
| ? | TC1233 | NUT - 3/8" - 16NC | 2 | ||||
| ? | VE4687 | LOCKWASHER - 3/8" | 6 | ||||
| ? | VE4515 | FLAT WASHER - 3/8" | 2 | ||||
| ? | VE4750 | INSULATOR W/STUD (1) | 2 | ||||
| ? | 58F-06-10950 | CABLE | 2 | ||||
| ? | GE1168 | CABLE MARKER | 1 | ||||
| ? | GE1169 | CABLE MARKER | 1 | ||||
| ? | VE1200 | GROMMET (1) | 2 | ||||
| ? | GE1347 | PAD | 1 | ||||
| ? | XA4107 | COVER | 1 | ||||
| ? | TC1234 | CAPSCREW - 3/8" - 16NC X 3/4" | 4 | ||||
| ? | 58F-MA-AK010 | NOTE: (1) INCLUDED IN 58F-MA-AK010 ALTERNATOR | |||||
| ? | OVERHAUL KIT. | ||||||
| ? | 58F-06-04570 | (2) USE 58F-06-04570 FOR REPLACEMENT OF A | |||||
| ? | SINGLE TERTIARY COIL KIT. |
