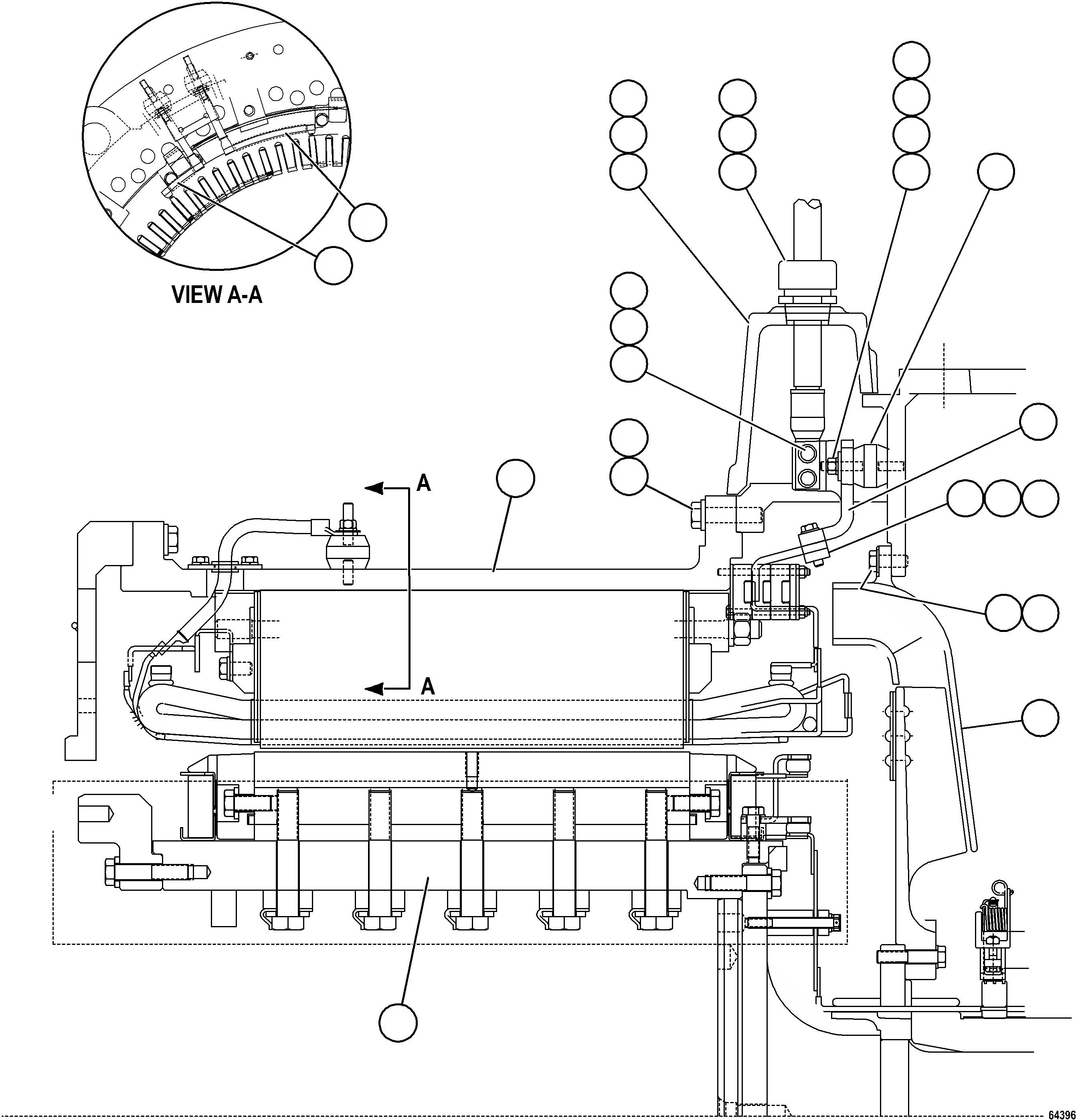

| Наименование | Страница | Код страницы |
|---|---|---|
| ROTOR ASSEMBLY 58F-06-11050 | 690 | 45321 |
| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 58F-06-10960 | STATOR ASSEMBLY | 1 | ||||
| ? | 58F-06-04360 | WASHER, BELLEVILLE | 18 | ||||
| ? | VS6852 | CAPSCREW - 5/8" - 11NC X 2 1/2" | 18 | ||||
| ? | XA4417 | CONNECTOR ASSEMBLY | 1 | ||||
| ? | XA4418 | CONNECTOR ASSEMBLY | 1 | ||||
| ? | VE3027 | FLAT WASHER - 3/8" | 6 | ||||
| ? | VE4702 | CAPSCREW - 3/8" - 16NC X 2 3/4" | 6 | ||||
| ? | GE1153 | BLOCK, TAPPED | 3 | ||||
| ? | VE5185 | FLAT WASHER - 1/2" | 24 | ||||
| ? | VE4999 | CAPSCREW - 1/2" - 13NC X 2" | 4 | ||||
| ? | GE1150 | COVER ASSEMBLY | 1 | ||||
| ? | BF5597 | CEMENT (1 QUART) | |||||
| ? | 58F-06-10850 | CABLE ASSEMBLY - T1 | 2 | ||||
| ? | 58F-06-10880 | CABLE ASSEMBLY - T2 | 2 | ||||
| ? | 58F-06-10890 | CABLE ASSEMBLY - T3 | 2 | ||||
| ? | VS6813 | STUD, INSULATED | 6 | ||||
| ? | VE3918 | WASHER | 6 | ||||
| ? | VE4687 | LOCKWASHER - 3/8" | 6 | ||||
| ? | TC1233 | NUT - 3/8" - 16NC | 6 | ||||
| ? | VE4750 | INSULATOR W/STUD (1) | 6 | ||||
| ? | GE1157 | TERMINAL | 3 | ||||
| ? | VE4640 | CAPSCREW - 3/8" - 16NC X 1 1/2" | 6 | ||||
| ? | GE1154 | BLOCK, TAPPED | 3 | ||||
| ? | VE4518 | CAPSCREW - 1/2" - 13NC X 1 1/2" | 20 | ||||
| ? | GE1145 | SHROUD | 1 | ||||
| ? | 58F-06-11050 | ROTOR ASSEMBLY (SEE INDEX) | 1 | 45321 | |||
| ? | NOTE: NS = NOT SHOWN | ||||||
| ? | VJ2743 | PIN, SPRING DOWEL (FRAME ADAPTER TO STATOR FRAME) | 2 | ||||
| ? | 58F-MA-AK010 | NOTE: (1) INCLUDED IN 58F-MA-AK010 ALTERNATOR | |||||
| ? | OVERHAUL KIT. |
