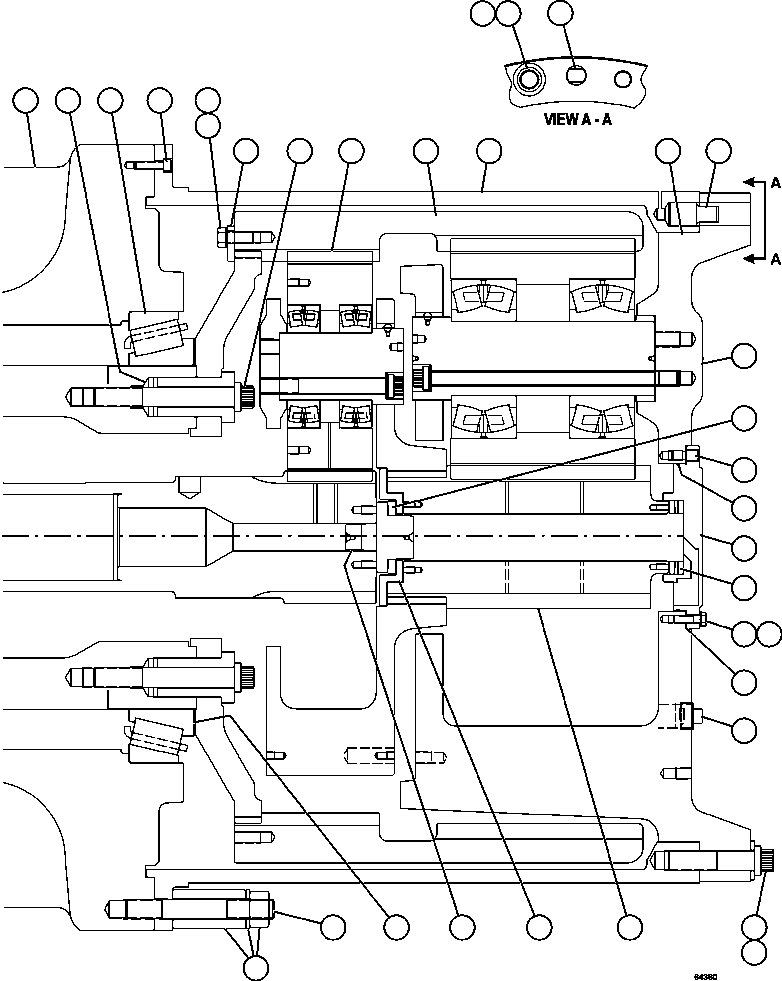

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
GE0892 |
HUB, WHEEL |
1 |
|
|
|
|
? |
GE0896 |
BUSHING |
16 |
|
|
|
|
? |
GE0448 |
LUBRICANT, BONDED |
|
|
|
|
|
? |
GE0056 |
BEARING, ROLLER |
1 |
|
|
|
|
? |
GE0069 |
CAPSCREW, SOCKET HEAD - 1/2" - 13NC X 1 3/4" |
18 |
|
|
|
|
? |
TD7882 |
CAPSCREW - 3/4" - 10NC X 1 3/4" |
16 |
|
|
|
|
? |
BF4617 |
FLAT WASHER - 3/4" |
16 |
|
|
|
|
? |
GE0895 |
PLATE, CLAMP |
8 |
|
|
|
|
? |
XA5599 |
CAPSCREW - 1 1/4" - 12NF X 9" (12 PT) |
16 |
|
|
|
|
? |
GE1315 |
CARRIER ASSEMBLY - HIGH SPEED (SEE INDEX) |
1 |
|
64160 |
|
|
? |
XA5320 |
GEAR, RING |
1 |
|
|
|
|
? |
XA4489 |
TUBE, TORQUE |
1 |
|
|
|
|
? |
VJ9656 |
ADHESIVE, RTV |
|
|
|
|
|
? |
GE0067 |
PIN, LOCATING |
1 |
|
|
|
|
? |
XA4490 |
CARRIER ASSEMBLY - LOW SPEED (SEE INDEX) |
1 |
|
64161 |
|
|
? |
GE1764 |
WASHER, THRUST |
1 |
|
|
|
|
? |
GE1353 |
SCREW, LOCATING |
1 |
|
|
|
|
? |
GE0887 |
O-RING |
1 |
|
|
|
|
? |
GE1346 |
COVER, LOW SPEED CARRIER |
1 |
|
|
|
|
? |
GE1489 |
WASHER, THRUST |
1 |
|
|
|
|
? |
GE0897 |
SHIM SET |
1 |
|
|
|
|
? |
GE0898 |
• SHIM - .015 |
12 |
|
|
|
|
? |
GE0899 |
• SHIM - .030 |
6 |
|
|
|
|
? |
VE5185 |
FLAT WASHER - 1/2" |
11 |
|
|
|
|
? |
TV1918 |
CAPSCREW - 1/2" - 13NC X 1 3/4" |
11 |
|
|
|
|
? |
GE0086 |
PLUG, PIPE |
8 |
|
|
|
|
? |
GE0449 |
FLAT WASHER - 1 1/4" |
35 |
|
|
|
|
? |
GE0068 |
CAPSCREW - 1 1/4" - 12NF X 5 1/2" (12 PT) |
35 |
|
|
|
|
? |
GE1288 |
GEAR, SUN PINION - LOW SPEED |
1 |
|
|
|
|
? |
GE1293 |
RETAINER, HIGH SPEED THRUST BEARING |
1 |
|
|
|
|
? |
GE1820 |
PLUG, SUN PINION |
1 |
|
|
|
|
? |
GE0078 |
SHIM SET |
1 |
|
|
|
|
? |
GE0079 |
• SHIM - .005 |
5 |
|
|
|
|
? |
GE0080 |
• SHIM - .007 |
4 |
|
|
|
|
? |
GE0081 |
• SHIM - .229 |
4 |
|
|
|
|
? |
EM5451 |
STUD - 1 1/4" - 7NC X 10 13/16" |
54 |
|
|
|
|
? |
GE0535 |
BLOCK (1) |
9 |
|
|
|
|
? |
GE0449 |
FLAT WASHER - 1 1/4" (1) |
9 |
|
|
|
|
? |
GE0536 |
NUT - 1 1/4" - 7NC (1) |
9 |
|
|
|
|
? |
|
NOTE: (1) USED FOR SHIPPING ASSEMBLY ONLY OR DURING |
|
|
|
|
|
? |
|
OVERHAUL AND STORAGE OF WHEEL MOTOR. |
|
|
|
|
