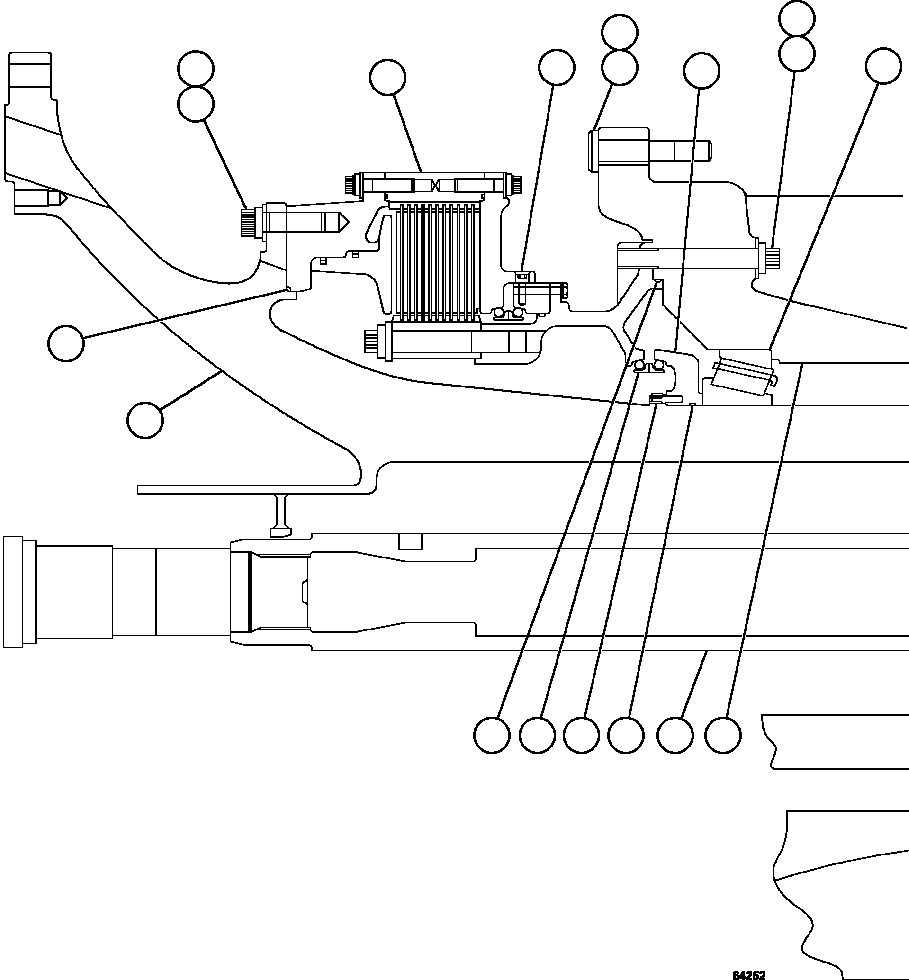

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
GE0708 |
FRAME, WHEEL MOTOR |
1 |
|
|
|
|
? |
XB0834 |
REAR BRAKE ASSEMBLY (1) (SEE INDEX) |
1 |
|
61706 |
|
|
? |
GE0082 |
CAPSCREW - 1 1/4" - 12NF X 3 1/2" (12 PT) |
27 |
|
|
|
|
? |
GE0449 |
FLAT WASHER - 1 1/4" |
54 |
|
|
|
|
? |
EH7196 |
SEAL, O-RING |
1 |
|
|
|
|
? |
GE0533 |
STUD |
57 |
|
|
|
|
? |
GE0088 |
NEVER - SEEZ |
|
|
|
|
|
? |
GE0450 |
CAPSCREW - 1 1/4" - 12NF X 8 1/2" (12 PT) |
27 |
|
|
|
|
? |
GE0055 |
BEARING, ROLLER |
1 |
|
|
|
|
? |
EH0856 |
CARRIER, SEAL (1) |
1 |
|
|
|
|
? |
EH7193 |
O-RING |
1 |
|
|
|
|
? |
SL7740 |
ROLLPIN |
1 |
|
|
|
|
? |
PC0179 |
SEAL ASSEMBLY |
1 |
|
|
|
|
? |
EH7196 |
SEAL, O-RING |
1 |
|
|
|
|
? |
GE1307 |
SHAFT, DRIVE |
1 |
|
|
|
|
? |
D2930 |
CAPSCREW, SOCKET HEAD - 1/2" - 13NC X 3/4" (2) |
6 |
|
|
|
|
? |
58F-30-00090 |
HUB, WHEEL |
1 |
|
|
|
|
? |
|
NOTE: (1) NOT INCLUDED IN ASSEMBLY. |
|
|
|
|
|
? |
|
(2) USED FOR SHIPPING ASSEMBLY ONLY OR DURING |
|
|
|
|
|
? |
|
OVERHAUL AND STORAGE OF WHEEL MOTOR. |
|
|
|
|
