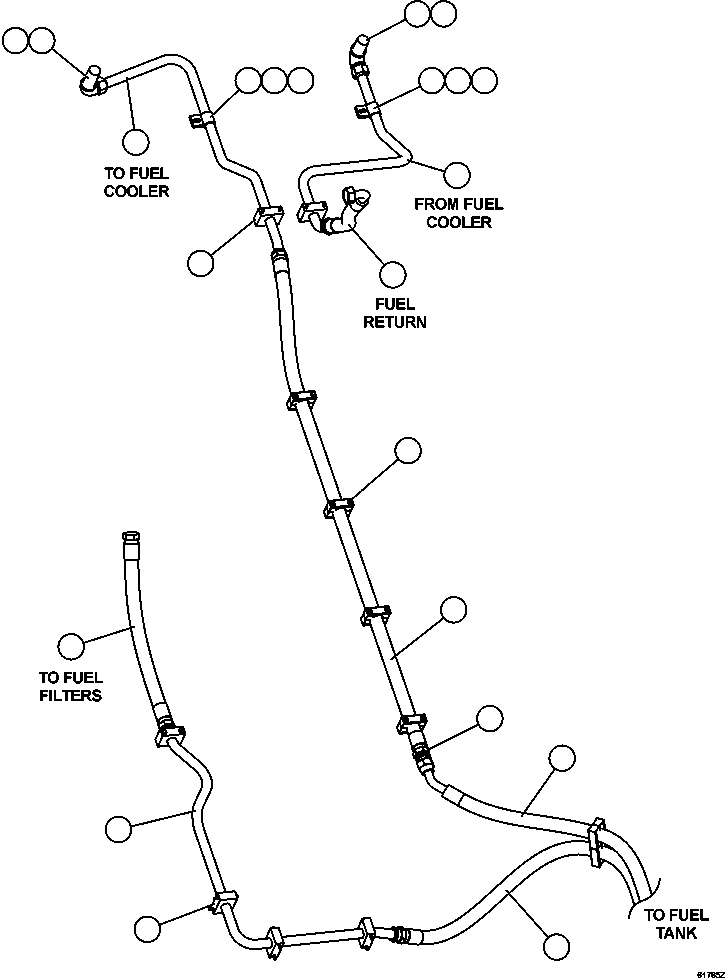

| FUEL COOLER ASSEMBLY XA2799 | 292 | 60817 |
| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | HA8203 | HOSE | 1 | ||||
| ? | EM1955 | TUBE | 1 | ||||
| ? | EJ9743 | TUBE | 1 | ||||
| ? | VM3917 | FITTING, TUBE | 2 | ||||
| ? | SF3670 | NIPPLE - 1 1/2" NPT X 3 1/2" | 1 | ||||
| ? | TC6967 | NIPPLE - 1 1/2" NPT X 4 1/2" | 1 | ||||
| ? | WA4712 | CLAMP, HYDRA ZORB - 2" | 4 | ||||
| ? | HA8448 | HOSE | 1 | ||||
| ? | WB1186 | FITTING, BULKHEAD | 1 | ||||
| ? | HA8460 | HOSE | 1 | ||||
| ? | HA0195 | HOSE | 1 | ||||
| ? | EJ9701 | CLEAT, TUBE | 4 | ||||
| ? | C1613 | CAPSCREW - 1/2" - 13NC X 1 1/4" | 2 | ||||
| ? | TR6008 | FLAT WASHER - 1/2" | 2 | ||||
| ? | EJ9693 | TUBE | 1 | ||||
| ? | HA7983 | HOSE | 1 | ||||
| ? | WA4710 | CLAMP, HYDRA ZORB - 1 1/2" | 6 | ||||
| ? | NOTE: NS = NOT SHOWN | ||||||
| ? | XA2799 | FUEL COOLER ASSEMBLY (1) (SEE INDEX) | 1 | 60817 | |||
| ? | NOTE: (1) SUPPLIED WITH RADIATOR. |
