Содержание Dump Trucks Komatsu AFE59-EQ 930E-4 S/N A31409, A31411, A31417, A31443, A31453, A31478, A31482, A31496, A31505, A31509, A31513, A31533, A31543, A31551, A31579, A31588, A31592 & A31594 FMG(AFE59-EQ)

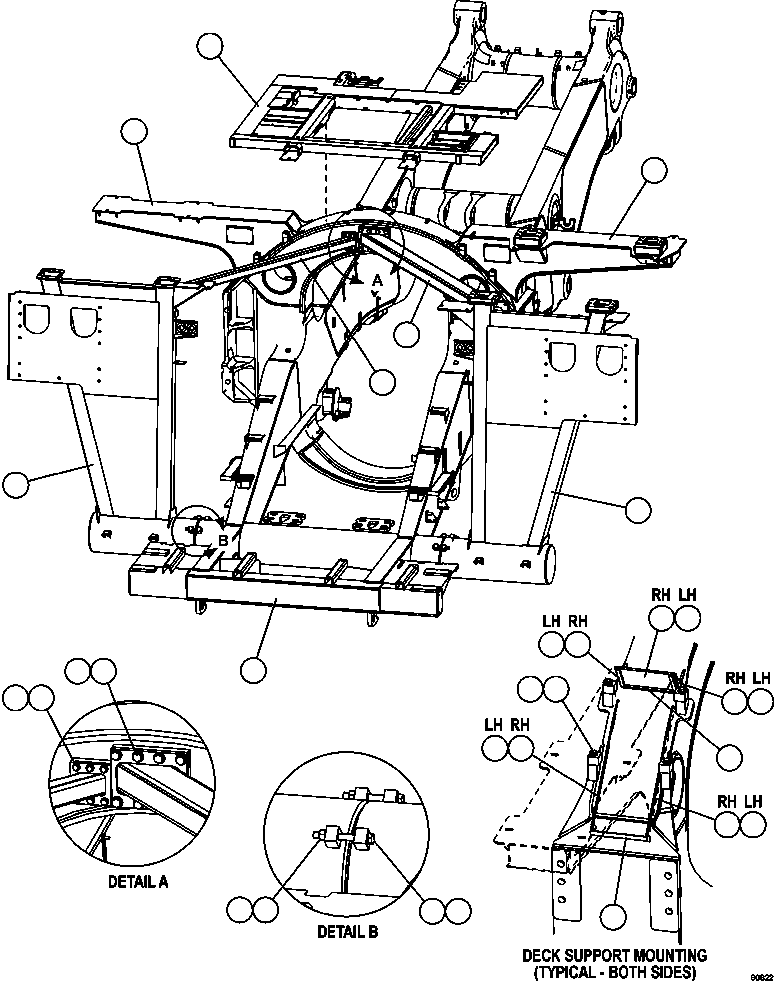

FRAME & UPRIGHTS(012 : 60822)
Номер на схеме Каталожный номер Название Количество Детали
? FRAME, MAIN (1) 1
? UPRIGHT - L.H. (1) 1
? UPRIGHT - R.H. (1) 1
? MM0465 FLAT WASHER - M20 16
? MM0168 CAPSCREW - M20 X 2.50 X 180 8
? MM0182 NUT - M20 X 2.50 8
? TUBE, ROPS - L.H. (1) 1
? TUBE, ROPS - R.H. (1) 1
? 01643-32460 FLAT WASHER - M24 (HARDENED) 16
? MM0058 CAPSCREW - M24 X 3.00 X 60 16
? EL1255 SUPPORT, DECK - R.H. 1
? 01643-31645 FLAT WASHER - M16 (HARDENED) 12
? MM0071 CAPSCREW - M16 X 2.00 X 45 12
? EK3908 BACKER 2
? EK3905 BACKER, VERTICAL - R.H. 2
? EK3904 PLATE, END CAP - R.H. 1
? EM3988 SUPPORT, DECK - CENTER (2) 1
? 58F-46-40010 SUPPORT, DECK - CENTER (3) 1
? 01643-32060 FLAT WASHER - M20 (HARDENED) 8
? MM0109 CAPSCREW - M20 X 2.50 X 90 8
? EL1256 SUPPORT, DECK - L.H. 1
? EK3910 BACKER, VERTICAL - L.H. 2
? EK3914 BACKER - L.H. 2
? EK3909 PLATE, END CAP - L.H. 1
? ED4792 BACKER 2
? EK3915 BACKER - R.H. 2
? NOTE: (1) ORDER FROM FACTORY.
? (2) EFFECTIVE WITH A31409 & A31411 ONLY.
? (3) EFFECTIVE WITH A31417 & UP.
