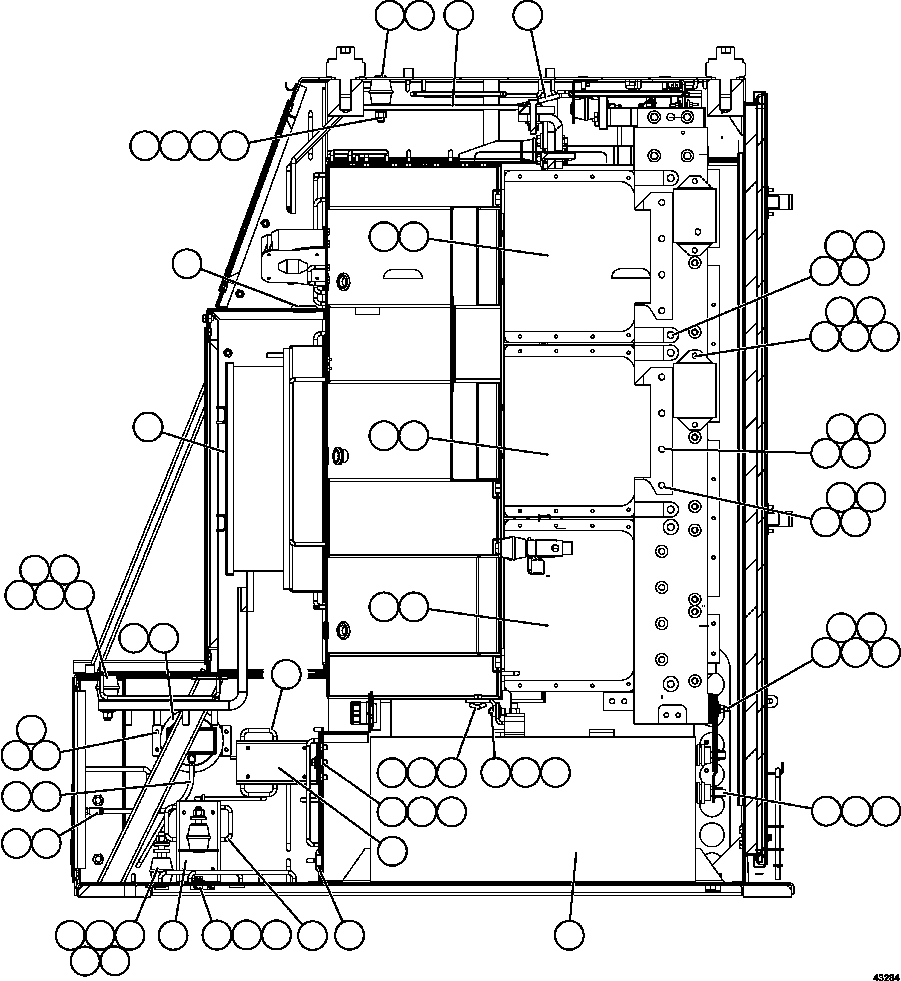

CONTROL CABINET - RIGHT COMPARTMENT PC3166 1/2(642 : 43284)
Наименование Страница Код страницы
RECTIFIER PANEL GE0557 680 64036

Номер на схеме Каталожный номер Название Количество Детали
? VE4698 NUT - 1/2" - 13NC
? VE4699 LOCKWASHER - 1/2"
? VE4519 FLAT WASHER - 1/2"
? VE3030 FLAT WASHER - 1/2"
? PB3348 INSULATOR 35
? XA3143 STUD 30
? XA5279 BUS BAR 1
? XA5277 BUS BAR 1
? GE1255 PANEL, POSITIVE IGBT MODULE 14
? GE1256 PANEL, NEGATIVE IGBT MODULE 14
? GE1382 CAPSCREW - 3/8" - 16NC
? VE3918 FLAT WASHER - 3/8"
? VE4687 LOCKWASHER - 3/8"
? VE4700 NUT - 3/8" - 16NC
? BF0543 CAPSCREW - 5/16" - 18NC X 2 1/2"
? GE1386 MACHINE SCREW - #10 - 32NC X 1 5/8"
? GE1381 FLAT WASHER - 5/16"
? VE4696 LOCKWASHER - 5/16"
? VE5013 NUT - 5/16" - 18NC
? GE1380 CAPSCREW
? VE4640 CAPSCREW - 3/8" - 16NC X 1 1/2"
? VE4515 FLAT WASHER - 3/8"
? VE4490 FLAT WASHER - 1/2"
? XA4876 CAPACITOR, IGBT INVERTER 10
? VE4641 CAPSCREW - 3/8" - 16NC X 1 1/4"
? GE0240 GROMMET 5
? VE4739 CAPSCREW - 3/8" - 16NC X 1"
? XA3722 BRACKET ASSEMBLY, MOUNTING 6
? XA5281 BRACKET ASSEMBLY, MOUNTING 6
? XA5803 COUPLING 1
? XA5806 FITTING, INLINE FILTER 2
? XA5812 ADAPTER 2
? XA5813 TUBING
? VE4902 NUT - 1/4" - 20NC
? XA5003 LOCKWASHER - 1/4"
? VE7202 WASHER - 1/4" 4
? PB4673 PRESSURE SWITCH, BLOWER 1
? GE0557 PANEL, RECTIFIER (SEE INDEX) 1 64036
? GE0170 SENSOR, AC-DC 16
? GE0240 GROMMET 5
? GE0579 STUD 10
