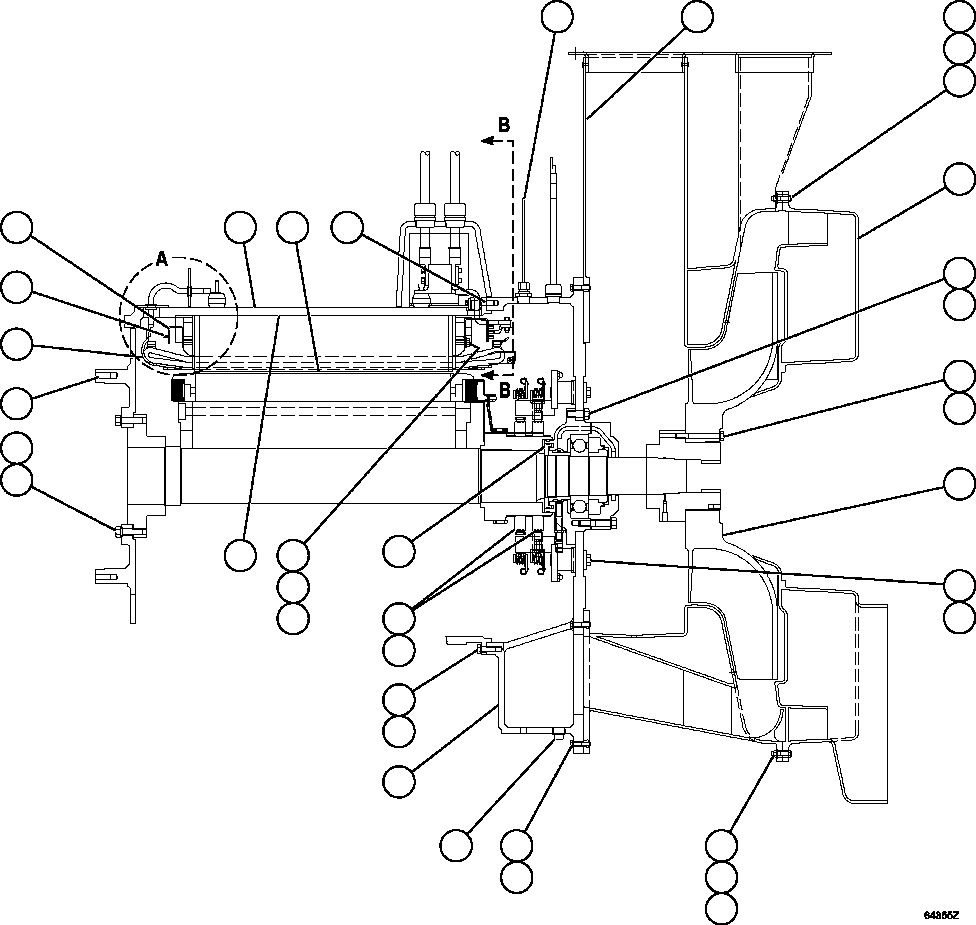

| Наименование | Страница | Код страницы |
|---|---|---|
| ALTERNATOR - BRUSH HOLDER ASSM VJ1024 | 712 | 64030 |
| ALTERNATOR - STATOR ASSEMBLY XA3159 | 716 | 64196 |
| ALTERNATOR - ROTOR ASSEMBLY XA4402 | 714 | 64354 |
| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | XA4446 | ADAPTER | 1 | ||||
| ? | VJ1073 | CAPSCREW - 5/8" - 18NF X 2 1/4" | 15 | ||||
| ? | VE5184 | FLAT WASHER - 5/8" | 21 | ||||
| ? | GE1167 | STATOR REWIND KIT (1) | 1 | ||||
| ? | VE1887 | STRAP, CONNECTION (1) | 1 | ||||
| ? | VE4342 | BRACKET, INSULATED (1) | 7 | ||||
| ? | XA3159 | STATOR ASSEMBLY (SEE INDEX) | 1 | 64196 | |||
| ? | XA4402 | ROTOR ASSEMBLY (SEE INDEX) | 1 | 64354 | |||
| ? | VJ2743 | ROLLPIN | 1 | ||||
| ? | XA3160 | STATOR FRAME & CORE ASSEMBLY (1) | 1 | ||||
| ? | VE2753 | BRACKET | 7 | ||||
| ? | VE4542 | CAPSCREW - 1/2" - 13NC X 1" (1) | 28 | ||||
| ? | VE5185 | FLAT WASHER - 1/2" (1) | 28 | ||||
| ? | GE0328 | CABLE ASSEMBLY (SPEED SENSOR) | 1 | ||||
| ? | XA4447 | HOUSING, INLET | 1 | ||||
| ? | VE4500 | CAPSCREW - 3/8" - 16NC X 1 3/4" | 44 | ||||
| ? | VE3027 | FLAT WASHER - 3/8" | 65 | ||||
| ? | TC1233 | NUT - 3/8" - 16NC | 21 | ||||
| ? | GE1081 | HOUSING, OUTLET | 1 | ||||
| ? | C1629 | CAPSCREW - 5/8" - 11NC X 1 3/4" | 6 | ||||
| ? | VE4998 | CAPSCREW - 1/2" - 13NC X 4 1/2" | 12 | ||||
| ? | VE5185 | FLAT WASHER - 1/2" | 20 | ||||
| ? | GE1082 | IMPELLER | 1 | ||||
| ? | GE0141 | CAPSCREW - 5/8" - 11NC X 2 1/4" | 6 | ||||
| ? | VE4631 | FLAT WASHER - 5/8" | 6 | ||||
| ? | GE1172 | PLUG, PIPE - 1" | 1 | ||||
| ? | VJ9656 | LIQUID GASKET | |||||
| ? | GE1079 | HEAD, FRAME | 1 | ||||
| ? | GE0790 | LUBRIPLATE | |||||
| ? | VG8030 | CAPSCREW - 1/2" - 13NC X 1 1/2" | 8 | ||||
| ? | VE8444 | BRUSH, CARBON | 6 | ||||
| ? | VJ1024 | HOLDER, BRUSH (SEE INDEX) | 6 | 64030 | |||
| ? | VE7209 | SEAL, V-RING | 1 | ||||
| ? | NOTE: (1) INCLUDED IN XA3159 STATOR ASSEMBLY. | ||||||
| ? | (SEE FOLLOWING PAGES FOR DETAIL A AND VIEW B-B.) |
