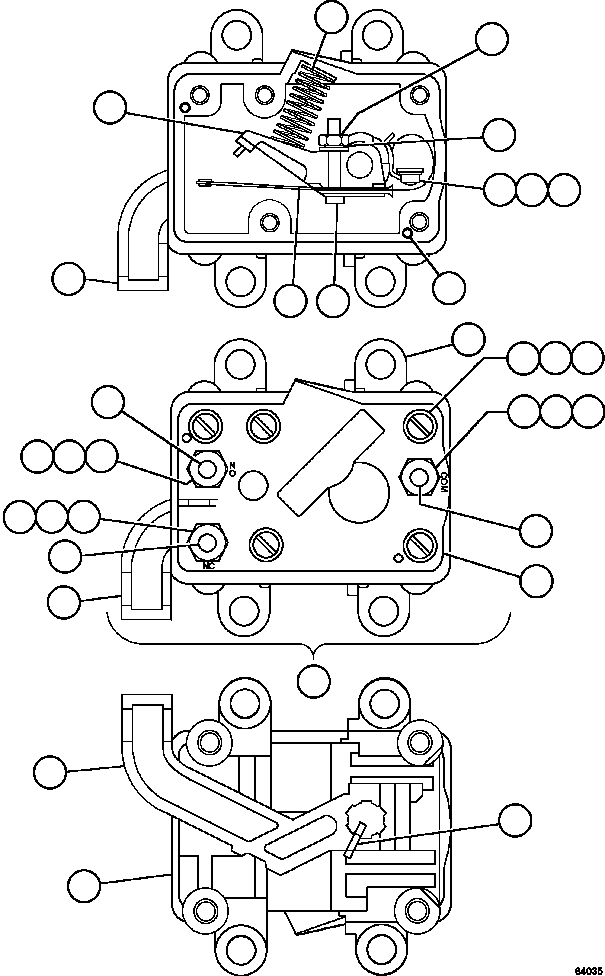

POSITION SENSOR INTERLOCK VE3530(712 : 64035)
Номер на схеме Каталожный номер Название Количество Детали
? VE3530 INTERLOCK, POSITION SENSOR 1
? BOX 1
? VE1142 PIN 2
? VE1142 PIN 1
? VE3616 INNER ARM ASSEMBLY 1
? VE0735 SPRING 1
? VE5751 MACHINE SCREW - #4 - 40NC X 5/8" 1
? VE4908 LOCKWASHER - 1/4" 1
? VE4909 NUT - #4 - 40NC 1
? VE1143 SPRING 1
? VE4405 STUD ASSEMBLY 1
? VE4406 STUD ASSEMBLY 1
? VE5752 STUD, TAPPED 1
? VE5753 MACHINE SCREW - #4 - 40NC X 1/4" 1
? VE4908 LOCKWASHER - 1/4" 1
? VE4907 FLAT WASHER - 1/4" 1
? BF0020 MACHINE SCREW - #6 - 32NC X 5/8" 5
? TR5445 LOCKWASHER - 1/2" 5
? HE5125 FLAT WASHER - #6 5
? VE5757 OUTER ARM ASSEMBLY 1
? SF2755 NUT - #10 - 32NF 3
? VC1390 LOCKWASHER - 5/8" 3
? VS6662 FLAT WASHER - #10 3
? BF3174 COVER 1
