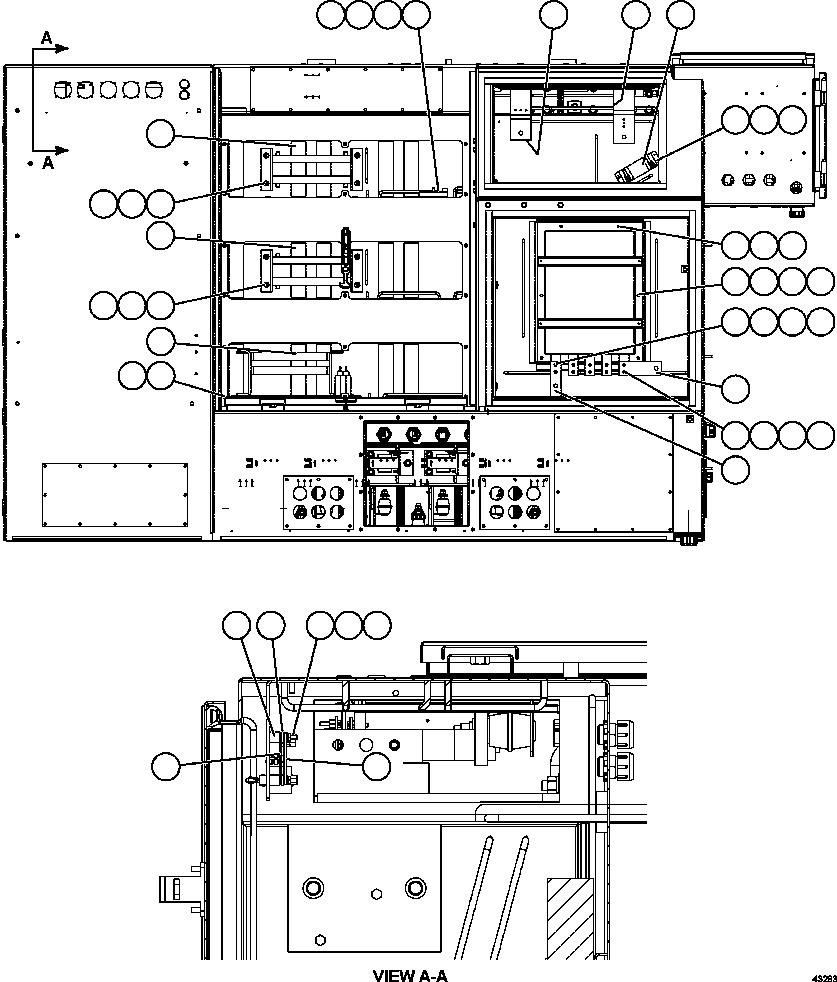

CONTROL CABINET - REAR VIEW 58E-43-00020(682 : 43283)
Номер на схеме Каталожный номер Название Количество Детали
? BF0931 PANEL, AIR TEMPERATURE 1
? VE5042 • BOARD, TERMINAL 1
? BF0932 • SENSOR, THERMISTOR 1
? VE5013 NUT - 5/16" - 18NC
? VE4696 LOCKWASHER - 5/16"
? VE4343 FLAT WASHER - 5/16"
? XA5277 BUS BAR 1
? XA5279 BUS BAR 1
? GE0756 SENSOR, LINK 1
? VE4602 NUT - #10 - 32NF
? VE4601 LOCKWASHER - #10
? VE4655 FLAT WASHER - #10
? VE4700 NUT - 3/8" - 16NC
? VE4687 LOCKWASHER - 3/8"
? VE4515 FLAT WASHER - 3/8"
? VE4640 CAPSCREW - 3/8" - 16NC X 1 1/2"
? XA4255 CAPSCREW - 3/8" - 16NC X 2"
? XA5280 BUS BAR 1
? VE4500 CAPSCREW - 3/8" - 16NC X 1 3/4"
? XA5276 BUS BAR 1
? VE4608 SCREW
? GE0148 PANEL ASSEMBLY, FILTER 1
? VE4379 • RESISTOR 3
? VE0066 • RESISTOR - 250 OHM 6
? VE3846 • CAPACITOR 3
? VE4902 NUT - 1/4" - 20NC
? XA5003 LOCKWASHER - 1/4"
? XA4233 FLAT WASHER - 1/4"
? GE0860 RESISTOR 2
? GE1177 • RESISTOR 1
? VE1959 • BUSHING 1
? GE1342 • STRIP, CONNECTION 1
? 58B-43-00310 SHIELD, GLASTIC 1
? VE4602 NUT - #10 - 32NF
? VE4601 LOCKWASHER - #10
? VE4600 FLAT WASHER - #10
? 58B-43-00250 FLAT WASHER 4
? PB3606 SPACER 8
? GE0177 BOARD, PRINTED WIRE 2
