Содержание Dump Trucks Komatsu AFE57-FN 830E-1AC S/N A30688-A30689, A30698-A30703, A30705-A30708, A30713-A30714, A30728-A30731, A30736-A30737, A30749-A30752, A30756, A30776-A30778, A30788-A30790, A30803, A30805-A30806, A30817, A30834 & A30847 - A30850 BROCKMAN / HOPE DO(AFE57-FN)

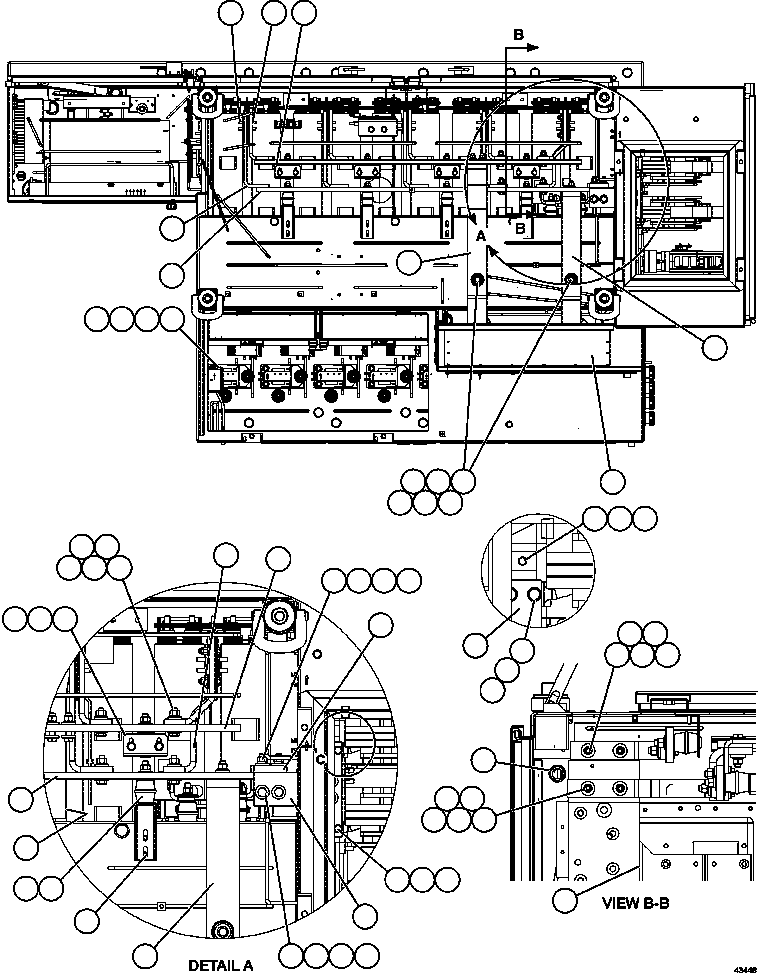

CONTROL CABINET - TOP VIEW 58E-43-00020(680 : 43448)
Номер на схеме Каталожный номер Название Количество Детали
? GE1379 PLUG 8
? XA4249 BUS BAR 4
? GE1401 BUS BAR 1
? XA5277 BUS BAR 1
? XA5279 BUS BAR 1
? GE0756 SENSOR, LINK 1
? PB3348 INSULATOR 35
? XA3143 STUD 30
? VE3030 FLAT WASHER - 1/2"
? VE4519 FLAT WASHER - 1/2"
? VE4699 LOCKWASHER - 1/2"
? VE4698 NUT - 1/2" - 13NC
? GE1399 BUS BAR 1
? XA4254 CAPSCREW - 1/2" - 13NC X 2 1/4"
? GE1396 BUS BAR 1
? XA5278 BUS BAR 1
? XA4255 CAPSCREW - 3/8" - 16NC X 2" 13
? VE4516 WASHER 12
? VE4515 FLAT WASHER - 3/8"
? GE1394 BUS BAR 1
? VE5061 CAPSCREW 4
? TR4731 CAPSCREW - 5/16" - 18NC X 1" 2
? GE0579 STUD 10
? XA5280 BUS BAR 1
? GE1415 BRACKET ASSEMBLY 4
? PB4673 PRESSURE SWITCH, BLOWER 1
? VE4902 NUT - 1/4" - 20NC
? XA5003 LOCKWASHER - 1/4"
? XA4233 FLAT WASHER - 1/4"
? GE1402 BUS BAR 1
? GE1406 BUS BAR 4
? GE1416 GROMMET 1
? VE4640 CAPSCREW - 3/8" - 16NC X 1 1/2"
? WA0720 FLAT WASHER - 3/8" 10
? VE3918 FLAT WASHER - 3/8"
? VE4687 LOCKWASHER - 3/8"
? VE4700 NUT - 3/8" - 16NC
? XA4255 CAPSCREW - 3/8" - 16NC X 2"
? GE1420 CAPSCREW - 3/8" - 16NC X 2 1/2" 4
? VE4500 CAPSCREW - 3/8" - 16NC X 1 3/4"
