Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |

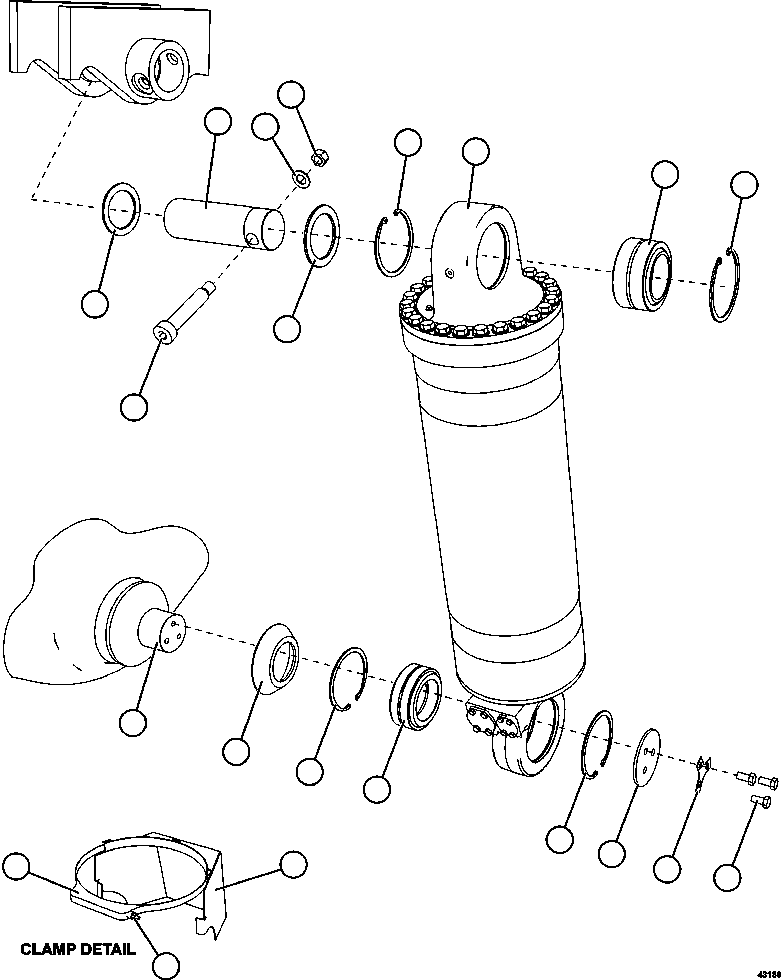

EM8353 |
HOIST CYLINDER ASSEMBLY W/BEARINGS |
1 |
|
|
|
|
? |
EM8354 |
• HOIST CYLINDER ASSEMBLY (1) (SEE INDEX) |
1 |
|
42330 |
|
|
? |
VN9346 |
• RING, RETAINER (2) |
2 |
|
|
|
|
? |
VA0538 |
• BUSHING, BALL (2) |
1 |
|
|
|
|
? |
VN9351 |
• RING, RETAINER |
2 |
|
|
|
|
? |
PB0027 |
• BEARING, SPHERICAL |
1 |
|
|
|
|
? |
PC3201 |
LOCKNUT - 1 1/8" - 7NC (2) |
1 |
|
|
|
|
? |
WA0365 |
FLAT WASHER - 1 1/4" (2) |
1 |
|
|
|
|
? |
TY7320 |
PIN, UPPER HOIST (2) |
1 |
|
|
|
|
? |
TZ2549 |
COVER |
1 |
|
|
|
|
? |
EM8117 |
SHOULDER BOLT - 1 1/4" - 7NC X 7" (2) |
1 |
|
|
|
|
? |
VA5501 |
SPACER, BEARING |
1 |
|
|
|
|
? |
VA4707 |
PLATE, RETAINING |
1 |
|
|
|
|
? |
TX3664 |
PLATE, LOCKING |
1 |
|
|
|
|
? |
C7645 |
CAPSCREW - 3/4" - 10NC X 1 1/2" |
3 |
|
|
|
|
? |
TR9180 |
JAM NUT - 5/16" - 24NF |
1 |
|
|
|
|
? |
TZ3107 |
CLAMP, T-BOLT |
1 |
|
|
|
|
? |
XB9565 |
SPACER |
2 |
|
|
|
|
? |
JG9884 |
BEARING, HOIST |
1 |
|
|
|
|
? |
|
NOTE: (1) NOT SERVICED SEPARATELY. ORDER EM8353. |
|
|
|
|
|
? |
AK5667 |
(2) INCLUDED IN UPPER HOIST PIN KIT AK5667. |
|
|
|
|
|
? |
|
(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
|
|
|
|
