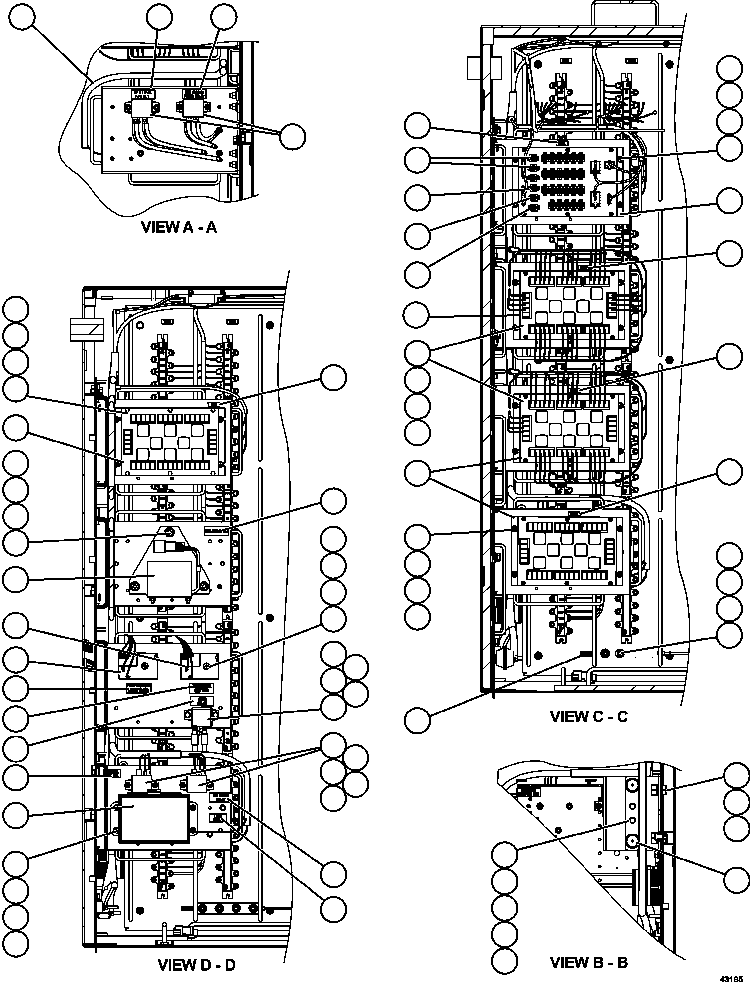

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
WB3298 |
NAME PLATE - GROUND LEVEL POWER RELAY |
1 |
|
|
|
|
? |
MM0027 |
CAPSCREW - M6 X 1.00 X 25 |
26 |
|
|
|
|
? |
MM0373 |
NUT - M5 X 0.8 |
24 |
|
|
|
|
? |
MM0459 |
FLAT WASHER - M6 |
36 |
|
|
|
|
? |
MM0379 |
LOCKWASHER - M5 |
30 |
|
|
|
|
? |
PC2644 |
TIMER, 2 HR DELAY |
2 |
|
|
|
|
? |
MM0363 |
CAPSCREW - M6 X 1.00 X 40 |
2 |
|
|
|
|
? |
WB3522 |
NAME PLATE - PMT |
2 |
|
|
|
|
? |
PB7276 |
RELAY - 24V, 50 AMP |
5 |
|
|
|
|
? |
WB3521 |
NAME PLATE - EMT |
2 |
|
|
|
|
? |
MM0019 |
CAPSCREW - M6 X 1.00 X 16 |
4 |
|
|
|
|
? |
WB2835 |
NAME PLATE - KEY SWITCH POWER RELAY |
1 |
|
|
|
|
? |
EM8242 |
HARNESS, AUXILIARY CONTROL CABINET INTERNAL |
1 |
|
|
|
|
? |
58B-06-00250 |
• RESISTOR (22,100 OHM) |
1 |
|
|
|
|
? |
58B-06-00120 |
• RESISTOR (2 KOHM, 2W) |
1 |
|
|
|
|
? |
PC2399 |
• FUSE - 1 AMP |
1 |
|
|
|
|
? |
EK0744 |
DIODE, 40 AMP |
2 |
|
|
|
|
? |
EK7515 |
BRACKET, INSULATED |
1 |
|
|
|
|
? |
TR6643 |
NUT - 1/2" - 13NC |
2 |
|
|
|
|
? |
TR5445 |
LOCKWASHER - 1/2" |
2 |
|
|
|
|
? |
MM0176 |
NUT - M6 X 1.00 |
10 |
|
|
|
|
? |
MM0469 |
LOCKWASHER - M6 |
10 |
|
|
|
|
? |
EK7516 |
BUS BAR |
1 |
|
|
|
|
? |
MM0025 |
CAPSCREW - M6 X 1.00 X 20 |
6 |
|
|
|
|
? |
EC8825 |
NAME PLATE - DB1 |
1 |
|
|
|
|
? |
EC8824 |
NAME PLATE - RB6 |
1 |
|
|
|
|
? |
WB2280 |
NAME PLATE - RB7 |
1 |
|
|
|
|
? |
WB3237 |
NAME PLATE - RB9 |
1 |
|
|
|
|
? |
TR1307 |
FLAT WASHER - 1/4" |
8 |
|
|
|
|
? |
EK4993 |
DIODE BOARD ASSEMBLY - DB1 (SEE FIG 55613) |
1 |
|
55613 |
|
|
? |
EK4991 |
RELAY BOARD ASSEMBLY (SEE FIG 55613) |
4 |
|
55613 |
|
|
? |
PC2667 |
TIMER, AUTO LUBE |
1 |
|
|
|
|
? |
7861-92-5330 |
SENSOR, ANGLE |
1 |
|
|
|
|
? |
TG5720 |
CAPSCREW - 3/8" - 16NC X 1" |
3 |
|
|
|
|
? |
TR9008 |
JAM NUT - 3/8" - 16NC |
3 |
|
|
|
|
? |
TC1231 |
LOCKWASHER - 3/8" |
2 |
|
|
|
|
? |
TR4436 |
FLAT WASHER - 3/8" |
2 |
|
|
|
|
? |
WB2733 |
NAME PLATE - RB8 |
1 |
|
|
|
|
? |
EL7628 |
NAME PLATE - INCLINOMETER |
1 |
|
|
|
|
? |
WB2836 |
NAME PLATE - 12V POWER RELAY |
1 |
|
|
|
|
? |
WB2289 |
NAME PLATE - CONTROL POWER RELAY |
1 |
|
|
|
|
? |
WB2281 |
NAME PLATE - LUBE TIMER |
1 |
|
|
|
|
? |
EG8333 |
RESISTOR - 20 OHM |
1 |
|
|
|
|
? |
SM3124 |
DIODE |
1 |
|
|
|
|
? |
EG0664 |
RESISTOR - 270 OHM |
1 |
|
|
|
|
? |
TD1549 |
NUT - 1/4" - 20NC |
4 |
|
|
|
|
? |
DC3584 |
LOCKWASHER - 1/4" |
8 |
|
|
|
|
? |
EL7629 |
NAME PLATE - GB32 |
1 |
|
|
|
|
? |
ED0913 |
ROD, THREADED - 1/4" |
4 |
|
|
|
|
? |
WB3731 |
NAME PLATE - HORN RELAY |
1 |
|
|
|
|
? |
XB5358 |
RESISTOR - 6.8 K OHM |
2 |
|
|
|
