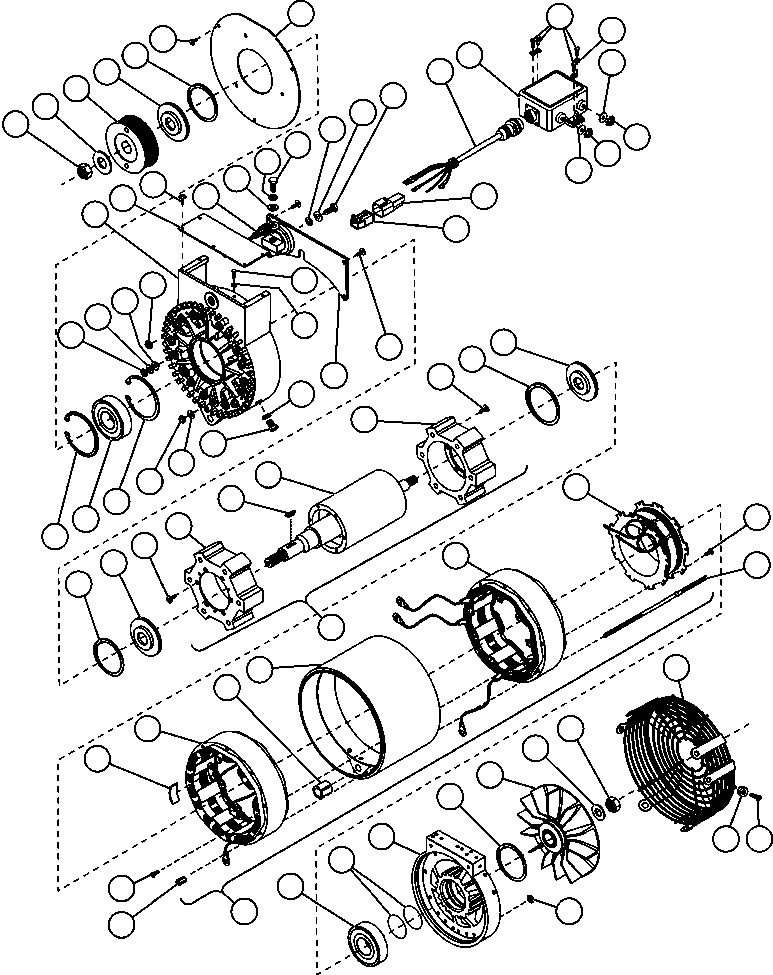

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | BF4962 | LOCKNUT - 5/8" - 18NF (2)/(3) | 1 | ||||
| ? | BF4963 | WASHER, BELLEVILLE (2)/(3) | 1 | ||||
| ? | PULLEY (1) | 1 | |||||
| ? | BF4957 | BUSHING, PULLEY | 1 | ||||
| ? | BF4864 | RING, RETAINING (3) | 2 | ||||
| ? | BF1970 | PLATE, COVER | 1 | ||||
| ? | BF1989 | RING, RETAINING - BEVELED (2)/(3) | 1 | ||||
| ? | BF4865 | BEARING, FRONT | 1 | ||||
| ? | BF1988 | RING, RETAINING - BEVELED (2)/(3) | 1 | ||||
| ? | XA2098 | HOUSING, DRIVE END | 1 | ||||
| ? | XA3295 | • COVER, CONTROL UNIT | 1 | ||||
| ? | XA3302 | • SWITCH, THERMAL | 1 | ||||
| ? | XA2113 | • CAPSCREW - 1/2" - 13NC X 1" (2)/(3) | 1 | ||||
| ? | XA3312 | • LOCKWASHER - 1/2" (3) | 1 | ||||
| ? | XA3313 | • FLAT WASHER - 1/2" (3) | 1 | ||||
| ? | XA0188 | • COVER, STUD ASSEMBLY | 1 | ||||
| ? | BF4967 | • CAPSCREW - M12 X 1.75 X 25 (2)/(3) | 1 | ||||
| ? | BF4966 | • LOCKWASHER - M12 (2)/(3) | 1 | ||||
| ? | BF1996 | • FLAT WASHER - M12 (2)/(3) | 1 | ||||
| ? | XA3601 | • SHELL, CONNECTOR - MALE | 1 | ||||
| ? | XA3602 | • SHELL, CONNECTOR - FEMALE | 1 | ||||
| ? | XA2130 | • HARNESS | 1 | ||||
| ? | XA2112 | • SCREW - #8 - 32NC X 3/8" (2)/(3) | 15 | ||||
| ? | XA2122 | • JAM NUT - 1/4" - 28NF (2)/(3) | 18 | ||||
| ? | XA2121 | • FLAT WASHER - 1/4" (2)/(3) | 12 | ||||
| ? | XA2120 | • INSULATOR (3) | 12 | ||||
| ? | BF2002 | • LOCKNUT - #8 - 32NC (2)/(3)/(4) | 18 | ||||
| ? | BF4973 | • FLAT WASHER - 1/4" (2)/(3) | 6 | ||||
| ? | BF4969 | • CAPSCREW - M10 X 1.50 X 20 (2)/(3) | 2 | ||||
| ? | BF4968 | • LOCKWASHER - M10 (2)/(3) | 2 | ||||
| ? | BF4980 | • LOCKWASHER - 3/8" (2)/(3) | 1 | ||||
| ? | BF4979 | • CAPSCREW - M10 X 1.40 X 20 (2)/(3) | 1 | ||||
| ? | XA2109 | REGULATOR | 1 | ||||
| ? | XA2117 | • LOCKNUT - M6 X 1.00 (2)/(3) | 2 | ||||
| ? | XA2116 | • WASHER, BELLEVILLE (2)/(3) | 1 | ||||
| ? | BF4970 | SCREW, HEX HEAD - M5 X 0.8 X 12 (2)/(3) | 4 | ||||
| ? | XA2114 | WASHER, BELLEVILLE (3) | 2 | ||||
| ? | XA2118 | WASHER, BELLEVILLE (2)/(3) | 2 | ||||
| ? | XA2115 | NUT - M5 X 0.8 (2)/(3) | 1 | ||||
| ? | BF4860 | BUSHING, PULLEY | 1 | ||||
| ? | XA2099 | SHAFT & CORE, ROTOR ASSEMBLY | 1 | ||||
| ? | BF3719 | • CAPSCREW - #10 - 32NF X 1/2" (2)/(3) | 12 | ||||
| ? | XA2100 | • ROTOR ASSEMBLY | 2 | ||||
| ? | XA2101 | • SHAFT & CORE ASSEMBLY | 1 | ||||
| ? | BF1999 | • KEY, WOODRUFF - 5/32" X 3/4" (2)/(3) | 1 | ||||
| ? | XA2102 | RING, CARRIER | 1 | ||||
| ? | XA2104 | FIELD COIL ASSEMBLY | 1 | ||||
| ? | BF1981 | • BUSHING, TENSION | 1 | ||||
| ? | • SHELL (2) | 1 | |||||
| ? | XA2105 | • STATOR, DRIVE END | 1 | ||||
| ? | XA2106 | • STATOR, ANTI-DRIVE END | 1 | ||||
| ? | BF3723 | • NUT - #8 - 32NC (2)/(3)/(5) | 9 | ||||
| ? | BF4978 | • WEDGE, STATOR (5) | 6 | ||||
| ? | XA3304 | • COIL, FIELD | 1 | ||||
| ? | BF3722 | • • SCREW, PAN HEAD - #8 - 32NC X 3/ | 16 | ||||
| ? | BF1980 | • STUD - #8 - 32NC X 8 5/8" | 9 | ||||
| ? | XA2108 | BEARING, ANTI-DRIVE END | 1 | ||||
| ? | XA2107 | HOUSING, ANTI-DRIVE END | 1 | ||||
| ? | XA2110 | • O-RING (3) | 2 | ||||
| ? | XA2096 | FAN | 1 | ||||
| ? | XA2103 | • RING, SPIRAL (3) | 2 | ||||
| ? | BF4975 | WASHER, BELLEVILLE (2)/(3) | 1 | ||||
| ? | BF4976 | NUT - M16 X 1.50 (2)/(3) | 1 | ||||
| ? | XA2097 | GUARD, FAN | 1 | ||||
| ? | BF4977 | • SCREW - M5 X 0.8 X 25 (2)/(3) | 6 | ||||
| ? | XA2119 | • GROMMET | 6 | ||||
| ? | NOTE: (1) SUPPLIED WITH ENGINE. | ||||||
| ? | (2) NOT SERVICED SEPARATELY. | ||||||
| ? | (3) INCLUDED IN XA3306 SMALL GOODS PACKAGE. | ||||||
| ? | (4) ALSO INCLUDED IN XA2107 ANTI-DRIVE END HOUSING. | ||||||
| ? | (5) ALSO INCLUDED IN XA2105 DRIVE END STATOR & | ||||||
| ? | XA2106 ANTI-DRIVE END STATOR. |
