Содержание Dump Trucks Komatsu AFE50-GC 830E S/N GAE2170 & GAE2173 & GAE2175 & GAE2177 GLIDER KIT(AFE50-GC)

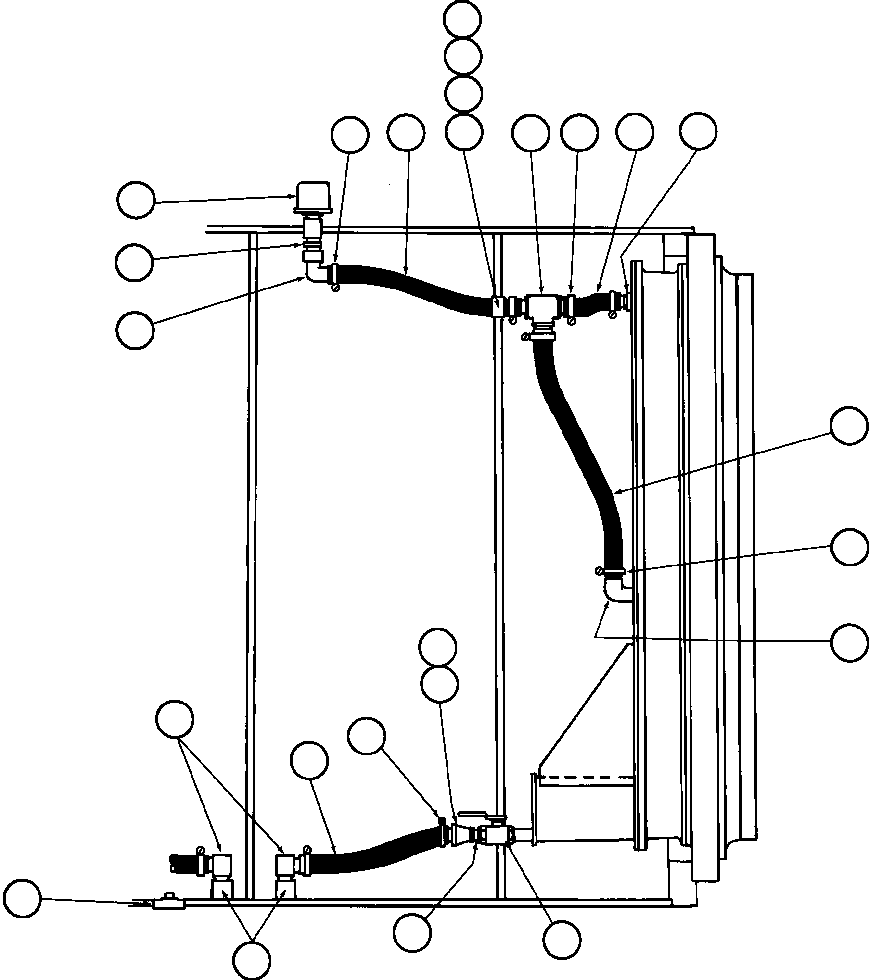

DRIVE WHEEL PIPING(060 : 40323)
Номер на схеме Каталожный номер Название Количество Детали
? PB4928 BREATHER 2
? VE0934 • ELEMENT 2
? WA2344 FITTING, PIPE 2
? WA3480 ELBOW - 90 DEG (PLASTIC) 2
? CD9707 CLAMP, WORM DRIVE 16
? TY8064 HOSE 2
? TF6924 CLAMP - 1 3/4" I.D. 2
? WA2220 STUD, WELD - 1/2" - 13NC X 1" 2
? C1540 LOCKWASHER - 1/2" 2
? C1523 NUT - 1/2" - 13NC 2
? (NOT USED THIS APPLICATION)
? WA4123 CONNECTOR, TEE 2
? TY8063 HOSE 2
? TY8065 HOSE 2
? WA3592 STEM, HOSE - 90 DEG 2
? EB5595 HOSE 2
? D1423 PLUG, PIPE 2
? C1034 PLUG, PIPE 1
? WA4681 FITTING, STRAIGHT 2
? DH3095 FITTING, PIPE 2
? PB2306 VALVE, SHUTOFF 2
? DC3418 NIPPLE, CLOSE 2
