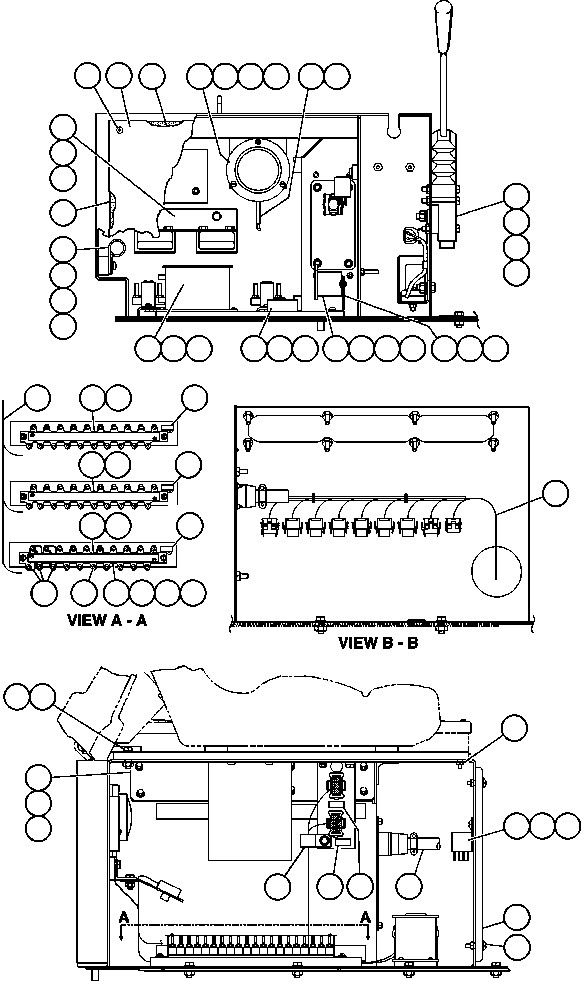

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | MM0595 | CAPSCREW - M8 X 1.25 X 30 | 2 | ||||
| ? | MM0470 | LOCKWASHER - M8 | 2 | ||||
| ? | MM0581 | CAPSCREW - M6 X 1.00 X 16 | 3 | ||||
| ? | TY7202 | BRACKET, RELAY | 1 | ||||
| ? | MM0355 | MACHINE SCREW - M6 X 1.00 X 8 | 2 | ||||
| ? | MM0206 | LOCKWASHER - M5 (INTERNAL TOOTH) | 2 | ||||
| ? | WA3597 | CAPSCREW - 5/16" - 18NC X 2 1/4" | 2 | ||||
| ? | PB4767 | RELAY | 1 | ||||
| ? | MM0347 | MACHINE SCREW - M5 X 0.8 X 8 | 1 | ||||
| ? | SM2174 | COVER, FRONT | 1 | ||||
| ? | PB8658 | SCREW, PANEL - M6 X 1.00 | 6 | ||||
| ? | WB2322 | PLATE, NAME - R/P230 | 1 | ||||
| ? | (NOT USED THIS APPLICATION) | ||||||
| ? | WB2323 | PLATE, NAME - R/P 231 | 1 | ||||
| ? | TR9441 | CLAMP, VINYL - 1 1/4" I.D. | 2 | ||||
| ? | EH7497 | HARNESS, BUDDY SEAT AREA | 1 | ||||
| ? | WB2326 | STRIP, CIRCUIT I.D. | 1 | ||||
| ? | VM2951 | SCREW, SELF-TAPPING - #6 - 32NC X 5/16" | 6 | ||||
| ? | WB2321 | PLATE, NAME - TB13 | 1 | ||||
| ? | TZ7317 | PLATE, NAME - TB12 | 1 | ||||
| ? | TZ7316 | PLATE, NAME - TB11 | 1 | ||||
| ? | WB2325 | STRIP, CIRCUIT I.D. | 1 | ||||
| ? | WB2324 | STRIP, CIRCUIT I.D. | 1 | ||||
| ? | VS8193 | BOARD, TERMINAL | 3 | ||||
| ? | TG1929 | MACHINE SCREW - #10 - 24NC X 1/2" | 6 | ||||
| ? | DC3101 | LOCKWASHER - #10 - 24NC X 3/8" | 11 | ||||
| ? | VC5344 | FLAT WASHER - #10 | 6 | ||||
| ? | WA3367 | NUT ASSEMBLY | 60 | ||||
| ? | EB7418 | BUS BAR | 3 | ||||
| ? | MM0027 | CAPSCREW - M6 X 1.00 X 25 | 8 | ||||
| ? | MM0469 | LOCKWASHER - M6 | 8 | ||||
| ? | MM0207 | LOCKWASHER - M6 (INTERNAL TOOTH) | 2 | ||||
| ? | DL6702 | CONTACTOR | 1 | ||||
| ? | DF0017 | NUT - #10 - 24NC | 2 | ||||
| ? | SC4174 | LOCKWASHER - 5/16" | 2 | ||||
| ? | TD1684 | NUT - 5/16" - 18NC | 2 | ||||
| ? | TR9441 | CLAMP, VINYL - 1 1/4" I.D. | 2 | ||||
| ? | MM0349 | MACHINE SCREW - M5 X 0.8 X 12 | 2 | ||||
| ? | DC3584 | LOCKWASHER - 1/4" | 2 | ||||
| ? | SP8417 | FLAT WASHER - 1/4" | 2 | ||||
| ? | SM4374 | PLATE, CONNECTOR | 1 | ||||
| ? | MM0002 | CAPSCREW - M8 X 1.25 X 12 | 2 | ||||
| ? | MM0208 | LOCKWASHER - M8 (INTERNAL TOOTH) | 2 | ||||
| ? | FB5170 | TAIL LIGHT RESISTOR DIODE ASSEMBLY | 1 | ||||
| ? | AK7557 | • RESISTOR/DIODE UNIT - 24 V | 2 | ||||
| ? | C5747 | • CAPSCREW - 5/16" - 18NC X 3/4" | 4 | ||||
| ? | C1538 | • LOCKWASHER - 5/16" | 4 | ||||
| ? | C1520 | • NUT - 5/16" - 18NC | 4 | ||||
| ? | TS0753 | • BRACKET | 1 | ||||
| ? | SM2219 | SEAL STRIP | 2 | ||||
| ? | PC0337 | TIMER - 24V | 1 | ||||
| ? | MM0341 | MACHINE SCREW - M4 X 0.7 X 10 | 4 | ||||
| ? | MM0205 | LOCKWASHER - M4 (INTERNAL TOOTH) | 4 | ||||
| ? | PB6963 | TIMER | 1 | ||||
| ? | MM0352 | MACHINE SCREW - M5 X 0.8 X 25 | 1 | ||||
| ? | SM2220 | SEAL STRIP | 2 | ||||
| ? | VS0035 | LIGHT, DOME | 1 | ||||
| ? | SR6747 | • BULB | 1 | ||||
| ? | VF2231 | MACHINE SCREW - #10 - 24NC X 3/8" | 5 | ||||
| ? | DL4172 | SLEEVE, INSULATING | 1 | ||||
| ? | SF9896 | KNIFE, DISCONNECT - 14-16 AWG | 1 | ||||
| ? | PB6893 | VALVE, CONTROL REMOTE | 1 | ||||
| ? | NOTE: NS = NOT SHOWN | ||||||
| ? | TS0299 | RESISTOR | 2 | ||||
| ? | TY7846 | HOUSING, RESISTOR | 1 | ||||
| ? | TZ0951 | HOUSING, RESISTOR (LEVEL) | 1 |
