Содержание Dump Trucks Komatsu AFE50-BJ 830E S/N A30722 - A30726 PASMINCO CENTURY ZINC(AFE50-BJ)

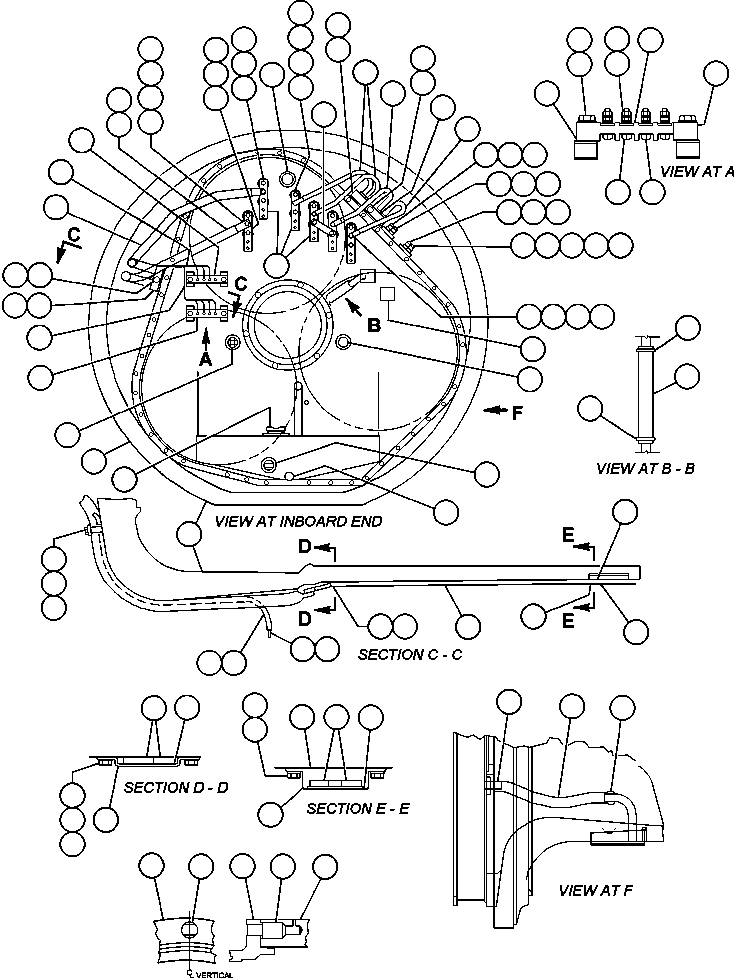

MOTORIZED WHEEL - 787FS11 (PB9734)(542 : 64143A)
Номер на схеме Каталожный номер Название Количество Детали
? PB9734 MOTORIZED WHEEL 1
? BF1008 FRAME ASSEMBLY 1
? VE6081 TUBE, W/FITTINGS 1
? VE4477 NUT 2
? VE4478 SLEEVE - 3/8" 2
? VE6082 TUBE, W/FITTINGS 1
? VE4477 NUT 2
? VE4478 SLEEVE - 3/8" 2
? VE6083 TUBE, W/FITTINGS 1
? VE4477 NUT 2
? VE4478 SLEEVE - 3/8" 2
? VE6084 TUBE, W/FITTINGS 1
? VE4477 NUT 2
? VE4478 SLEEVE - 3/8" 2
? TC1234 BOLT, HEX HEAD - 3/8" - 16NC X 3/4" 10
? VE4687 LOCKWASHER - 3/8" 14
? VE6086 HOSE 1
? VE6087 HOSE 2
? VE0670 CLAMP, HOSE 6
? VE2836 CABLE & CLAMP 1
? BF2610 CABLE & CONNECTION STRAP 1
? VE4483 CLAMP 1
? VE3957 CABLE 1
? VE3179 CLEAT 2
? VE3180 CLAMP 2
? VE3181 BRACKET 2
? VE4487 CABLE & CONNECTION STRAP 2
? VJ1204 CLAMP 1
? VE4488 SLEEVE 4
? VE4489 CAPSCREW - 1/2" - 13NC X 1 1/4" 2
? VE4490 FLAT WASHER - 1/2" 2
? VE4491 CABLE & CONNECTION STRAP 2
? VE4492 INSULATION
? VE4739 CAPSCREW - 3/8" - 16NC X 1" 4
? VE4229 CABLE 1
? VS7492 ADHESIVE, RTV SILMATE
? VE6088 TUBING 1
? VE4361 TYRAP 3
? VE4484 PAD 1
? VS8408 PIN, LOCATING 1
? VE8378 CAP, OIL 1
? VJ6489 PLUG 2
? VS8047 PIPE PLUG 1
? VS8411 PLUG, MAGNETIC 1
? VE4512 PIPE CAP 1
? VE1272 TERMINAL BLOCK 2
? TV1918 CAPSCREW - 1/2" - 13NC X 1 3/4" 4
? VE4490 FLAT WASHER - 1/2" 8
? TV6025 CAPSCREW - 1/4" - 20NC X 1 1/2" 7
? VJ3550 LOCKWASHER 7
? DF3445 FLAT WASHER - 1/4" 7
? WA0396 NUT 14
? VE7202 FLAT WASHER - 1/4" 14
? VJ0969 CONNECTION STRAP 6
? VE4750 INSULATOR W/STUD 12
? TC1233 NUT
? VE4515 FLAT WASHER - 3/8"
? VE4739 CAPSCREW - 3/8" - 16NC X 1" 4
? VE4516 FLAT WASHER - 3/8" 8
? VE4687 LOCKWASHER - 3/8" 16
? VE3917 NUT, JAM - 3/8" 5
? VE4519 FLAT WASHER - 1/2" 2
? VE4520 NUT, JAM - 1/2" 1
? VE4699 LOCKWASHER - 1/2" 1
? VE4524 JUMPER 1
? BF1218 TYRAP 6
? VE4518 CAPSCREW - 1/2" - 13NC X 1 1/2" 2
? VE3919 PAD 1
? BF3862 BAFFLE, OIL 1
? BF1217 ELBOW - 45 DEG 1
? VE3915 VARNISH/GALLON
? VE6091 HUB, WHEEL 1
? VE6089 TUBE TORQUE 1
? VE4752 CEMENT
? NOTE: NS = NOT SHOWN
? BF2114 CLAMP, HOSE 2
? BF2113 COUPLING, OIL RETURN 1
? (SEE FOLLOWING PAGES FOR BALANCE OF PB9734
? MOTORIZED WHEEL MOTOR COMPONENT PARTS.)
