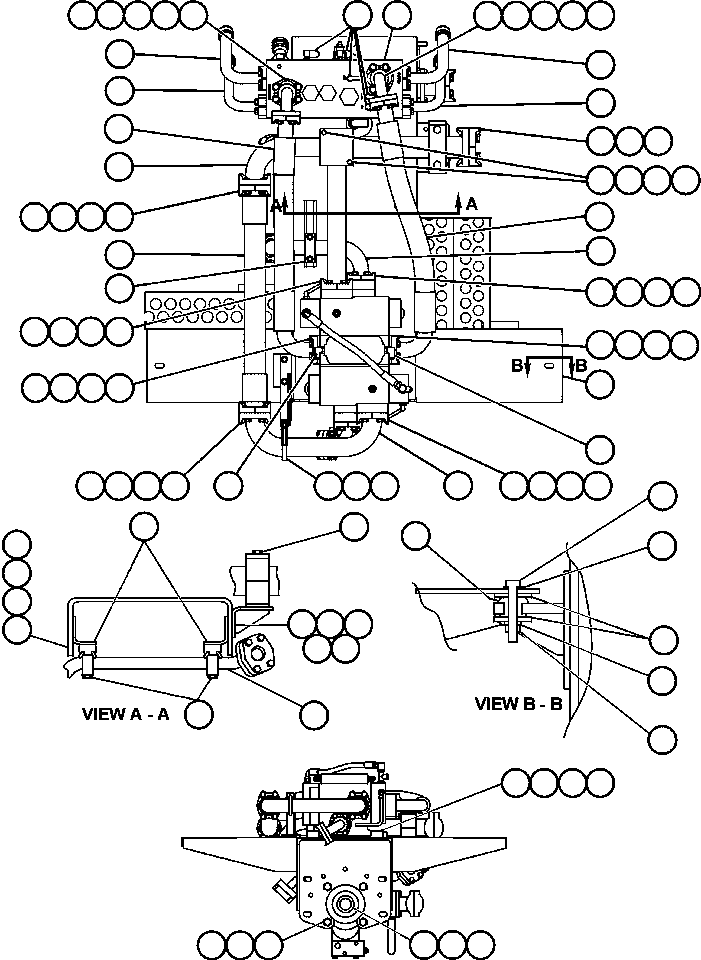

Номер на схеме |
Каталожный номер |
Название |
Количество |
Детали |
|
|
|
? |
PC0522 |
OVERCENTER MANIFOLD VALVE ASSEMBLY (SEE INDEX) |
1 |
|
55589 |
|
|
? |
TF3231 |
CLAMP, SPLIT |
14 |
|
|
|
|
? |
WA0187 |
O-RING |
7 |
|
|
|
|
? |
C1614 |
CAPSCREW - 1/2" - 13NC X 1 1/2" |
22 |
|
|
|
|
? |
C1540 |
LOCKWASHER - 1/2" |
48 |
|
|
|
|
? |
PB8318 |
ELBOW |
2 |
|
|
|
|
? |
PB6770 |
COUPLING, QUICK DISCONNECT (MALE) |
6 |
|
|
|
|
? |
TY9636 |
TUBE |
2 |
|
|
|
|
? |
EH3596 |
TUBE |
2 |
|
|
|
|
? |
TY8372 |
TUBE |
1 |
|
|
|
|
? |
HA6251 |
HOSE |
1 |
|
|
|
|
? |
VL9963 |
CLAMP, SPLIT |
2 |
|
|
|
|
? |
C1629 |
CAPSCREW - 5/8" - 11NC X 1 3/4" |
4 |
|
|
|
|
? |
C1541 |
LOCKWASHER - 5/8" |
4 |
|
|
|
|
? |
H9918 |
CAPSCREW - 3/8" - 16NC X 4 1/2" |
2 |
|
|
|
|
? |
WA0720 |
FLAT WASHER - 3/8" |
4 |
|
|
|
|
? |
C0312 |
LOCKWASHER - 3/8" |
2 |
|
|
|
|
? |
C1521 |
NUT - 3/8" - 16NC |
2 |
|
|
|
|
? |
VH6718 |
CLAMP, SPLIT |
8 |
|
|
|
|
? |
WA0232 |
O-RING |
4 |
|
|
|
|
? |
C1615 |
CAPSCREW - 1/2" - 13NC X 1 3/4" |
26 |
|
|
|
|
? |
HA7623 |
HOSE |
1 |
|
|
|
|
? |
TY9635 |
TUBE |
1 |
|
|
|
|
? |
HA6432 |
HOSE |
1 |
|
|
|
|
? |
WA4712 |
CLAMP |
1 |
|
|
|
|
? |
WB0508 |
FITTING, ELBOW - 90 DEG |
2 |
|
|
|
|
? |
EB6439 |
BRACKET |
1 |
|
|
|
|
? |
DC7524 |
CAPSCREW - 3/8" - 16NC X 7/8" |
2 |
|
|
|
|
? |
EJ2461 |
MOUNT, PUMP/VALVE |
1 |
|
|
|
|
? |
VG7000 |
MOUNT, CENTER BONDED |
3 |
|
|
|
|
? |
C1637 |
CAPSCREW - 5/8" - 11NC X 3 3/4" |
3 |
|
|
|
|
? |
WA0361 |
FLAT WASHER - 5/8" |
3 |
|
|
|
|
? |
TD5915 |
WASHER (SPECIAL) |
6 |
|
|
|
|
? |
C1541 |
LOCKWASHER - 5/8" |
3 |
|
|
|
|
? |
C1525 |
NUT - 5/8" - 11NC |
3 |
|
|
|
|
? |
EH1250 |
TUBE |
1 |
|
|
|
|
? |
WA4709 |
CLAMP |
2 |
|
|
|
|
? |
C1663 |
CAPSCREW - 7/8" - 9NC X 3" |
3 |
|
|
|
|
? |
WA0363 |
FLAT WASHER - 7/8" |
3 |
|
|
|
|
? |
C1543 |
LOCKWASHER - 7/8" |
3 |
|
|
|
|
? |
C1529 |
NUT - 7/8" - 9NC |
3 |
|
|
|
|
? |
PB7940 |
FLANGE, COMPANION |
1 |
|
|
|
|
? |
EB3976 |
WASHER (SPECIAL) |
1 |
|
|
|
|
? |
H0989 |
NUT, JAM - 1" - 14NF |
1 |
|
|
|
|
? |
C1648 |
CAPSCREW - 3/4" - 10NC X 3" |
4 |
|
|
|
|
? |
WA0362 |
FLAT WASHER - 3/4" |
4 |
|
|
|
|
? |
TH3747 |
NUT, LOCK - 3/4" - 10NC |
4 |
|
|
|
|
? |
ED6147 |
ANGLE |
2 |
|
|
|
|
? |
WA5686 |
CLAMP |
1 |
|
|
|
|
? |
EH1554 |
ANGLE |
1 |
|
|
|
|
? |
WA0360 |
FLAT WASHER - 1/2" |
8 |
|
|
|
|
? |
C1523 |
NUT - 1/2" - 13NC |
4 |
|
|
|
|
? |
EB6440 |
TUBE |
1 |
|
|
|
