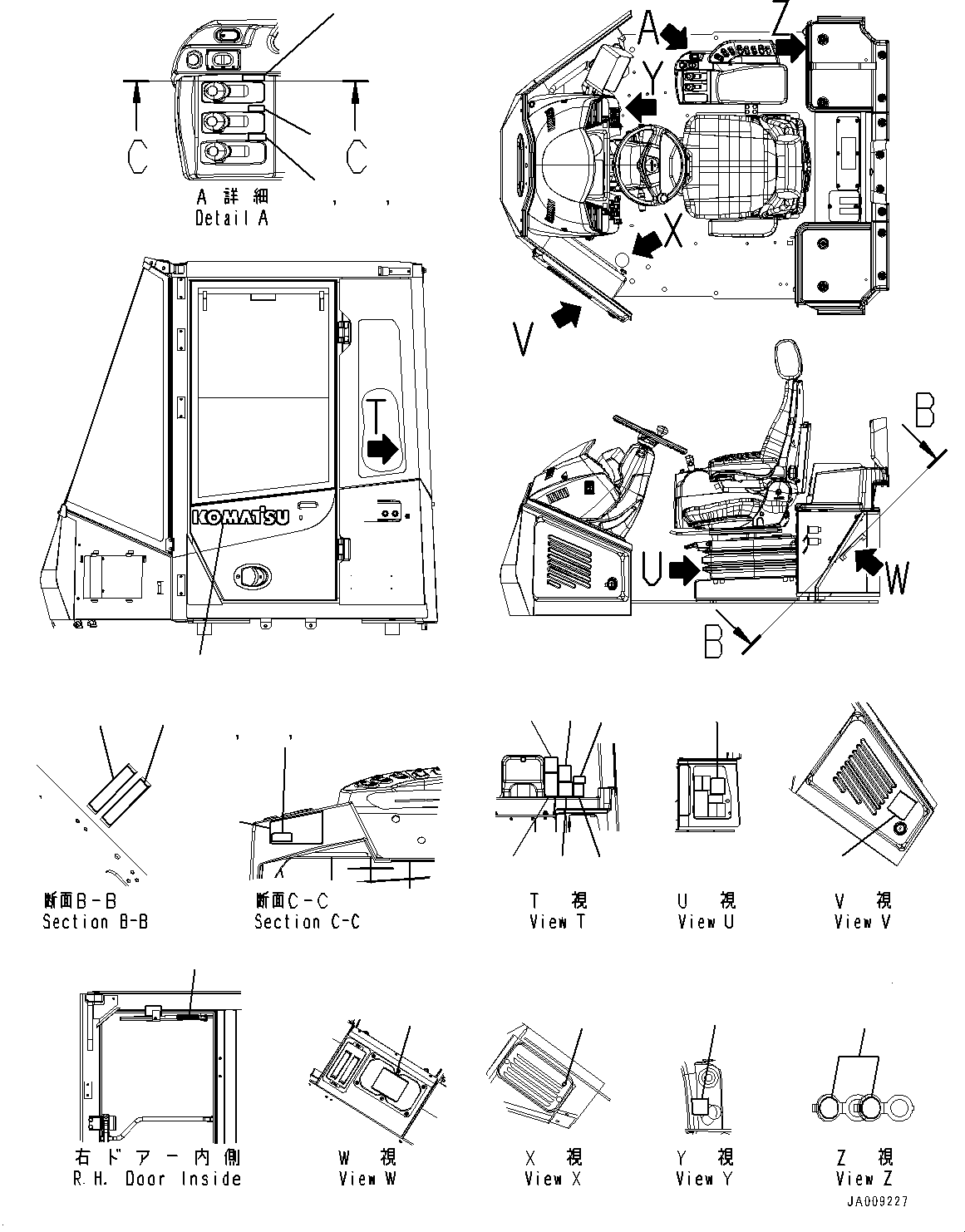

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 423-93-51251 | Decal Assembly | 1 | SN: 10001- KIT-FLAG: _- SCC: SERIALNO: 10001- |
|||
| ? | • Plate, Main Switch | 1 | SN: 10001- KIT-FLAG: _- SCC: C1 SERIALNO: 10001- |
||||
| ? | • Plate, Boom Control Lever | 1 | SN: 10001- KIT-FLAG: _- SCC: C1 SERIALNO: 10001- |
||||
| ? | • Plate, Bucket Control Lever | 1 | SN: 10001- KIT-FLAG: _- SCC: C1 SERIALNO: 10001- |
||||
| ? | • Plate, Relay | 1 | SN: 10001- KIT-FLAG: _- SCC: C1 SERIALNO: 10001- |
||||
| ? | • Plate, Fuse 1 | 1 | SN: 10001- KIT-FLAG: _- SCC: C1 SERIALNO: 10001- |
||||
| ? | • Plate, Fuse 2 | 1 | SN: 10001- KIT-FLAG: _- SCC: C1 SERIALNO: 10001- |
||||
| ? | • Plate, Air Conditioner Filter | 1 | SN: 10001- KIT-FLAG: _- SCC: C1 SERIALNO: 10001- |
||||
| ? | 09833-C0881 | Plate, Warning, Swinging and Traveling in Reverse | 1 | SN: 10001- KIT-FLAG: _- SCC: SERIALNO: 10001- |
|||
| ? | 09654-C0481 | Plate, Warning, Before Leaving Seat | 1 | SN: 10001- KIT-FLAG: _- SCC: SERIALNO: 10001- |
|||
| ? | 09802-D0880 | Plate, Warning, Before Operating and Traveling | 1 | SN: 10001- KIT-FLAG: _- SCC: SERIALNO: 10001- |
|||
| ? | 22U-00-21511 | Plate, 12volt Socket | 2 | SN: 10001- KIT-FLAG: _- SCC: SERIALNO: 10001- |
|||
| ? | 09651-A0481 | Plate, Warning, Read Manual Before Operating | 1 | SN: 10001- KIT-FLAG: _- SCC: SERIALNO: 10001- |
|||
| ? | 09801-C0481 | Plate, Danger, High Voltage Hazard | 1 | SN: 10001- KIT-FLAG: _- SCC: SERIALNO: 10001- |
|||
| ? | 09845-00480 | Plate, Caution, Blast Site | 1 | SN: 10001- KIT-FLAG: _- SCC: SERIALNO: 10001- |
|||
| ? | 09693-00450 | Emblem, KOMATSU | 2 | SN: 10001- KIT-FLAG: _- SCC: SERIALNO: 10001- |
|||
| ? | 423-93-51261 | Plate | 1 | SN: 10001- KIT-FLAG: _- SCC: SERIALNO: 10001- |
|||
| ? | • Plate, Log Grapple Control Lever | 1 | SN: 10001- KIT-FLAG: _- SCC: C1 SERIALNO: 10001- |
||||
| ? | • Plate, Angle Blade Control Lever | 1 | SN: 10001- KIT-FLAG: _- SCC: C1 SERIALNO: 10001- |
||||
| ? | • Plate, Multi Purpose Bucket Control Lever | 1 | SN: 10001- KIT-FLAG: _- SCC: C1 SERIALNO: 10001- |
||||
| ? | 423-93-51272 | Plate, Multi-function Mono Lever | 1 | SN: 10100- KIT-FLAG: _- SCC: SERIALNO: 10100- |
|||
| ? | 423-93-51271 | Plate, Multi-function Mono Lever | 1 | SN: 10001-10099 KIT-FLAG: _- SCC: A2 SERIALNO: 10001-10099 |
|||
| ? | • Plate, Boom and Bucket Control Lever | 1 | SN: 10100- KIT-FLAG: _- SCC: C1 SERIALNO: 10100- |
||||
| ? | • Plate, Log Grapple Control Lever | 1 | SN: 10001-10099 KIT-FLAG: _- SCC: C1 SERIALNO: 10001-10099 |
||||
| ? | • Plate, Log Grapple Control Lever | 1 | SN: 10100- KIT-FLAG: _- SCC: C1 SERIALNO: 10100- |
||||
| ? | • Plate, Angle Blade Control Lever | 1 | SN: 10001-10099 KIT-FLAG: _- SCC: C1 SERIALNO: 10001-10099 |
||||
| ? | • Plate, Angle Blade Control Lever | 1 | SN: 10100- KIT-FLAG: _- SCC: C1 SERIALNO: 10100- |
||||
| ? | • Plate, Multi Purpose Bucket Control Lever | 1 | SN: 10001-10099 KIT-FLAG: _- SCC: C1 SERIALNO: 10001-10099 |
||||
| ? | • Plate, Multi Purpose Bucket Control Lever | 1 | SN: 10100- KIT-FLAG: _- SCC: C1 SERIALNO: 10100- |
||||
| ? | Plate, Noise Level, for EU | 1 | SN: 10001- KIT-FLAG: _- SCC: C1 SERIALNO: 10001- |
||||
| ? | Plate, Noise Level, for EU | 1 | SN: 10001- KIT-FLAG: _- SCC: C1 SERIALNO: 10001- |
||||
| ? | 09659-A0641 | Plate, Warning, Explosion Hazard | 1 | SN: 10001- KIT-FLAG: _- SCC: SERIALNO: 10001- |
