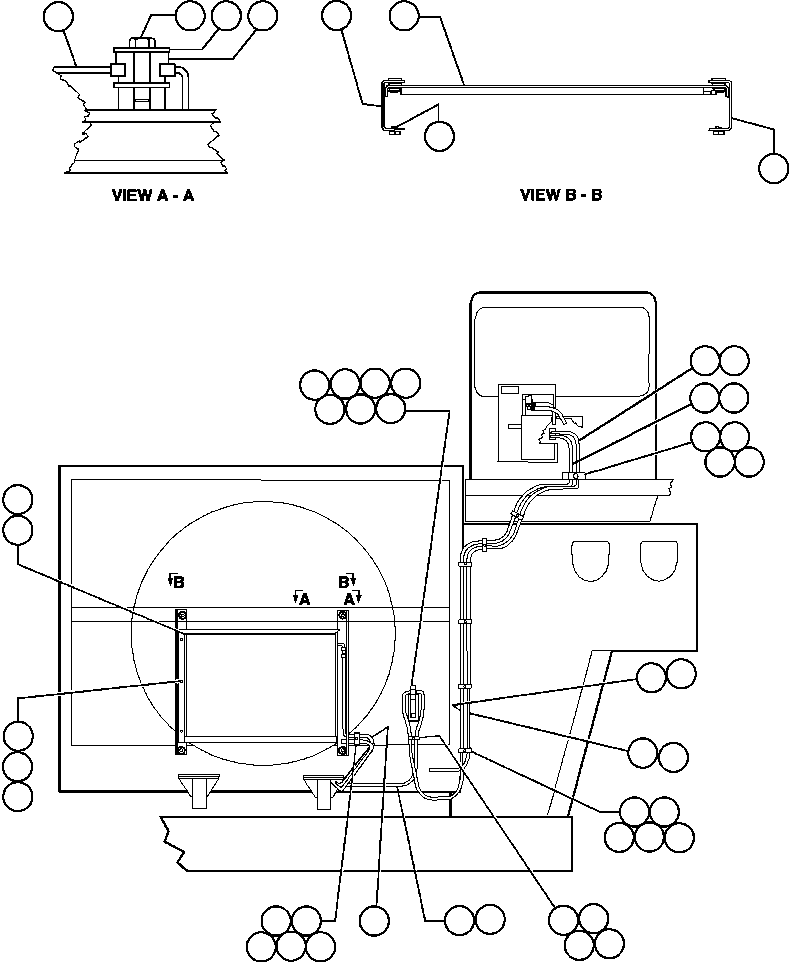

| Наименование | Страница | Код страницы |
|---|---|---|
| HEATER PIPING & INSTL | 150 | 55060 |
| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | PB9510 | CONDENSER | 1 | ||||
| ? | EF3539 | MOUNT, CONDENSER | 1 | ||||
| ? | TG5720 | CAPSCREW - 3/8" - 16NC X 1" | 6 | ||||
| ? | TC1232 | FLAT WASHER - 3/8" | 18 | ||||
| ? | TG9225 | LOCKNUT - 3/8" - 16NC | 8 | ||||
| ? | HA7185 | HOSE | 1 | ||||
| ? | PB8689 | RECEIVER DRIER | 1 | ||||
| ? | PB2216 | BRACKET, DRIER | 1 | ||||
| ? | PB7620 | SWITCH, PRESSURE | 1 | ||||
| ? | PB7619 | ADAPTOR | 1 | ||||
| ? | WA0192 | WELD STUD - 1/4" - 20NC | 2 | ||||
| ? | C5774 | LOCKWASHER - 1/4" | 2 | ||||
| ? | C5780 | NUT - 1/4" - 20NC | 2 | ||||
| ? | SM2489 | BLOCK, JUNCTION - REFRIGERANT (SEE FIG 55060) | 1 | 55060 | |||
| ? | HA7114 | HOSE | 1 | ||||
| ? | WA1731 | O-RING | 4 | ||||
| ? | HA7183 | HOSE | 1 | ||||
| ? | WA1733 | O-RING | 4 | ||||
| ? | TF6925 | CLAMP | 9 | ||||
| ? | VN2997 | WELD STUD - 3/8" - 16NC X 1 1/4" | 9 | ||||
| ? | WA0720 | FLAT WASHER - 3/8" | 18 | ||||
| ? | C1521 | NUT - 3/8" - 16NC | 8 | ||||
| ? | VN9913 | CLAMP | 6 | ||||
| ? | HA7112 | HOSE | 1 | ||||
| ? | 892124C1 | SPACER | 1 | ||||
| ? | C1604 | CAPSCREW - 3/8" - 16NC X 1 1/2" | 1 | ||||
| ? | TG2568 | CLAMP | 3 | ||||
| ? | C1616 | CAPSCREW - 1/2" - 13NC X 2" | 4 | ||||
| ? | DA0557 | WASHER | 8 | ||||
| ? | VY9850 | MOUNT, RUBBER | 4 | ||||
| ? | EF4274 | CHANNEL - R.H. | 1 | ||||
| ? | VN9027 | CAPSCREW - 1/2" - 13NC X 7/8" | 4 | ||||
| ? | EF4927 | CHANNEL - L.H. | 1 | ||||
| ? | HA7191 | HOSE | 1 | ||||
| ? | WA1733 | O-RING | 1 | ||||
| ? | HA7190 | HOSE | 1 | ||||
| ? | WA1731 | O-RING | 1 | ||||
| ? | MM0057 | CAPSCREW - M8 X 1.25 X 60 | 1 | ||||
| ? | MM0460 | FLAT WASHER - M8 | 1 | ||||
| ? | MM0470 | LOCKWASHER - M8 | 1 | ||||
| ? | EF6874 | HARNESS - AC/RECEIVER | 1 |
