Содержание Dump Trucks Komatsu AFE47-W 730E S/N 32806-32807 & 32817-32819 & 32821 & 32823 & 32834 ISCOR(AFE47-W)

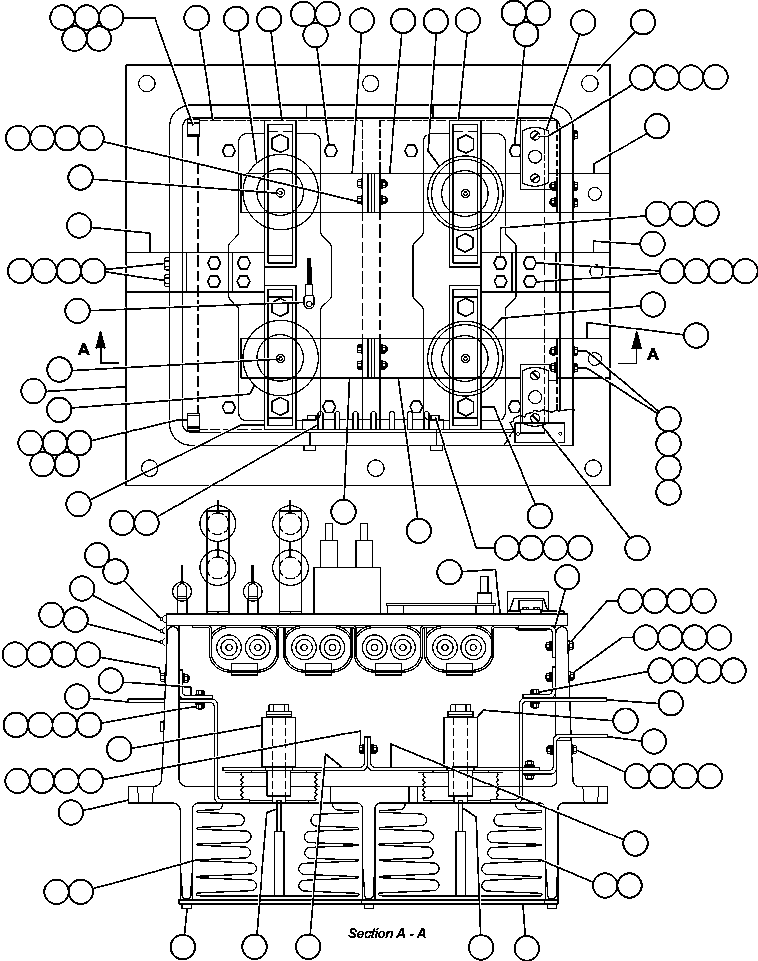

PANEL - 17FM467D1 (MFSE) (PB8837)(436 : 64073)
Наименование Страница Код страницы
PANEL - 41C663955G2 (MFSE) (VE4910) 440 64074

Номер на схеме Каталожный номер Название Количество Детали
? PB8837 PANEL 1
? VE4900 PANEL BOX 1
? VE4901 HEAT SINK 2
? TR1306 BOLT, HEX HEAD - 1/4" - 20, 1" LONG 12
? VE7202 WASHER - 1/4" (NARROW)
? DC3584 LOCKWASHER - 1/4"
? VE4902 NUT, HEX - 1/4"- 20
? VE4903 BUS BAR 2
? VE0300 BUS BAR - 6.15" DEVELOPED LENGTH 2
? SH7597 BOLT, HEX HEAD - 1/4" - 20, 1/2" LONG 4
? C5746 BOLT, HEX HEAD - 1/4" - 20, 3/4" LONG 12
? VE0301 BUS BAR - 4.90" DEVELOPED LENGTH 2
? VE0302 BUS BAR - 6.15" DEVELOPED LENGTH 2
? VE0297 BUS BAR WITH SCREWS 2
? VS7514 TERMINAL BOARD, 6 POLE 1
? VE4904 INDICATING PLATE 1
? VE4905 SCREW, SL HEX HEAD - #10-32, 1 1/4" LONG 6
? VS6662 WASHER - #10 (NARROW)
? DC3101 LOCKWASHER - #10
? SF2755 NUT, HEX - #10-32 8
? VE5098 SUPPORT 2
? VE4382 RECEPTACLE, LATCHING, STN STL 2
? VE4383 SCREW, SL FLAT HEAD - #4-40, 1/2" LONG 4
? VE4907 WASHER - #4 4
? VE4908 LOCKWASHER - #4 4
? VE4909 NUT, HEX - #4-40 4
? VE0039 DIODE 2
? VE4910 PANEL ASSEMBLY (SEE INDEX) 1 64074
? VE4911 HINGE 1
? VE4912 SCREW, SL PAN HEAD - #8, 5/8" LONG 5
? VE4913 SCREW, SL PAN HEAD - #8, 3/4" LONG 5
? VE0040 RECTIFIER 2
? VE4914 CLAMP 4
? VE4389 SHIELD, INSULATION 1
? VE4915 SCREW, SL FLAT HEAD - #8-18, 1/2" LONG 9
? VP9525 ROLL PIN, 1/8" DIAMETER - 1/2" LONG 4
? VE4916 SCREW, SL HEX HEAD - #10-32, 1/2" LONG 6
? VE4917 CABLE CLAMP - 7/16" ID 1
? VE4918 CABLE CLAMP - 5/16" ID 1
? VE4921 SCREW, SL HEX HEAD - #10-32, 1" LONG 2
? VE4604 WASHER - #8
? VE6320 BOLT, HEX HEAD - 1/4" - 20, 1 1/8" LONG 4
? BF0932 SENSOR, THERMISTOR - 100,000 OHM 1
? NOTE: NS = NOT SHOWN
? VE6321 CABLE CLAMP - 3/16" ID 1
? VE6322 CABLE CLAMP - 1/4" ID 1
? VE6323 CABLE CLAMP - 9/16" ID 2
