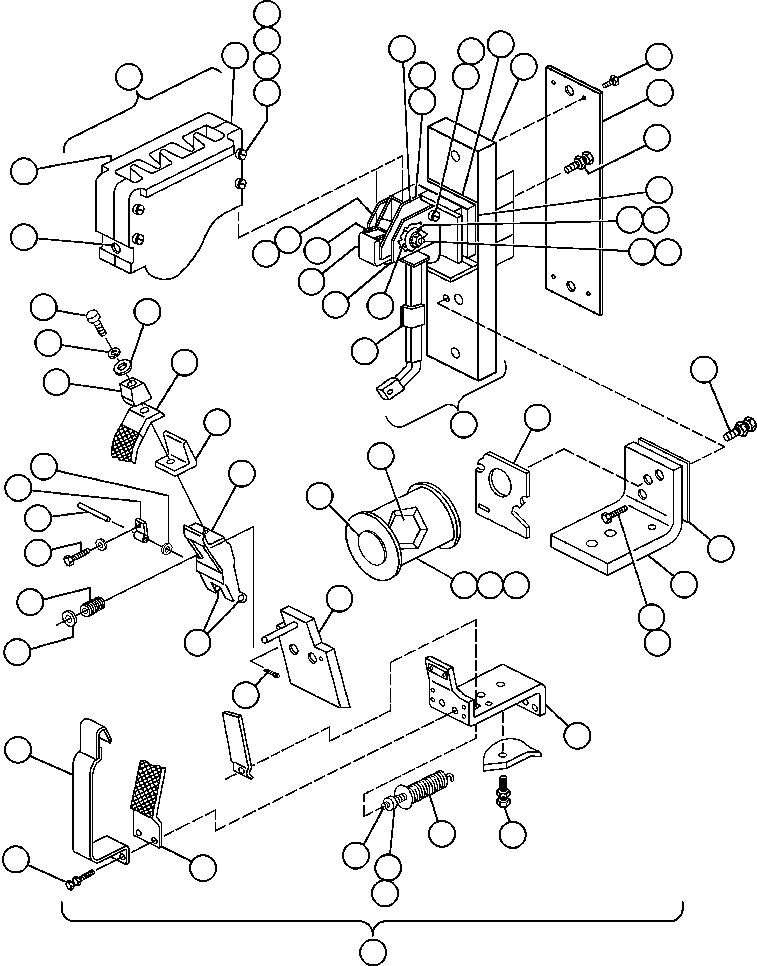

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | TV3419 | CONTACTOR | 1 | ||||
| ? | VS8893 | BASE | 1 | ||||
| ? | VS9207 | SCREW WITH LOCKWASHER - #8-36, 1/2" LONG | 1 | ||||
| ? | VS8939 | FRAME, MAGNET | 1 | ||||
| ? | VS9318 | STOP | 1 | ||||
| ? | C5746 | SCREW - 1/4"-20, 3/4" LONG | 2 | ||||
| ? | C5774 | • LOCKWASHER - 1/4" | 2 | ||||
| ? | VE5759 | SPRING WITH PLUG | 1 | ||||
| ? | SD4235 | LOCKWASHER - 1/4" (INTERNAL TOOTH) | 1 | ||||
| ? | SF2755 | NUT, HEX - #10-32 | 2 | ||||
| ? | VS9034 | CALIBRATING SCREW - #10-32, 2 7/16" LONG | 1 | ||||
| ? | BF1890 | ARMATURE ASSEMBLY | 1 | ||||
| ? | R3869 | SCREW - 5/16"-18, 5/8" LONG | 2 | ||||
| ? | C1538 | • LOCKWASHER - 5/16" | 2 | ||||
| ? | VS8971 | HORN WITH SPRING | 1 | ||||
| ? | VM0276 | SHUNT, FLEXIBLE | 1 | ||||
| ? | VS9172 | PIN - 5/16" DIAMETER, 2 7/8" LONG, STN STL | 1 | ||||
| ? | VS9171 | CLAMP | 2 | ||||
| ? | VS6881 | WASHER - 5/16", BRASS | 2 | ||||
| ? | VS9209 | SCREW WITH LOCKWASHER - #10-32, 1/2" LONG | 4 | ||||
| ? | VE5760 | ARM | 1 | ||||
| ? | VJ0819 | BUSHING, PLAIN - 0.3135" ID, BRONZE | 2 | ||||
| ? | VM0252 | SPRING | 1 | ||||
| ? | VE5761 | COTTER PIN - 3/32" DIAMETER, 1/2" LONG | 1 | ||||
| ? | VS9175 | SEAT, SPRING | 1 | ||||
| ? | VM0228 | ARCING HORN | 1 | ||||
| ? | VJ7860 | SCREW, HEX SOC HD - 5/16" - 18, 1 1/4" LONG | 2 | ||||
| ? | 120386 | WASHER - 5/16" (NARROW) | 6 | ||||
| ? | VE4696 | LOCKWASHER - 5/16" | 2 | ||||
| ? | VS9285 | CONTACTOR TIP | 2 | ||||
| ? | VS9173 | ARCING HORN | 1 | ||||
| ? | VM0293 | BLOWOUT COIL WITH STATIONARY CONTACT SUPPORT | 1 | ||||
| ? | TR8320 | SCREW, SL FIL HD - #10-32, 1/2" LONG | 2 | ||||
| ? | DC3101 | LOCKWASHER - #10 | 3 | ||||
| ? | VS9071 | POLE PIECE | 1 | ||||
| ? | VS9072 | POLE PIECE | 1 | ||||
| ? | VE5763 | SCREW, SL FIL HD - #10-32, 3" LONG, BRASS | 1 | ||||
| ? | VS8897 | INSULATION TUBE - 0.546" LONG | 2 | ||||
| ? | VS8897 | INSULATION TUBE - 0.546" LONG | 1 | ||||
| ? | VS8898 | INSULATION TUBE - 2.230" LONG | 1 | ||||
| ? | VS8903 | SHIELD - 0.060" THICK | 2 | ||||
| ? | VE5764 | INSULATION TUBE - 2.227" LONG | 1 | ||||
| ? | (NOT USED THIS APPLICATION) | 2 | |||||
| ? | VS8895 | CORE, BLOWOUT COIL | 1 | ||||
| ? | VS8894 | CORE, MAGNET | 1 | ||||
| ? | VS8899 | INSULATION - 2 1/4" LONG | 1 | ||||
| ? | H6820 | SCREW - 5/16" - 18, 1 1/4" LONG | 4 | ||||
| ? | C1538 | • LOCKWASHER - 5/16" | 4 | ||||
| ? | C1603 | SCREW - 3/8" - 16, 1 1/4" LONG | 1 | ||||
| ? | C0312 | • LOCKWASHER - 3/8" | 1 | ||||
| ? | VE5765 | SCREW, SL RD HEAD - #8-15, 1 1/4" LONG | 1 | ||||
| ? | VS9049 | SHIELD | 1 | ||||
| ? | VE5766 | SCREW, SL FL HEAD - #6-20, 3/8" LONG | 2 | ||||
| ? | VJ9158 | SCREW - #10-32, 3/8" LONG | 4 | ||||
| ? | H2648 | • LOCKWASHER - #10 | 4 | ||||
| ? | VS6662 | WASHER - #10 (NARROW) | 4 | ||||
| ? | VE4604 | WASHER - #8 | 1 | ||||
| ? | VE2248 | SHIM - 0.035" THICK | 1 | ||||
| ? | VE3288 | LOCKING PLATE | 1 | ||||
| ? | VE5767 | ARC CHUTE | 1 | ||||
| ? | VE5768 | SIDE, ARC CHUTE | 1 | ||||
| ? | VE5769 | SIDE, ARC CHUTE | 1 | ||||
| ? | VS8275 | PIN | 2 | ||||
| ? | VE5770 | SCREW, SL HEX HD - #10-32, 1/4" LONG | 4 | ||||
| ? | VE4600 | WASHER - #10 (NARROW) | 8 | ||||
| ? | VS6662 | LOCKWASHER - #10 | 4 | ||||
| ? | SF2755 | NUT, HEX - #10-32 | 4 | ||||
| ? | VM0186 | COIL, OPERATING | 1 | ||||
| ? | VE0252 | SPRING WASHER - 1.40 ID, ZINC PL | 1 |
