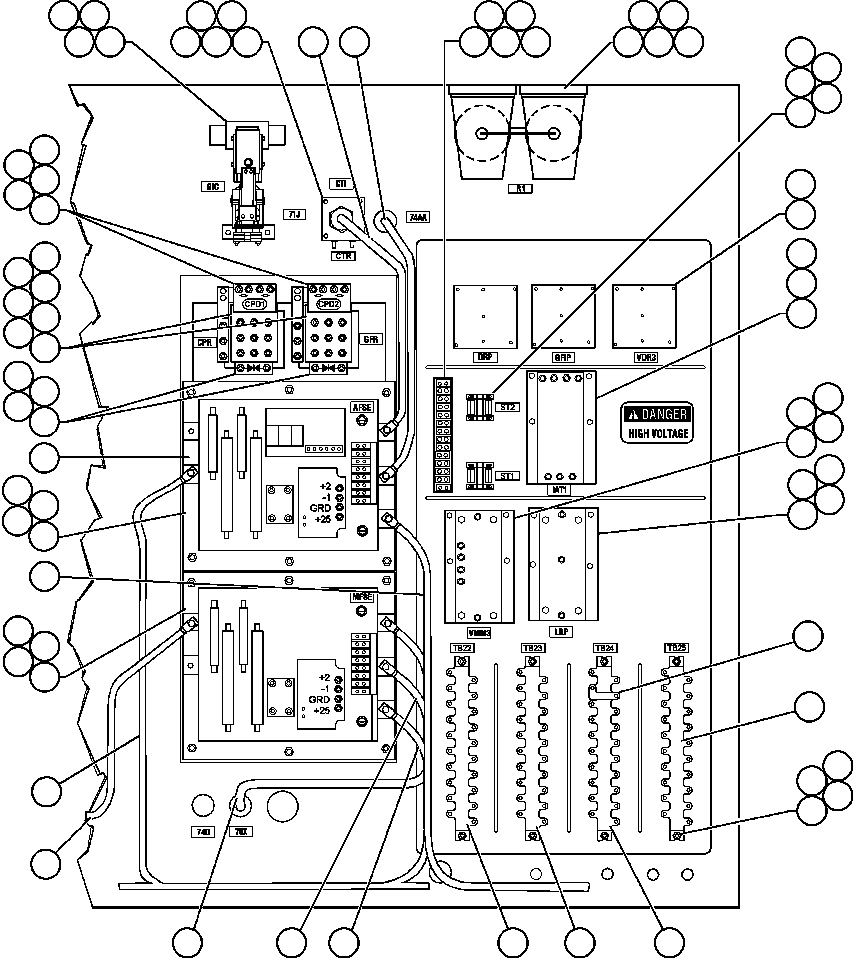

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | PB8838 | PANEL, STATIC EXCITER (ALTERNATOR FIELD) (SEE INDEX) | 1 | 64071A | |||
| ? | TR4436 | FLAT WASHER - 3/8" | 20 | ||||
| ? | TC1231 | LOCKWASHER - 3/8" | 20 | ||||
| ? | TC1233 | NUT - 3/8" - 16NC | 20 | ||||
| ? | ED6878 | GASKET | 1 | ||||
| ? | PB4255 | MODULE, SUPPRESSION | 2 | ||||
| ? | TG1929 | MACHINE SCREW - #10 - 24NC X 1/2" | 4 | ||||
| ? | SD4245 | LOCKWASHER - #10 (EXTERNAL TOOTH) | 4 | ||||
| ? | VC5344 | FLAT WASHER - #10 | 8 | ||||
| ? | DF0017 | NUT - #10 - 24NC | 8 | ||||
| ? | VG7043 | RELAY (SEE INDEX) | 2 | 64037 | |||
| ? | DL9148 | BAR, BUS | 4 | ||||
| ? | MM0469 | LOCKWASHER - M6 | 22 | ||||
| ? | MM0459 | FLAT WASHER - M6 | 32 | ||||
| ? | MM0176 | NUT - M6 X 1.00 | 20 | ||||
| ? | PB5587 | MODULAR | 2 | ||||
| ? | DC3101 | LOCKWASHER - #10 | 10 | ||||
| ? | SD5369 | MACHINE SCREW | 4 | ||||
| ? | PB5754 | SPACER | 4 | ||||
| ? | PB9512 | CONTACTOR ASSEMBLY | 1 | ||||
| ? | VS8196 | • CONTACTOR (GIC) (SEE INDEX) | 1 | 64127 | |||
| ? | VE3530 | • SENSOR, POSITION (SEE INDEX) | 1 | 64035 | |||
| ? | VW6069 | BOLT, INSULATED | 2 | ||||
| ? | VE2263 | BASE | 2 | ||||
| ? | VE2264 | SHIELD, INSULATOR | 2 | ||||
| ? | PB4262 | TRANSFORMER, CURRENT | 1 | ||||
| ? | MM0027 | CAPSCREW - M6 X 1.00 X 25 | 2 | ||||
| ? | EC2026 | HOUSING, CT RESISTOR | 1 | ||||
| ? | TK7659 | RESISTOR | 1 | ||||
| ? | CH2562 | CABLE - 71J (ALTERNATOR TO AFSE) | 1 | ||||
| ? | CH2550 | CABLE - 74AA (ALTERNATOR TO AFSE) | 1 | ||||
| ? | PB7591 | BLOCK, TERMINAL | 1 | ||||
| ? | VG6991 | MACHINE SCREW - #8 - 32NC X 1" | 2 | ||||
| ? | VM9910 | LOCKWASHER - #8 | 2 | ||||
| ? | TF6248 | FLAT WASHER - #8 | 2 | ||||
| ? | TV2179 | NUT - #8 - 32NC | 2 | ||||
| ? | TZ7543 | NAME PLATE - R1 | 1 | ||||
| ? | VE6119 | PANEL, RESISTOR (SEE INDEX) | 1 | 64096 | |||
| ? | MM0470 | LOCKWASHER - M8 | 2 | ||||
| ? | MM0460 | FLAT WASHER - M8 | 2 | ||||
| ? | MM0177 | NUT - M8 X 1.25 | 2 | ||||
| ? | PB5249 | TRANSFORMER | 2 | ||||
| ? | PB4252 | PANEL, 1S0 AMP | 1 | ||||
| ? | MM0378 | LOCKWASHER - M4 (EXTERNAL TOOTH) | 8 | ||||
| ? | MM0372 | NUT - M4 | 8 | ||||
| ? | VE6118 | PANEL (SEE INDEX) | 1 | 64067 | |||
| ? | VS6359 | PANEL | 1 | ||||
| ? | EB7418 | BAR, BUS | 1 | ||||
| ? | WB2343 | STRIP, CIRCUIT ID | 1 | ||||
| ? | PB5732 | BOARD, TERMINAL | 4 | ||||
| ? | MM0206 | LOCKWASHER - M5 (INTERNAL TOOTH) | 8 | ||||
| ? | MM0373 | NUT - M5 | 8 | ||||
| ? | WB2342 | STRIP, CIRCUIT ID | 1 | ||||
| ? | WB2340 | STRIP, CIRCUIT ID | 1 | ||||
| ? | WB2341 | STRIP, CIRCUIT ID | 1 | ||||
| ? | CH2577 | CABLE - 71K (MFSE PANEL TO S7 SHUNT) | 1 | ||||
| ? | CH2579 | CABLE - 7J13 (MFSE PANEL TO REVERSER) | 1 | ||||
| ? | CH2561 | CABLE - 75X (MFSE PANEL TO ALTERNATOR) | 1 | ||||
| ? | CH2578 | CABLE - 7J14 (MFSE PANEL TO REVERSER) | 1 | ||||
| ? | CH2576 | CABLE - 74F (AFSE PANEL TO S4 SHUNT) | 1 | ||||
| ? | PB8837 | PANEL, STATIC EXCITER (MOTOR FIELD) (SEE INDEX) | 1 | 64073 | |||
| ? | CH2575 | CABLE - 74E (AFSE PANEL TO S6 SHUNT) | 1 |
