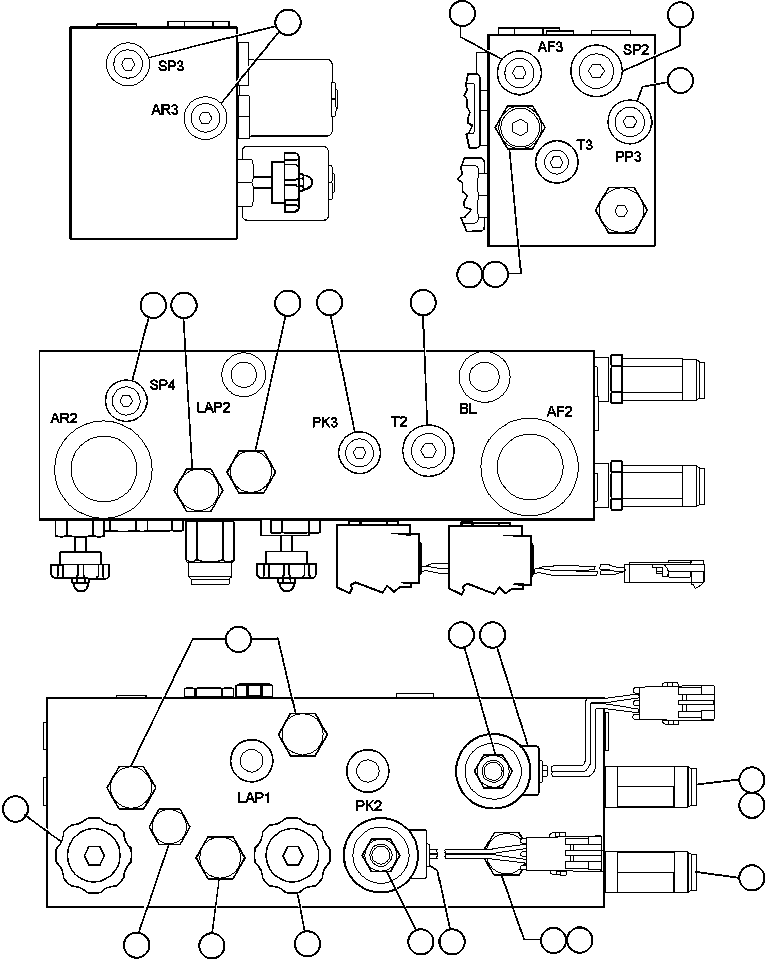

BRAKE MANIFOLD - TWO CIRCUIT (PC0080)(212 : 55346)
Номер на схеме Каталожный номер Название Количество Детали
? BF2839 VALVE, NEEDLE 2
? BF2864 • O-RING (1) 2
? BF2860 • O-RING (1) 2
? BF2863 • RING, BACK-UP (1) 4
? BF2840 VALVE, CHECK 3
? BF2860 • O-RING (2) 3
? BF2864 • O-RING (2) 3
? BF2865 • RING, BACK-UP (2) 3
? BF2842 VALVE, SOLENOID 2
? BF2860 • O-RING (3) 2
? BF2866 • O-RING (3) 2
? BF2864 • O-RING (3) 2
? BF2863 • RING, BACK-UP (3) 4
? BF2868 • RING, BACK-UP (3) 2
? BF2843 COIL - 24 VOLT 2
? BF4310 VALVE, PRESSURE REDUCTION (4) 1
? BF2851 DISC, ORIFICE 1
? BF4311 VALVE, PRESSURE REDUCTION (4) 1
? BF2850 DISC, ORIFICE 1
? BF4309 VALVE, PILOT (AUTOMATIC APPLY) 1
? BF2860 • O-RING (5) 1
? BF2866 • O-RING (5) 1
? BF2867 • O-RING (5) 1
? BF2864 • O-RING (5) 1
? BF2865 • RING, BACK-UP (5) 1
? BF2868 • RING, BACK-UP (5) 2
? BF2869 • RING, BACK-UP (5) 2
? BF2838 PLUG, CAVITY 1
? • O-RING (6) 1
? BF3260 PLUG, PORT 7
? BF2846 CARTRIDGE, LOAD SHUTTLE 1
? BF2860 • O-RING (3) 1
? BF2866 • O-RING (3) 1
? BF2864 • O-RING (3) 1
? BF2865 • RING, BACK-UP (3) 1
? BF2868 • RING, BACK-UP (3) 2
? BF4312 CARTRIDGE, HOT OIL (7) 1
? BF3261 PLUG, PORT 2
? BF2874 • O-RING 2
? BF2853 NOTE: (1) INCLUDED IN BF2853 SEAL KIT.
? BF2854 (2) INCLUDED IN BF2854 SEAL KIT.
? BF2856 (3) INCLUDED IN BF2856 SEAL KIT.
? BF4313 (4) INCLUDED IN BF4313 SEAL KIT.
? BF2855 (5) INCLUDED IN BF2855 SEAL KIT.
? BF2852 (6) INCLUDED IN BF2852 SEAL KIT.
? BF4314 (7) INCLUDED IN BF4314 SEAL KIT.

Dump Trucks Komatsu / AFE47-W 730E S/N 32806-32807 & 32817-32819 & 32821 & 32823 & 32834 ISCOR(AFE47-W) / BRAKE MANIFOLD - TWO CIRCUIT (PC0080)(212 : 55346)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
