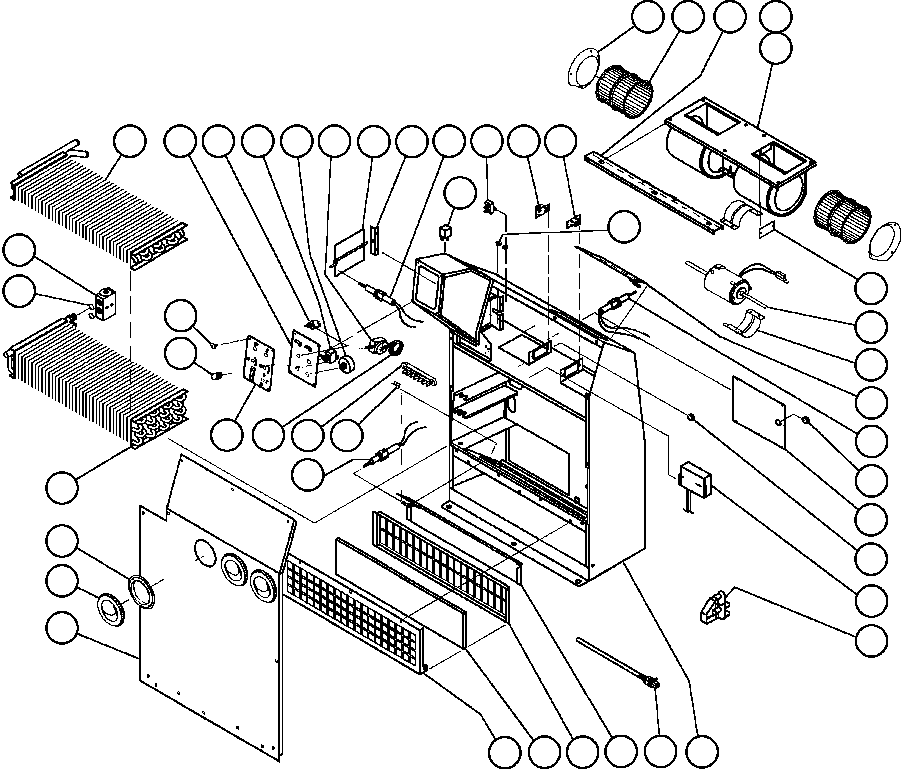

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | CASING (1) | 1 | |||||
| ? | BF2717 | COVER | 1 | ||||
| ? | BF2721 | LOUVER | 3 | ||||
| ? | PB8320 | ADAPTOR, LOUVER | 3 | ||||
| ? | SM2502 | GRILLE, FILTER | 1 | ||||
| ? | SM2520 | FILTER, AIR | 1 | ||||
| ? | SM2503 | HOLDER, FILTER | 1 | ||||
| ? | SM2506 | FLAPPER, FRESH AIR | 1 | ||||
| ? | BF4167 | COIL, EVAPORATOR | 1 | ||||
| ? | BF2732 | VALVE, BLOCK | 1 | ||||
| ? | BF2733 | O-RING - #8 | 2 | ||||
| ? | SM2516 | COIL, HEATER | 1 | ||||
| ? | BF2738 | PAN SCREW - M6 X 1 | 4 | ||||
| ? | KNOB (1) | 2 | |||||
| ? | BF4169 | OVERLAY | 1 | ||||
| ? | BF2718 | PLATE, CONTROL | 1 | ||||
| ? | BF2723 | SWITCH, BLOWER | 1 | ||||
| ? | BF2728 | SWITCH, TOGGLE | 3 | ||||
| ? | BF4168 | POTENTIOMETER | 1 | ||||
| ? | BF2724 | THERMOSTAT | 1 | ||||
| ? | BF2734 | HOSE | 1 | ||||
| ? | SM2517 | ACTUATOR | 3 | ||||
| ? | SM2512 | BRACKET, FLAPPER | 1 | ||||
| ? | BF2722 | BLOCK, JUNCTION | 1 | ||||
| ? | BF2736 | GROMMET | 2 | ||||
| ? | SM2509 | FLAPPER, BI-LEVEL | 1 | ||||
| ? | SM2510 | BRACKET, FLAPPER | 1 | ||||
| ? | BF2731 | BREAKER, CIRCUIT | 1 | ||||
| ? | BF2725 | RESISTOR - 12 VOLT | 1 | ||||
| ? | BF2726 | RESISTOR - 24 VOLT | 1 | ||||
| ? | SM2508 | FLAPPER, DEFROST | 1 | ||||
| ? | BF4170 | GROMMET | 2 | ||||
| ? | BF2719 | COVER, ELECTRICAL BOX | 1 | ||||
| ? | BF4166 | MOUNT, BLOWER | 1 | ||||
| ? | SM2515 | BLOWER ASSEMBLY | 1 | ||||
| ? | • HOUSING, BLOWER | 1 | |||||
| ? | VE7951 | • WHEEL, BLOWER | 2 | ||||
| ? | • VENTURI (1) | 2 | |||||
| ? | VE7950 | • MOTOR - 24 VOLT | 1 | ||||
| ? | • MOUNT, MOTOR (1) | 2 | |||||
| ? | • PLATE, COVER (1) | 1 | |||||
| ? | BF2727 | HARNESS, WIRING | 1 | ||||
| ? | BF4171 | RELAY | 1 | ||||
| ? | BF3920 | VALVE MODULE ASSEMBLY | 1 | ||||
| ? | BF3921 | MOTORIZED HEATER VALVE ASSEMBLY | 1 | ||||
| ? | NOTE: NS = NOT SHOWN | ||||||
| ? | BF4172 | WIRING, HARNESS | 1 | ||||
| ? | NOTE: (1) NOT SERVICED SEPARATELY. |
