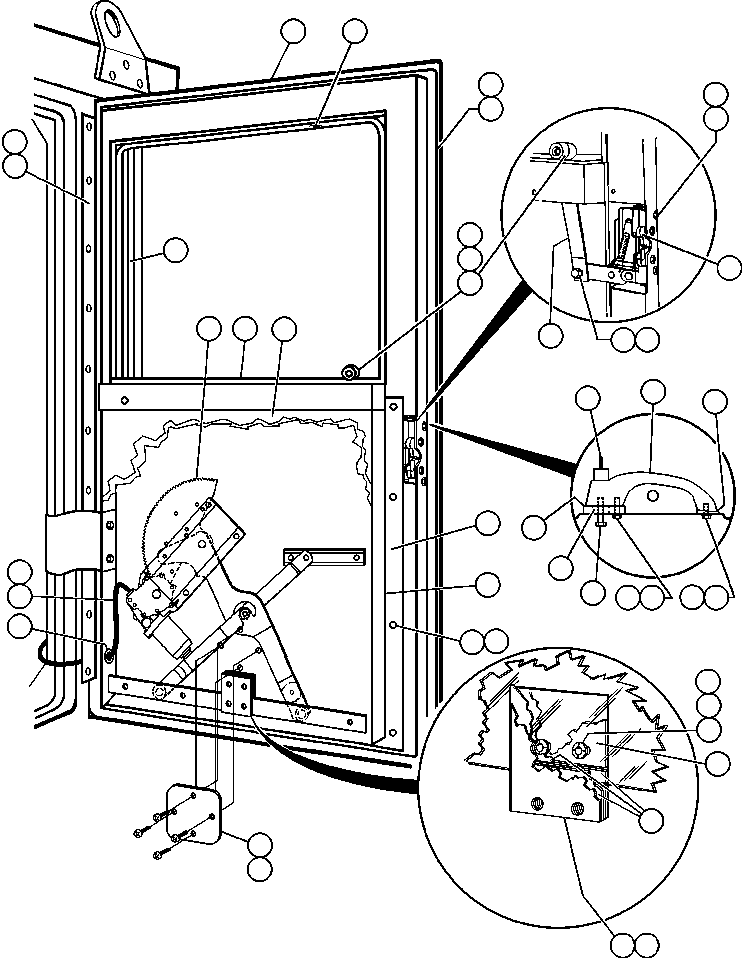

DOOR ASSM L.H. - SM2748 R.H. - SM2749(130 : 55240)
Номер на схеме Каталожный номер Название Количество Детали
? SM2744 PANEL ASSEMBLY - L.H. 1
? SM2745 PANEL ASSEMBLY - R.H. 1
? SM2740 • REGULATOR, POWER - L.H. 1
? SM2741 • REGULATOR, POWER - R.H. 1
? BF3137 • • MOTOR - R.H. 1
? BF4508 • • MOTOR - L.H. 1
? SM2738 • PANEL, INSIDE DOOR - L.H. 1
? SM2739 • PANEL, INSIDE DOOR - R.H. 1
? SM3010 • HARNESS 2
? SF9896 • DISCONNET, KNIFE 2
? SL9490 • GROMMET, RUBBER 1
? SM2294 • COVER, ACCESS 1
? SM2299 • BRACKET, WINDOW LIFT 1
? 31127R1 • CAPSCREW -M6 X 12 15
? SM2302 GASKET 2
? SM2300 BUSHING - MOUNTED IN GLASS 2
? SM2544 HINGE 2
? SM2271 DOOR - L.H. 1
? SM2298 DOOR - R.H. 1
? SM2264 KNOB 2
? SM2263 LEVER 1
? SM2274 LATCH, DOOR - R.H. 1
? SM2297 LATCH, DOOR - L.H. 1
? MM0583 CAPSCREW - M6 X 1.00 X 25 2
? MM0375 LOCKWASHER - M6 (EXTERNAL TOOTH) 17
? TC1234 CAPSCREW - 3/8" - 16NC X 3/4" 1
? TG9225 LOCKNUT - 3/8" - 16NC 1
? TD1809 CAPSCREW - 1/4" - 20NC X 3/4" 4
? SD4235 LOCKWASHER - 1/4" (EXTERNAL TOOTH) 4
? SM2354 SCREW - #10 1
? SM2355 LOCKNUT - #10 1
? SM2256 KEYS - DOOR HANDLE 1
? MM0581 CAPSCREW - M6 X 1.00 X 16 1
? SM2301 GASKET, OUTER - BEHIND GLASS 1
? SM2548 SEAL, DOOR - SIDES 2
? 2048889R1 TRIM, WINDOW FRAME
? SM2405 SEAL, LOWER WINDOW 1
? 31154R1 CAPSCREW - M8 X 12 (HINGE TO DOOR) 10
? 31045R1 BOLT - M6 X 16 2
? SM2255 HANDLE, DOOR 1
? SM2258 SPACER, HANDLE 1
? SM2257 SPACER, HANDLE 1
? VN2882 NUT, JAM 1
? TV6025 CAPSCREW - 1/4" - 20NC X 1 1/2" 1
? MM0469 LOCKWASHER - M6 3
? SM2402 SEAL, DOOR 1
? BF3296 SEAL, FELT WINDOW TRACT
